154 - International Harvester Cub Lo-Boy Tractor Hydraulic Lift - Cub 154 (S/N 22232 & Above) & Cub 185 Lo-Boy Tractors Parts Diagram

Cub Lo-Boy Tractor

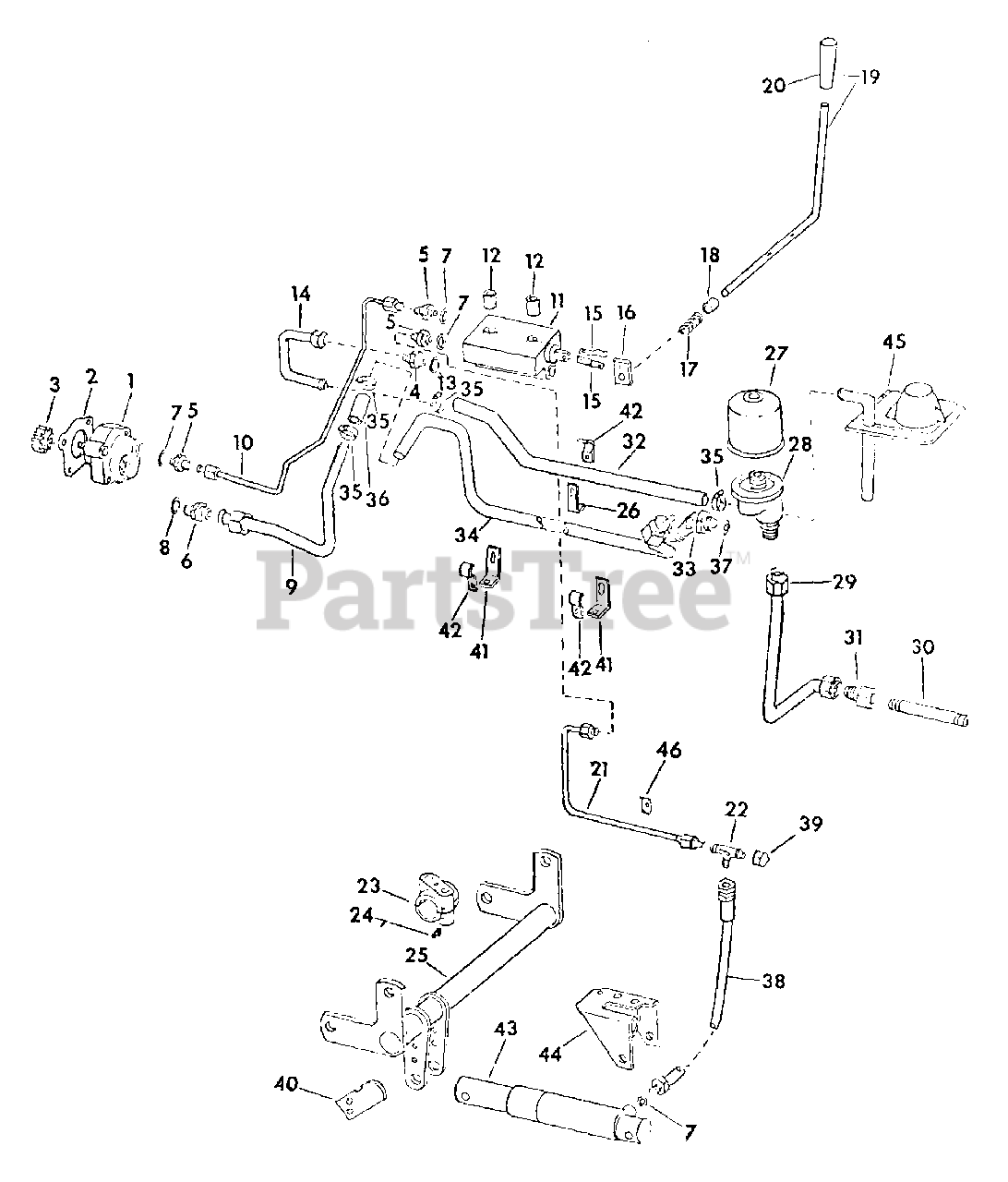

Hydraulic Lift - Cub 154 (S/N 22232 & Above) & Cub 185 Lo-Boy Tractors Parts Diagram

  • Title

1

Cub Cadet IH-547135-R91

PUMP ASSY, HYDRAULIC (WARNER MOTIVE)

Note: OPTIONAL W/ IH-544017-R91

$

$

Currently unavailable

Cub Cadet IH-544017-R91

PUMP ASSY, HYDRAULIC (CESSNA)

Note: OPTIONAL W/ IH-547135-R91

$

$

Currently unavailable

Cub Cadet IH-23683-R1

SCREW, 5/16 X 2-1/2 PLN H/SHD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 PLN LOCK

$

$

Currently unavailable

2

Cub Cadet IH-351677-R1

GASKET, PUMP

$

$

Not available

3

Cub Cadet IH-352038-R1

GEAR, PUMP DRIVE - 10T

$

$

Currently unavailable

Cub Cadet IH-114494

NUT, 3/8-24 HEX. JAM
(Superseded to 912-3001)

$7.49

$

In Stock, Qty 11

0

Cub Cadet IH-115549

WASHER, 3/8 INT-TOOTH LOCK

$

$

Not available

4

Cub Cadet IH-9410203

CONNECTOR, 3/4-16 37 DEG HYD FLARED TUBE SHORT SWIVEL

$

$

Currently unavailable

5

Cub Cadet IH-9410202

CONNECTOR, 9/16-18 37 DEG HYD FLARED TUBE SHORT SWIVEL
(Superseded to 927-3002)

$13.99

$

In Stock, only 2 left!

0

6

Cub Cadet IH-574479-R1

UNION, 7/8-14 C-Z 37 DEG HYD FLARED TUBE SHORT SWIVEL

$

$

Not available

7

Cub Cadet IH-364839-R1

O-RING, 3/8 OD TUBE
(Superseded to 721-3001)

$3.99

$

In Stock, only 4 left!

0

8

Cub Cadet IH-364885-R1

O-RING, 3/4 X 15/16 X 3/32
(Superseded to 921-3005)

$

$

Not available

9

Cub Cadet IH-544018-R1

TUBE ASSY, SUCTION SHORT

$

$

Currently unavailable

10

Cub Cadet IH-126472-C1

TUBE ASSY, PRESSURE LONG

Note: REPLACES IH-546314-R1

$

$

Currently unavailable

11

Cub Cadet IH-546545-R91

VALVE ASSY, CONTROL

Note: FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF CONTROL VALVE

$

$

Currently unavailable

Cub Cadet IH-379808

BOLT, 1/4 X 2-3/4 PLN TYPE 5

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 PLN LOCK

$

$

Currently unavailable

12

Cub Cadet IH-546546-R1

SPACER, VALVE
(Superseded to 750-0755)

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet IH-570828-R1

O-RING, 1/2 OD TUBE

$

$

Not available

14

Cub Cadet IH-546552-R1

TUBE ASSY, RETURN

$

$

Currently unavailable

15

Cub Cadet IH-546551-R1

BAR, HYDRAULIC VALVE OPERATING

$

$

Currently unavailable

Cub Cadet IH-103493

PIN, 3/16 X 19/32 ROD END

$

$

Currently unavailable

Cub Cadet IH-23476-R1

PIN, 5/64 X 1/2 COT.

$

$

Currently unavailable

16

Cub Cadet IH-546550-R1

LEVER, VALVE HANDLE

$

$

Not available

Cub Cadet IH-591184-R1

PIN, 1/8 X 1-1/4 SPRING HV

$

$

Not available

Cub Cadet IH-53257V

PIN, 3/16 X 23/32 ROD END

$

$

Not available

Cub Cadet IH-23496-R1

PIN, 5/64 X 1/2 COT.

$

$

Currently unavailable

Cub Cadet IH-404880-R1

SPRING, VALVE HANDLE

$

$

Currently unavailable

17

UNKNOWN

$

$

Not available

18

Cub Cadet IH-546549-R1

SPACER, HANDLE

$

$

Not available

19

Cub Cadet IH-546547-R91

HANDLE ASSY, VALVE

$

$

Currently unavailable

Cub Cadet IH-19938-R1

PIN, 1/8 X 7/8 SPRING

$

$

Currently unavailable

Cub Cadet IH-131440H

WASHER, 17/32 X 7/8 X 18 GA

$

$

Currently unavailable

20

Cub Cadet IH-391056-R1

GRIP, HANDLE

$

$

Not available

21

Cub Cadet IH-117460-C1

TUBE ASSY, HYDRAULIC CYLINDER

Note: NOT USED ON TRACTORS W/SELECTOR VALVE; REPLACES 546646-R1

$

$

Currently unavailable

22

Cub Cadet IH-9402981

TEE, 9/16-18 37 DEG HYD FLARED TUBE THREE WAY

Note: NOT USED ON TRACTORS WITH SELECTOR VALVE

$

$

Currently unavailable

23

Cub Cadet IH-404908-R1

BEARING ASSY, ROCKSHAFT

$

$

Currently unavailable

Cub Cadet IH-180191

BOLT, 1/2 X 3-1/4 TYPE 5

$

$

Currently unavailable

Cub Cadet IH-120378

NUT, 1/2 TYPE 5
(Superseded to 912-0206)

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet IH-273359

FITTING, 3/16 65 DEG ANGLE DRIVE TYPE LUB

$

$

Not available

25

Cub Cadet IH-404904-R2

ROCKSHAFT ASSY

$

$

Currently unavailable

Cub Cadet IH-Q838

PIN, 5/8 X 3-1/4 STD-HD

$

$

Not available

Cub Cadet IH-103407

PIN, 3/16 X 1 COT.

$

$

Currently unavailable

26

Cub Cadet IH-531434-R2

SUPPORT, TUBE CLAMP

$

$

Currently unavailable

Cub Cadet IH-18654-R1

BOLT, 1/4 X 3/4 TYPE 1

$

$

Currently unavailable

Cub Cadet IH-20244-R1

NUT, 1/4 P/T LOCK TYPE 5

$

$

Not available

27

Cub Cadet IH-404886-R1

FILTER ASSY, HYD OIL-SPIN-ON

$

$

Not available

28

Cub Cadet IH-530875-R2

BASE, HYD OIL FILTER

$

$

Currently unavailable

Cub Cadet IH-179816

BOLT, 5/16 X 3/4 PLN TYPE 5

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 PLN LOCK

$

$

Currently unavailable

29

Cub Cadet IH-530876-R2

TUBE ASSY, HYD FILTER SUCTION

$

$

Not available

Cub Cadet IH-9403452

SLEEVE, 3/4 HYD 37 DEG FLARED TUBE

$

$

Currently unavailable

Cub Cadet IH-9403540

NUT, 1-1/16-12 HYD 37 DEG FLARED TUBE

$

$

Currently unavailable

30

Cub Cadet IH-219334

NIPPLE, 1/2 X 5-1/2 PIPE

$

$

Currently unavailable

31

Cub Cadet IH-530877-R1

CONNECTOR, HYDRAULIC FLARED TUBE

$

$

Currently unavailable

32

Cub Cadet IH-546553-R1

HOSE, RETURN

$

$

Currently unavailable

33

Cub Cadet IH-9411107

ELBOW, 1-1/16-12 C-Z 37 DEG HYD FLARED TUBE ADJ 45 DEG

$

$

Currently unavailable

34

Cub Cadet IH-106400-C2

TUBE ASSY, SUCTION LONG

Note: REPLACES IH-544020-R1

$

$

Currently unavailable

35

Cub Cadet IH-274085-R91

CLAMP, RETURN HOSE

$

$

Currently unavailable

36

Cub Cadet IH-530879-R1

HOSE, SUCTION TUBE

$

$

Currently unavailable

37

Cub Cadet IH-368269-R1

O-RING, 3/4 OD TUBE

$

$

Not available

38

Cub Cadet IH-529348-R1

HOSE ASSY, HYDRAULIC

$

$

Not available

39

Cub Cadet IH-9403371

CAP, 9/16-18 37 DEG HYD FLARED TUBE

Note: NOT USED ON TRACTORS W/SELECTOR VALVE

$

$

Currently unavailable

40

Cub Cadet IH-404911-R1

BAR, ROCKSHAFT STOP

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-179840

SCREW, 3/8-16 X 1-1/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-404912-R1

SCREW, STOP ADJ

$

$

Currently unavailable

Cub Cadet IH-120238

NUT, 1/2-13 C-Z HEX JAM

$

$

Not available

41

Cub Cadet IH-404895-R1

SUPPORT, TUBE CLAMP

$

$

Currently unavailable

Cub Cadet IH-18404-R1

BOLT, 1/4 X 5/8 CRG TYPE 1

$

$

Not available

Cub Cadet IH-20244-R1

NUT, 1/4 P/T LOCK TYPE 5

$

$

Not available

42

Cub Cadet IH-547410-R1

CLAMP, HYDRAULIC TUBES

$

$

Currently unavailable

Cub Cadet IH-20244-R1

NUT, 1/4 P/T LOCK TYPE 5

$

$

Not available

Cub Cadet IH-18404-R1

BOLT, 1/4 X 5/8 CRG TYPE 1

$

$

Not available

Cub Cadet IH-16559-R1

WASHER, .266 X .625 X .036
(Superseded to 936-3020)

$

$

Not available

43

Cub Cadet IH-404897-R91

CYLINDER ASSY, HYD 1-3/4 X 5

Note: OPTIONAL WITH 405794-R92

$

$

Currently unavailable

Cub Cadet IH-405794-R92

CYLINDER ASSY, HYD 1-3/4 X 5 SINGLE ACTING

Note: OPTIONAL WITH IH-404897-R91

$

$

Currently unavailable

44

Cub Cadet IH-404898-R1

BRACKET ASSY, CYL MTG

$

$

Currently unavailable

Cub Cadet IH-180122

BOLT, 3/8 X 1 TYPE 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 16

0

Cub Cadet IH-120382

WASHER, 3/8 LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 11

0

Cub Cadet IH-120377

NUT, 3/8 TYPE 5
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

45

Cub Cadet IH-530512-R1

HOUSING ASSY, GEAR SHIFT LEVER

$

$

Currently unavailable

Cub Cadet IH-364066-R1

PIN, LEVER SWIVEL STOP
(Superseded to 711-3131)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-444577

PLUG, 1/4-18 PIPE

$

$

Currently unavailable

46

Cub Cadet IH-384855-R1

CLAMP, HYD TUBES

$

$

Currently unavailable

Cub Cadet IH-180022

SCREW, 1/4-20 X 1 ZNP HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-16559-R1

WASHER, 17/64 X 5/8 X .036 C-Z
(Superseded to 936-3020)

$

$

Not available

Cub Cadet IH-20244-R1

NUT, 1/4-20 ZNP NYLON INSERT

$

$

Not available
