154 - International Harvester Cub Lo-Boy Tractor Seat & Supports Parts Diagram

Cub Lo-Boy Tractor

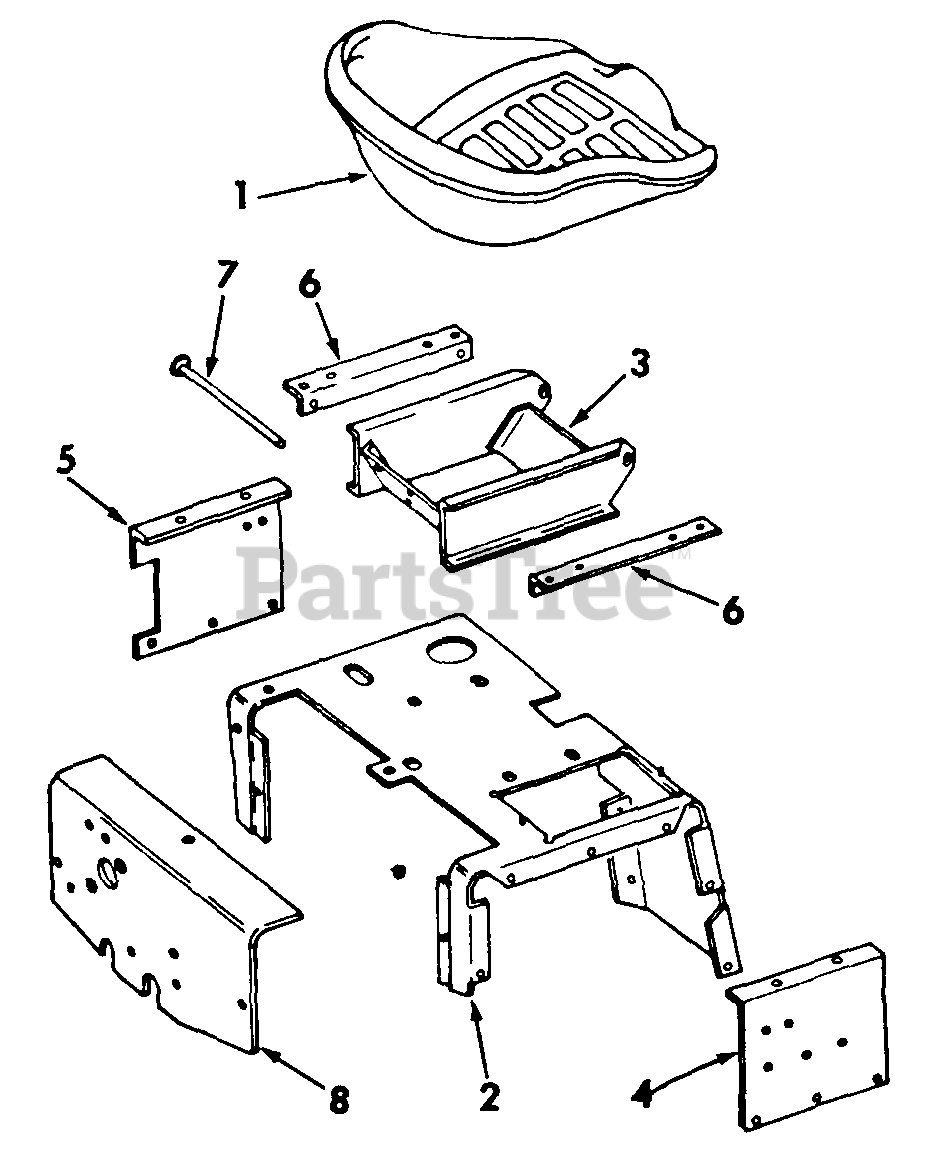

Seat & Supports Parts Diagram

  • Title

1

Cub Cadet IH-135763-C1

SEAT ASSY, W/O RAILS
(Superseded to 759-3148)

$

$

Not available

2

Cub Cadet IH-404573-R4

SHIELD ASSY, REAR FRAME & SEAT SUPPORT

$

$

Currently unavailable

Cub Cadet IH-546239-R1

BOLT, 3/8-16 X 5/8 SERR. FLG LK

$

$

Currently unavailable

Cub Cadet IH-142126

PLUG, 7/8 IN. BUTTON

$

$

Currently unavailable

3

Cub Cadet IH-404564-R2

SUPPORT ASSY, TOOL BOX & SEAT

$

$

Currently unavailable

Cub Cadet IH-180122

BOLT, 3/8 X 1 TYPE 5
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

WASHER, 3/8 LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-20803-R1

WASHER, .406 X 1.000 X .105

$

$

Not available

4

Cub Cadet IH-404569-R1

SHEET ASSY, SEAT SUPPORT LH

$

$

Currently unavailable

Cub Cadet IH-179879

BOLT, 1/2 X 3/4 PLN TYPE 5

$

$

Currently unavailable

Cub Cadet IH-120384

WASHER, 1/2 LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet IH-404571-R1

SHEET ASSY, SEAT SUPPORT RH

$

$

Currently unavailable

Cub Cadet IH-179879

BOLT, 1/2 X 3/4 PLN TYPE 5

$

$

Currently unavailable

Cub Cadet IH-120384

WASHER, 1/2 LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet IH-404563-R1

RAIL, SEAT SUPPORT

$

$

Currently unavailable

Cub Cadet IH-120214

WASHER, 5/16 LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180073

BOLT, 5/16 X 1/2 TYPE 5
(Superseded to 710-3039)

$

$

Not available

7

Cub Cadet IH-21580-R1

PIN, SEAT PIVOT

$

$

Currently unavailable

Cub Cadet IH-177923

PIN, 1/8 X 3/4 COT
(Superseded to 914-0474)

$

$

Not available

8

Cub Cadet IH-404577-R1

COVER ASSY, REAR FRAME

$

$

Currently unavailable

Cub Cadet IH-385157-R1

SCREW, 5/16-18 X 5/8 BEVEL WASHER

$

$

Not available
