154 - International Harvester Cub Lo-Boy Tractor Single Acting Control Valve Parts Diagram

Cub Lo-Boy Tractor

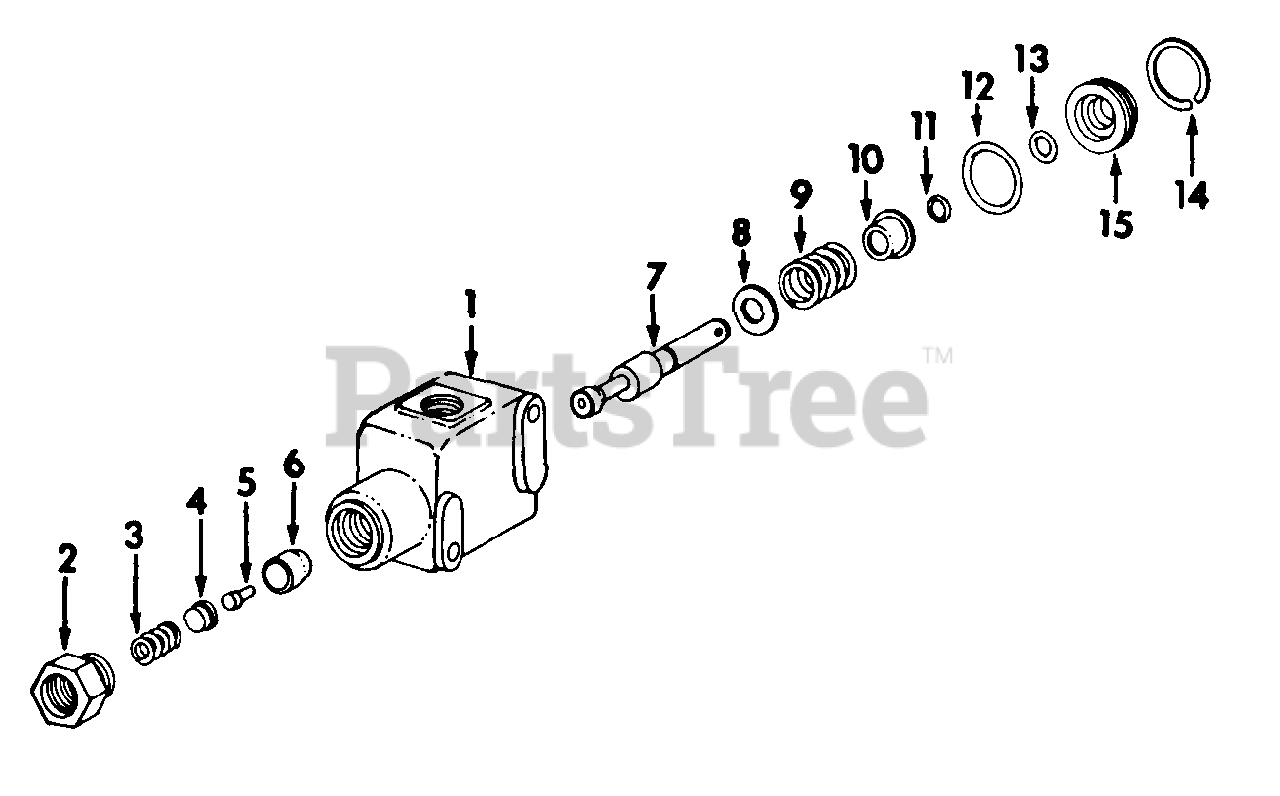

Single Acting Control Valve Parts Diagram

  • Title

Cub Cadet IH-405812-R91

VALVE ASSY, SINGLE ACTING CONTROL

$

$

Currently unavailable

1

BODY ASSY, POPPET VALVE

Note: NOT SERVICED SEPARATELY, ORDER VALVE ASSY

$

$

Not available

2

Cub Cadet IH-529437-R1

PLUG, ADAPTOR PORT

$

$

Currently unavailable

3

SPRING

Note: NOT SERVICED SEPARATELY ORDER PACKAGE, IH-474842-R93

$

$

Not available

4

Cub Cadet IH-474841-R1

CAP

$

$

Currently unavailable

5

Cub Cadet IH-474840-R1

PLUNGER

$

$

Currently unavailable

6

POPPET

Note: NOT SERVICED SEPARATELY ORDER PACKAGE, IH-474842-R93

$

$

Not available

7

SPOOL

Note: NOT SERVICED SEPARATELY ORDER VALVE ASSY

$

$

Not available

8

Cub Cadet IH-474846-R1

WASHER

$

$

Currently unavailable

9

Cub Cadet IH-474837-R1

SPRING

$

$

Currently unavailable

10

Cub Cadet IH-474836-R1

WASHER, DEEP

$

$

Currently unavailable

11

SNAP RING

Note: NOT SERVICED SEPARATELY ORDER PACKAGE, IH-474842-R93

$

$

Not available

12

O-RING

Note: NOT SERVICED SEPARATELY ORDER PACKAGE, IH-474842-R93

$

$

Not available

13

O-RING

Note: NOT SERVICED SEPARATELY ORDER PACKAGE, IH-474842-R93

$

$

Not available

14

Cub Cadet IH-474838-R1

GUIDE

$

$

Currently unavailable

15

Cub Cadet IH-474847-R1

RING, RETAINING

$

$

Currently unavailable

Cub Cadet IH-474842-R93

PACKAGE, O-RING & SEAL

Note: CONSISTS OF THE FOLLOWING 7 ITEMS

$

$

Currently unavailable

O-RING

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

O-RING

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

O-RING

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

POPPET

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

SPRING

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

SPRING

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
