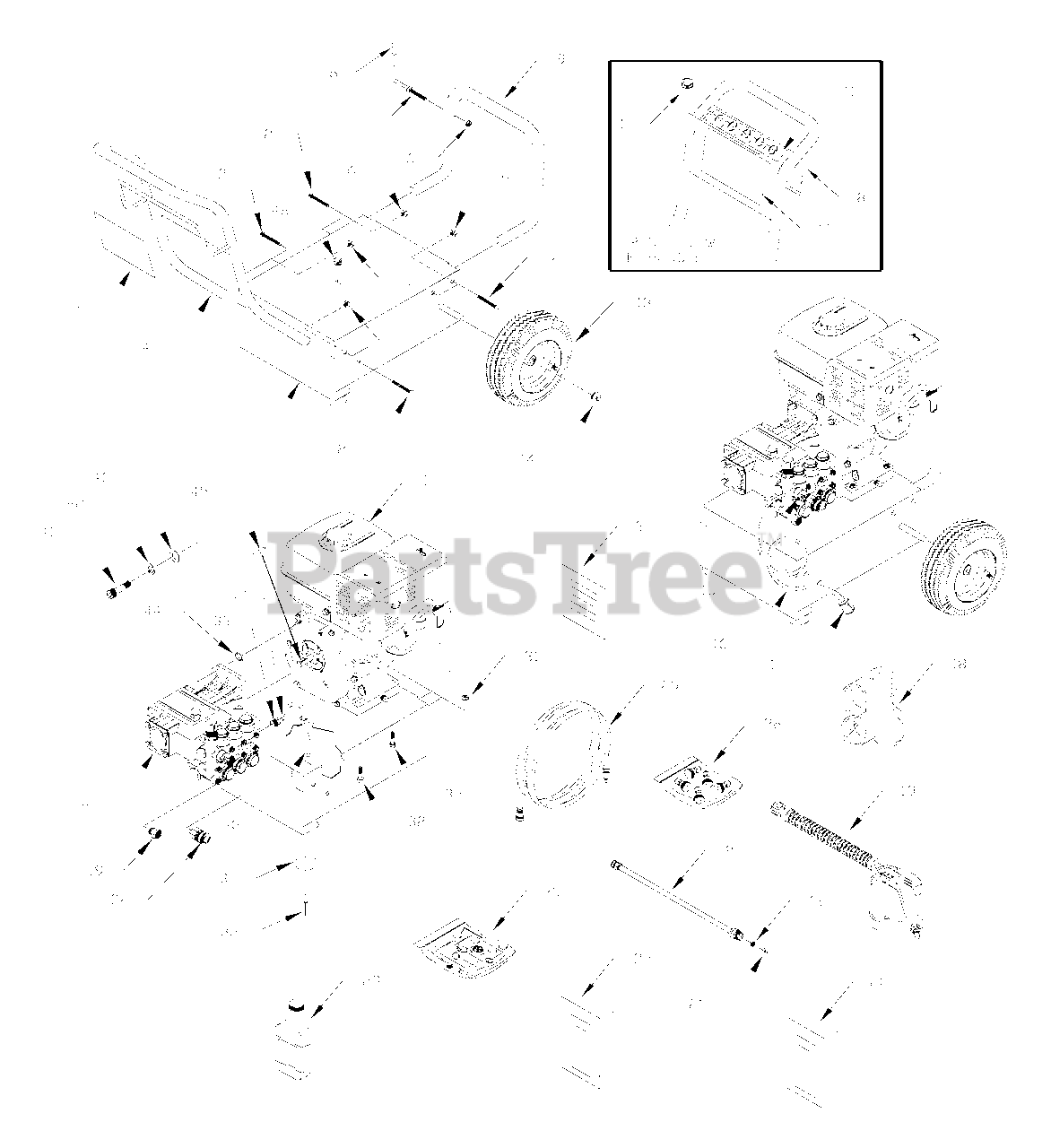

1540-0 - Generac 3,500 PSI Pressure Washer Main Unit Parts Diagram

3,500 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

2

Briggs & Stratton B2043GS

BOLT, Carriage

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B190548AGS

BASE

$

$

Not available

4

Briggs & Stratton BB3861CGS

HANDLE
(Superseded to CB3861CGS)

$179.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B4160GS

DECAL, Instructions

$15.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 99583GS

NUT

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B2150GS

HOOK, Square Neck Gun

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2516GS

CAP, Vinyl

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton BB4105GS

BUMPER

$

$

Currently unavailable

10

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187974AGS

DECAL, 5 QD Nozzles

$17.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 187736GS

DECAL, Unit

$24.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 88521GS

WHEEL

$93.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 190146GS

PUSHNUT

$9.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 48031GGS

CLAMP, Hose

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A1040DGS

HOSE, Chemical Inject
(Superseded to 705076)

$12.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton A1041GS

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 87815GS

GOGGLES, Safety

$12.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B1436BGS

GUN, with Molded Grip
(Superseded to 704311)

$115.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 187702GS

MANUAL, Owners

$15.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 97837GS

O-RING, Hi Pressure Transfer

$3.49

$

In Stock, Qty 9

0

22

Briggs & Stratton B1464GS

MANUAL, ENG, Honda

$17.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton BB3061BGS

BOTTLE, Oil
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

25

Briggs & Stratton 191922GS

KIT, Maintenance

$18.99

$

In Stock, Qty 7

0

26

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$1.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B3858GS

ASSY, Wand Ext. with QD

$

$

Not available

28

Briggs & Stratton B4847GS

KIT, Spray Tips QD

$32.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B4805GS

HOSE
(Superseded to 205734GS)

$

$

Not available

30

Briggs & Stratton 187744GS

CARD, Owners Registration

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 52859GS

NUT, Lock

$2.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 64416GS

BOLT

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton B1554GS

VALVE, Thermal Relief
(Superseded to 195016GS)

$25.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 188194GS

RIVET, Blind

$1.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 191413GS

VIBE MOUNT, with Washer

$6.49

$

In Stock, Qty 7

0

38

Briggs & Stratton 95458GS

CONNECTOR, Quick Connect
(Superseded to 703824)

$12.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 186839GS

CONNECTOR, Garden Hose

$26.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton ~NSP

ASSY, Pump, Cat

Note: (Includes Items 33, 38 & 39); Complete Pump available from Cat Pumps only.

$

$

Currently unavailable

41

Briggs & Stratton 23645GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 22237GS

WASHER, Lock

$2.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22131GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 188055GS

SPACER

$

$

Currently unavailable

45

Briggs & Stratton 188054GS

KEY
(Superseded to 703890)

$4.99

$

In Stock, Qty 8

0

46

Briggs & Stratton B3107GS

HOSE, Thermal Drain

$12.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 48031BGS

CLAMP, Hose

$3.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0
