1541 (140-651-100) - Cub Cadet Garden Tractor (SN: 800000 - 816508) Electric Start Parts Diagram

Garden Tractor

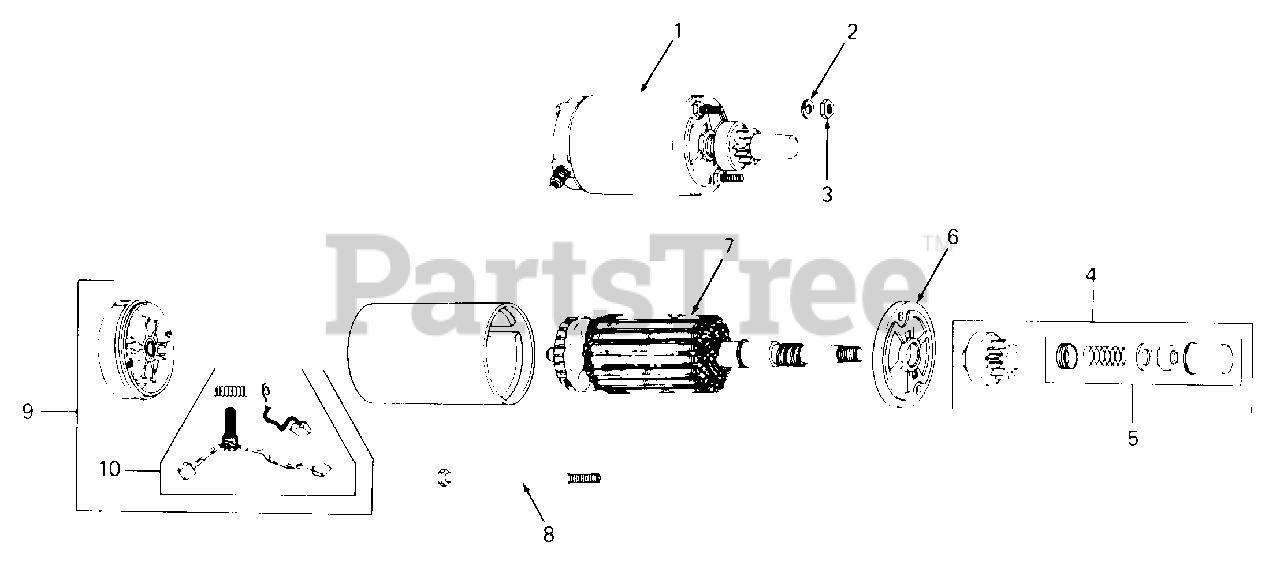

Electric Start Parts Diagram

  • Title

1

Cub Cadet KH-52-098-03

Starter Assembly
(Superseded to KH-52-098-12)

Note: Replace by bonded drive design starter part no. KH-52-098-12. For bonded drive starter component parts refer to Service Bulletin CC281.

$

$

Not available

2

Cub Cadet KH-X-20-1

Washer, Lock, 1/4

$

$

Not available

3

Cub Cadet KH-X-81-1

Nut, Hex, 1/4-20

$

$

Not available

4

Cub Cadet KH-52-755-05

Kit, Drive
(Superseded to KH-82-755-32)

Note: Includes Ref No. 5

$

$

Not available

5

Cub Cadet KH-52-755-08

Kit, Drive Parts
(Superseded to KH-82-755-32)

$

$

Not available

6

Cub Cadet KH-52-227-01

Cap, Drive End
(Superseded to KH-82-755-32)

$

$

Not available

7

Cub Cadet KH-52-170-02

Armature

$

$

Not available

8

Cub Cadet KH-52-211-01

Bolt, 1/4-20 X 5.87 Lg

$

$

Not available

9

Cub Cadet KH-277612

Cap, Commutator End

Note: Includes Ref No. 10

$

$

Not available

10

Cub Cadet KH-48-755-15

Kit, Brush
(Superseded to KH-82-755-28)

$

$

Not available

Cub Cadet KH-25-450-03

Tag, Caution

$

$

Currently unavailable

Cub Cadet KH-52-098-12

Starter, Bonded Drive Design

$

$

Not available
