155 (190-155-100) - Cub Cadet 14 Gallon Tow-Behind Sprayer att 155 14 Gal Tow Sprayer Parts Diagram

14 Gallon Tow-Behind Sprayer

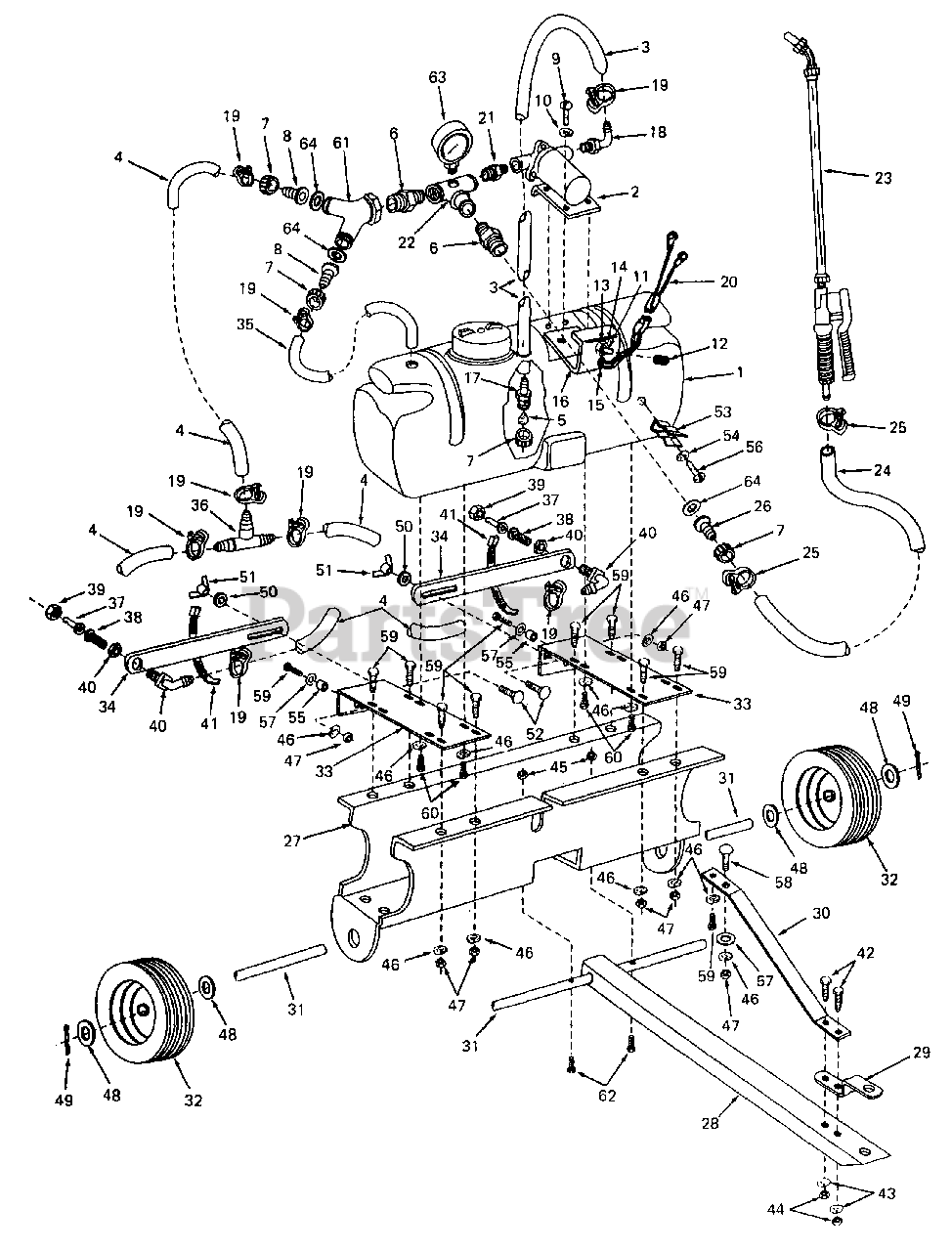

155 14 Gal Tow Sprayer Parts Diagram

  • Title

1

Cub Cadet AF-45014

Tank w/Cap, 14 Gallon

$

$

Not available

Cub Cadet AF-46338

Graphic

$

$

Currently unavailable

2

Cub Cadet AF-45015

Pump, Motor/w

$

$

Not available

3

Cub Cadet AF-46278

Hose, 1/2 ID X 24" Lg

$

$

Not available

4

Cub Cadet AF-45021

Hose, 1/2 ID X 20" Lg

$

$

Not available

5

Cub Cadet AF-45024

Strainer

$

$

Not available

6

Cub Cadet AF-45031

Adapter, 1/2 NPT X Hose

$

$

Not available

7

Cub Cadet AF-45032

Nut, Swivel 3/4 Hose

$

$

Not available

8

Cub Cadet AF-45033

Barb, 1/2 Hose

$

$

Not available

9

Cub Cadet AF-45069

Screw, Pan Hd, #10-24 X 1 Lg

$

$

Not available

10

Cub Cadet AF-43910

Washer, Flat
(Superseded to 936-0400)

$

$

Not available

11

Cub Cadet AF-45084

Switch, On-Off

$

$

Not available

12

Cub Cadet AF-45082

Boot, Rubber

$

$

Not available

13

Cub Cadet AF-45080

Plate, Switch

$

$

Not available

14

Cub Cadet AF-45048

Nut, Switch
(Superseded to 712-0693)

$

$

Not available

15

Cub Cadet AF-45087

Bushing

$

$

Not available

16

Cub Cadet AF-23889

Bracket, Switch Mtg

$

$

Not available

17

Cub Cadet AF-46276

Adapter, 3/4 Hose X 1/2 Barb

$

$

Not available

18

Cub Cadet AF-46277

Elbow, 3/8 NPT X 1/2 Barb

$

$

Currently unavailable

19

Cub Cadet AF-45025

Clamp, 1/2

$

$

Not available

20

Cub Cadet AF-45018

Harness, Battery

$

$

Not available

21

Cub Cadet AF-45049

Nipple, 1/2 X 3/8 Nylon

$

$

Not available

22

Cub Cadet AF-45050

Tee, 1/2

$

$

Not available

23

Cub Cadet AF-45016

Gun, Spray

$

$

Not available

24

Cub Cadet AF-45023

Hose, 3/8 ID X 12'-6" Lg

$

$

Not available

25

Cub Cadet AF-45026

Clamp, 3/8

$

$

Not available

26

Cub Cadet AF-45034

Barb, 3/8 Hose

$

$

Not available

27

Cub Cadet AF-23506

Support, Wheel
(Superseded to AF-23506-0637)

Variations

Cub Cadet AF-23506-0637

SUPPORT-WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

28

Cub Cadet AF-24040

Tongue

$

$

Not available

29

Cub Cadet AF-23014

Bracket, Hitch
(Superseded to AF-23014-0637)

Variations

Cub Cadet AF-23014-0637

Hitch Bracket - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

30

Cub Cadet AF-24041

Brace, Hitch

$

$

Not available

31

Cub Cadet AF-23026

Axle, 3/4 Dia
(Superseded to AF-23026-0637)

Variations

Cub Cadet AF-23026-0637

AXLE-WHEEL 3/4 DIA - POWDER BLACK (0637)

$

$

Not available

$

$

32

Cub Cadet AF-44456

Wheel Assy

$133.99

$

Usually ships in 3-6 days

0

33

Cub Cadet AF-24039

Bracket, Tank Mtg

$

$

Not available

34

Cub Cadet AF-24038

Bar, Boom

$

$

Not available

35

Cub Cadet AF-45022

Hose, 1/2 ID X 14" Lg

$

$

Not available

36

Cub Cadet AF-45027

Tee, 1/2

$

$

Not available

37

Cub Cadet AF-45028

Nozzle, SS Floodjet
(Superseded to AF-45028P)

$

$

Not available

38

Cub Cadet AF-45029

Strainer, Screen Type

$10.99

$

Usually ships in 3-6 days

0

39

Cub Cadet AF-45037

Nut, Screen Body

$

$

Not available

40

Cub Cadet AF-45030

Elbow

$

$

Not available

41

Cub Cadet 725-0157

Tie, Cable

$3.49

$

In Stock, only 4 left!

0

42

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

44

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.49

$

In Stock, Qty 9

0

46

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 736-0316

Washer, Flat, .781 X 1.59 X .065 Thk

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 714-3001

Pin, Cotter, 1/8 X 1.50 Lg
(Superseded to 914-3001)

$3.49

$

Usually ships in 3-6 days

0

50

Cub Cadet AF-43088

Washer, Flat, 1/4

$3.49

$

Usually ships in 3-6 days

0

51

Cub Cadet AF-43193

Nut, Wing Lock, 1/4-20

$

$

Not available

52

Cub Cadet 710-0703

Bolt, Carriage, 114 X .75 Lg

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet AF-45180

Clip, Hose

$

$

Not available

54

Cub Cadet 736-0722

Washer, Lock, #10

$6.49

$

Usually ships in 3-6 days

0

55

Cub Cadet AF-23625

Bushing, Pivot

$

$

Not available

56

Cub Cadet AF-45040

Screw, Slot Hd, #10-24 X .50 Lg

$

$

Not available

57

Cub Cadet AF-43081

Washer, 5/16
(Superseded to 936-0159)

$

$

Not available

58

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 X .75 Lg

$3.99

$

In Stock, Qty 20+

0

59

Cub Cadet 710-0118

Screw, Hex Cap, 5/16-18 X .75 Lg
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

60

Cub Cadet 710-0621

Screw, Hex Cap, 5/16-18 X .50 Lg
(Superseded to 710-3039)

$

$

Not available

61

Cub Cadet AF-45017

Connector, Y

$

$

Not available

62

Cub Cadet 710-0606

Screw, Hex Cap, 1/4-20 X 1.50 Lg

$4.99

$

In Stock, Qty 15

0

63

Cub Cadet AF-45071

Gauge, Pressure, 100 PSI

$

$

Not available

64

Cub Cadet AF-45072

Gasket, 3/4 Hose

$

$

Not available
