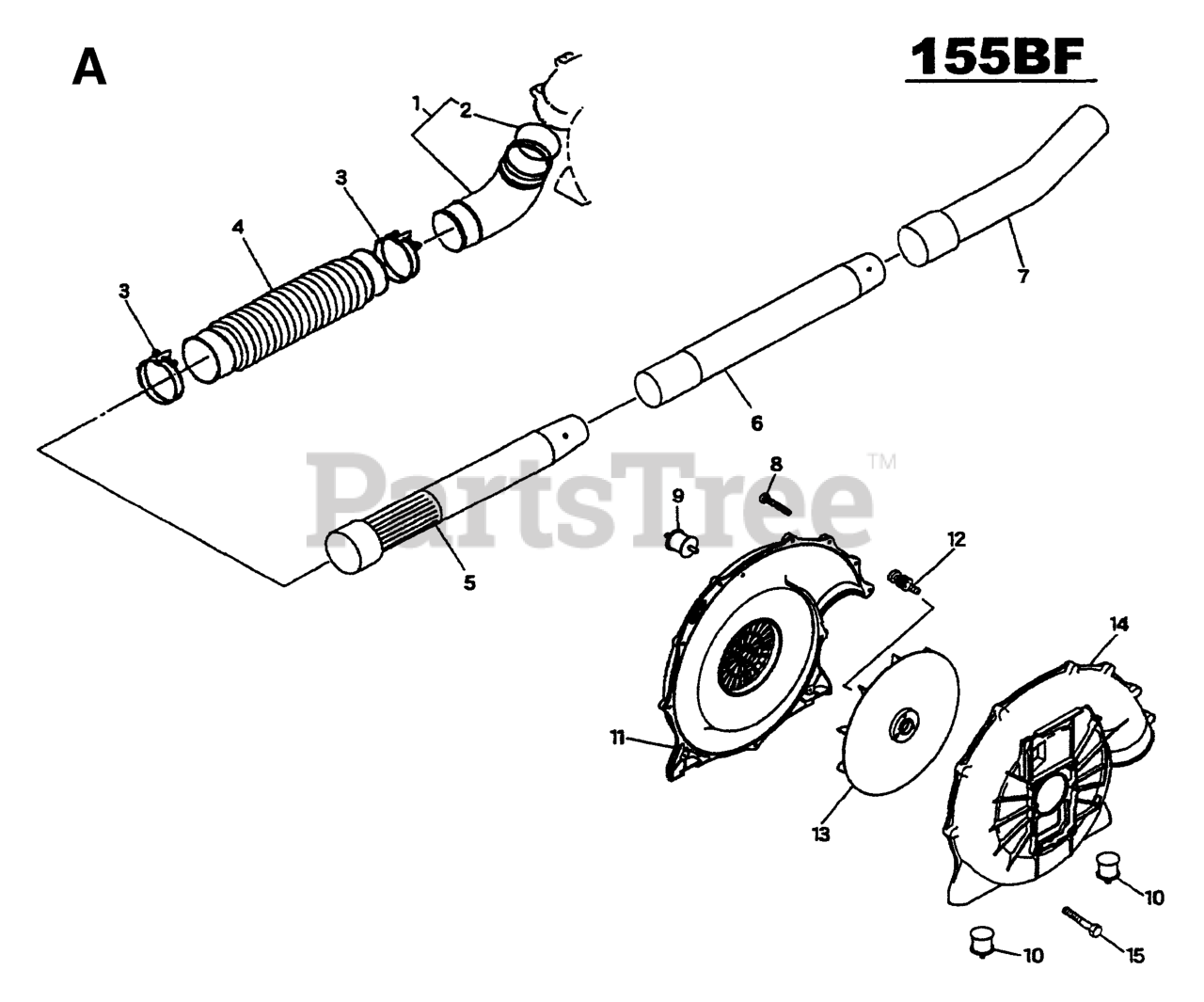

155 BF - Husqvarna Backpack Blower (1999-07) Fan Housing & Blower Tubes Parts Diagram

Backpack Blower

Fan Housing & Blower Tubes Parts Diagram

  • Title

1

Husqvarna 695000402

ELBOW PIPE C.P.
(Superseded to 695000526)

$

$

Not available

2

Husqvarna 695000005

O'RING
(Superseded to 531003215)

$

$

Not available

3

Husqvarna 695000527

HOSE BAND
(Superseded to 531003212)

$

$

Not available

4

Husqvarna 695000016

FLEX. PIPE 36084-101
(Superseded to 531003213)

$68.99

$

Usually ships in 3-10 days

0

5

Husqvarna 695000019

BASE PIPE
(Superseded to 531003211)

$

$

Not available

6

Husqvarna 695000020

MIDDLE PIPE
(Superseded to 531003216)

$

$

Not available

7

Husqvarna 695000021

BEND PIPE
(Superseded to 531003217)

$

$

Not available

8

Husqvarna 695000633

SCREW
(Superseded to 531003727)

$

$

Not available

9

Husqvarna 695000634

ANTIVIBE MOUNT
(Superseded to 531003686)

$

$

Not available

10

Husqvarna 695000635

ANTIVIBE MOUNT
(Superseded to 531003687)

$

$

Not available

11

Husqvarna 695000636

FAN CASE

$

$

Not available

12

Husqvarna 695000637

BOLT
(Superseded to 531003679)

$

$

Not available

13

Husqvarna 695000638

FAN

$

$

Not available

14

Husqvarna 695000639

FAN CASE

$

$

Not available

15

Husqvarna 695000640

BOLT
(Superseded to 531003248)

$

$

Not available
