155 VP (41AE55VC034) - Ryobi String Trimmer, Electric Battery Housing Parts Parts Diagram

String Trimmer, Electric

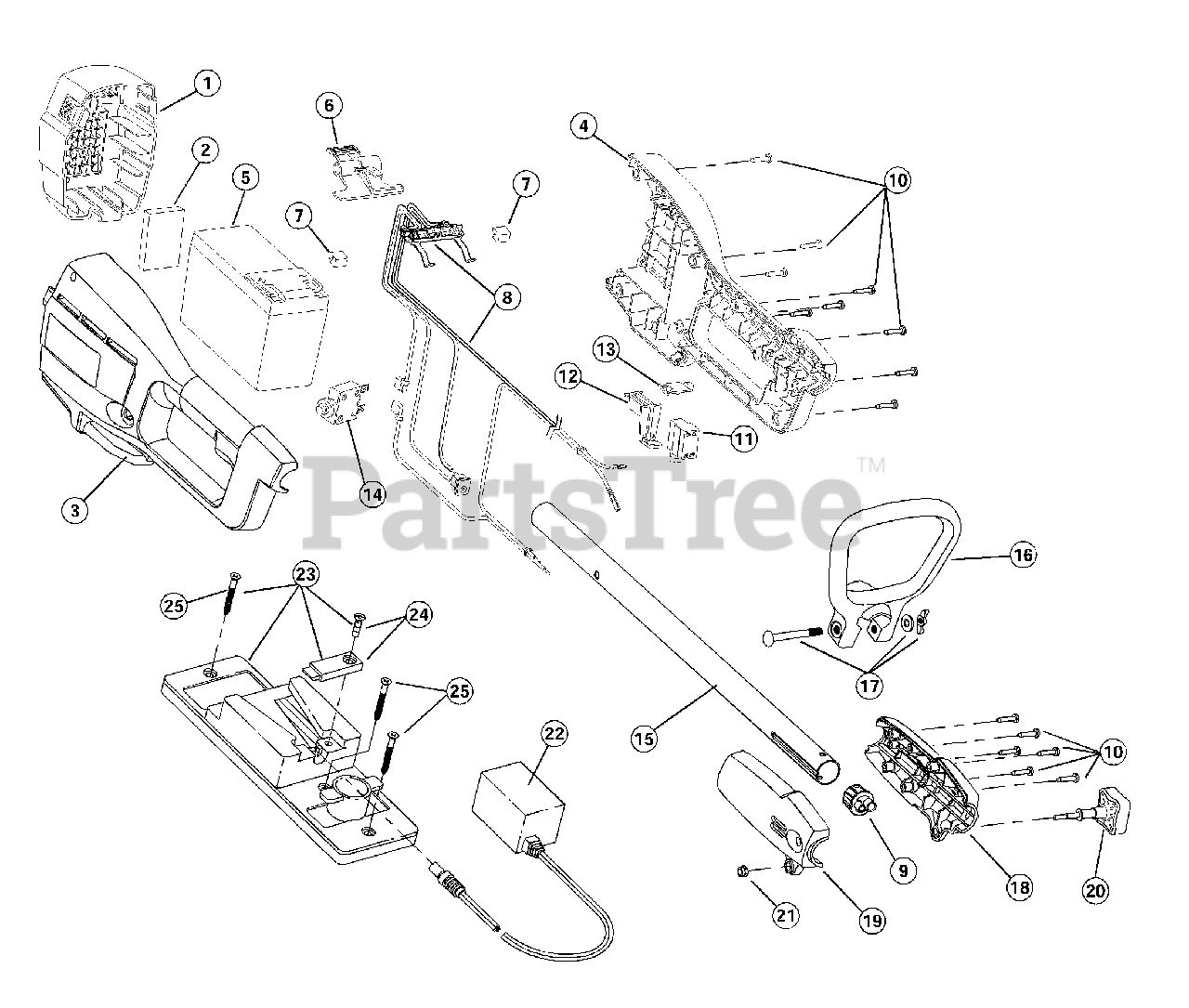

Battery Housing Parts Parts Diagram

  • Title

1

MTD 791-182696

Battery Door

$35.99

$

Usually ships in 3-6 days

0

2

MTD 791-182542

Foam Pad

$

$

Not available

3

MTD 791-182697

Right Battery Housing

$

$

Not available

4

MTD 791-182698

Left Battery Housing
(Superseded to 753-04486)

$

$

Not available

5

MTD 791-182391B

12 Volt Battery

$

$

Not available

6

MTD 791-182699

Battery Latch

$

$

Not available

7

MTD 791-182702

Terminal Spacer

$

$

Not available

8

MTD 791-182703

Wiring Harness Assembly

Note: (includes 9)

$

$

Not available

9

MTD 791-182711

Plug Connector

$

$

Not available

10

MTD 791-181482

Housing Screw

$4.49

$

Usually ships in 3-6 days

0

11

MTD 791-180150

Switch Assembly

Note: (includes 12)

$

$

Not available

12

MTD 791-182704

Trigger
(Superseded to 791-182318)

$

$

Not available

13

MTD 791-182705

Lock-Off Button

$8.99

$

Usually ships in 3-6 days

0

14

MTD 791-180365

Circuit Breaker

$25.99

$

Usually ships in 3-6 days

0

15

MTD 791-182706

Upper Motor Wire Tube

$

$

Not available

16

MTD 791-153064

D-Handle

Note: (includes 17)

$

$

Not available

17

MTD 791-153317

Handle Hardware
(Superseded to 791-181587)

$18.99

$

In Stock, only 1 left!

0

18

MTD 791-182707

Left Coupler Housing
(Superseded to 753-05060)

$

$

Not available

19

MTD 791-182708

Right Coupler Housing
(Superseded to 753-05060)

$

$

Not available

20

MTD 791-181618B

Knob
(Superseded to 791-181981)

Note: (includes 21)

$7.49

$

In Stock, only 1 left!

0

21

MTD 791-181886

Lock Nut

$3.49

$

In Stock, only 4 left!

0

22

MTD 791-182534

12 Volt Charger

$66.99

$

Usually ships in 3-6 days

0

23

MTD 791-180295

Charging Station Stand

Note: (includes 24 & 25)

$

$

Not available

24

MTD 791-180378

Barrel Clamp with Screw

$

$

Not available

25

MTD 791-182709

Mounting Screw

$

$

Not available
