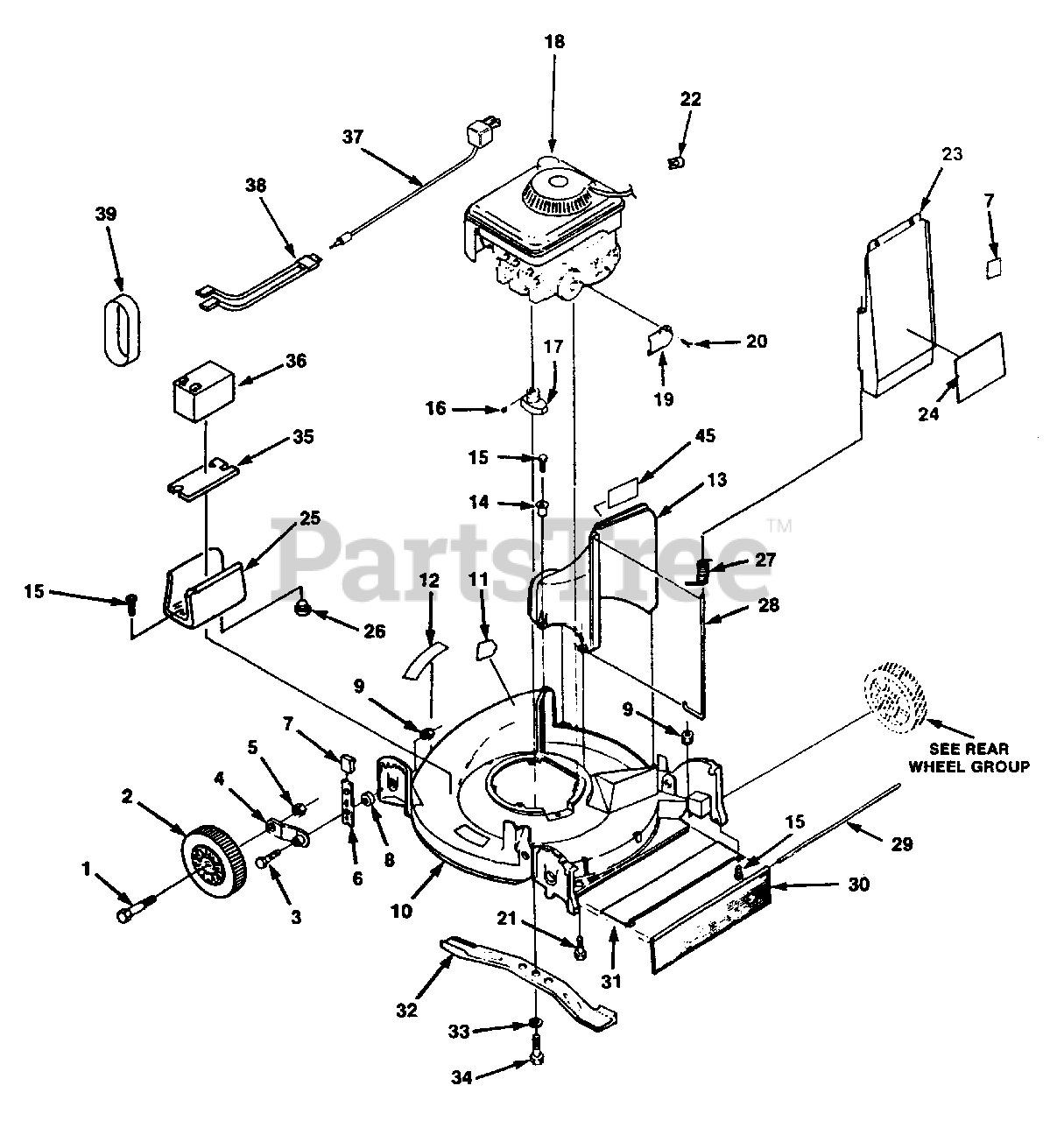

1550 ZS (1691727) - Simplicity Walk-Behind Mower Engine & Mower Deck Group Parts Diagram

Walk-Behind Mower

Engine & Mower Deck Group Parts Diagram

  • Title

1

Simplicity 1612462

BOLT & NUT ASSY. (Incl. Ref. No. 5)

$

$

Not available

2

Simplicity 1612423

WHEEL & TIRE

$

$

Not available

3

Simplicity 1612235

BOLT, Hex Hd., 5/16-18

$

$

Not available

4

Simplicity 1612346

ARM, Wheel Hgt. Adj.

$

$

Not available

5

Simplicity 1960251SM

NUT, Hex, 3/8-24
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

6

Simplicity 1612305

SPRING, Index

$

$

Not available

7

Simplicity 1612215

KNOB, Indexing Spring

$

$

Not available

8

Simplicity 1612225

SPACER, Index Spring

$

$

Not available

9

Simplicity 1935048SM

NUT, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 1612416

DECK, 21" (Incl. Ref. No. 11 and 12)

$

$

Not available

11

Simplicity 1612182

DECAL, 21"

$

$

Not available

12

Simplicity 1612219

DECAL, Warning

$

$

Not available

13

Simplicity 1612343

CHUTE, Discharge (Incl. #14)

$

$

Not available

14

Simplicity 1612301

EYELET, Simpson

$

$

Not available

15

Simplicity 1925592SM

SCREW, Hex Hd., 1 /4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

16

Simplicity 2828637SM

KEY, 5/8 x 5/32

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1612331

ADAPTER, Blade

$

$

Not available

18

ENGINE, 4 HP, Briggs & Stratton, Model 110702, Type 3205-03

$

$

Not available

19

Simplicity 1612236

DEFLECTOR, Muffler

$

$

Not available

20

Simplicity 1934940SM

SCREW, Hex Hd., 8-32 x 3/8

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 1930598SM

SCREW, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

In Stock, only 2 left!

0

22

Simplicity 1612319

STOP, Rope

$

$

Not available

23

Simplicity 1612401

DOOR, Chute (Incl. #24)

$

$

Not available

24

Simplicity 1612400

DECAL, Door

$

$

Not available

25

Simplicity 1612341

HOLDER, Battery

Note: Used On Mfg. No. 1691729 Only

$

$

Not available

26

Simplicity 1612330

BUMPER

Note: Used On Mfg. No. 1691729 Only

$

$

Not available

27

Simplicity 1612384

SPRING, Door

$

$

Not available

28

Simplicity 1612229

PIN, Hinge

$

$

Not available

29

Simplicity 1612232

ROD, Drag Flap

$

$

Not available

30

Simplicity 1612237

FLAP, Drag

$

$

Not available

31

Simplicity 1612344

COVER, Rear

$

$

Not available

32

Simplicity 1612155SM

BLADE, 21"

$

$

Not available

33

Simplicity 1918199SM

WASHER, Lock 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

34

Simplicity 1612332

BOLT, Shoulder

$

$

Not available

35

Simplicity 1612342

PAD, Battery

Note: Used On Mfg. No. 1691729 Only

$

$

Not available

36

Simplicity 1612159

BATTERY, 12 Volt

Note: Used On Mfg. No. 1691729 Only

$

$

Not available

37

Simplicity 1612368

CHARGER, Battery

Note: Used On Mfg. No. 1691729 Only

$

$

Not available

38

Simplicity 1612335

LEAD, Battery

Note: Used On Mfg. No. 1691729 Only

$

$

Not available

39

Simplicity 1612348

STRAP, Rubber

Note: Used On Mfg. No. 1691729 Only

$

$

Not available
