1550 ZS (1691727) - Simplicity Walk-Behind Mower Rear Wheel Group Parts Diagram

Walk-Behind Mower

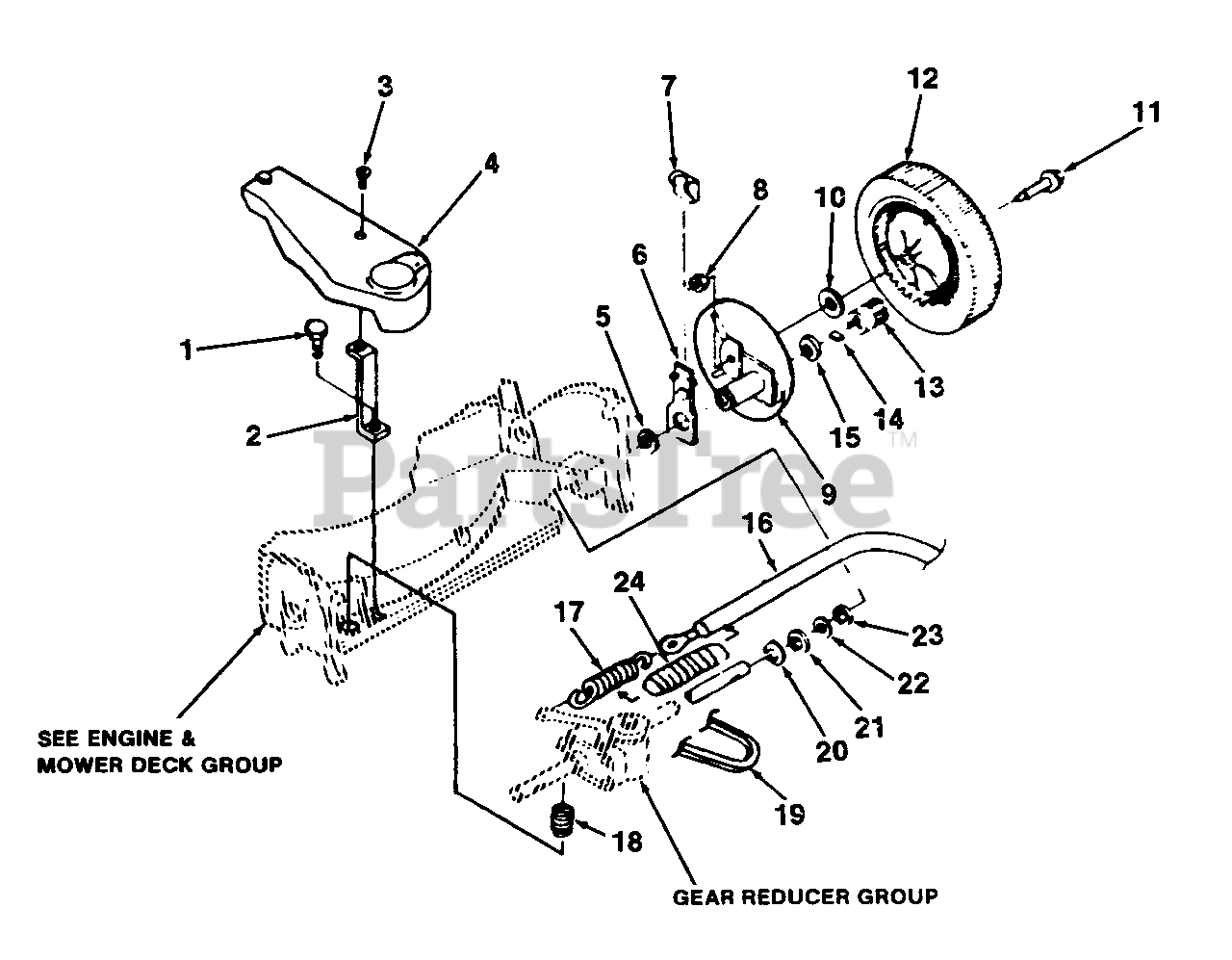

Rear Wheel Group Parts Diagram

  • Title

1

Simplicity 1960001SM

SCREW, Hex Hd., 10-16 x 1/2
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1612406

SUPPORT

$

$

Not available

3

Simplicity 1925592SM

SCREW, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 1612411

COVER, Drive (Mfg. No. 1691727, 1691729 Only)

$

$

Not available

4

Simplicity 1612405

COVER, Clutch (Mfg. No. 1691728 Only)

$

$

Not available

5

Simplicity 1612228

SPACER

$

$

Not available

6

Simplicity 1612347

SPRING, Index

$

$

Not available

7

Simplicity 1612215

KNOB

$

$

Not available

8

Simplicity 1960251SM

NUT, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

9

Simplicity 1612304

SUPPORT, Drive Wheel

$

$

Not available

10

Simplicity 1612242

WASHER

$

$

Not available

11

Simplicity 1612462

BOLT & NUT ASSY. (Incl. Ref. No. 8)

$

$

Not available

12

Simplicity 1612398

WHEEL & TIRE

$

$

Not available

13

Simplicity 1612208

PINION, R.H.

$

$

Not available

13

Simplicity 1612209

PINION, L.H.

$

$

Not available

14

Simplicity 1612213

PAWL, Pinion

$

$

Not available

15

Simplicity 1612222

WASHER

$

$

Not available

16

Simplicity 1612327

CABLE, Traction

$

$

Not available

17

Simplicity 1612246

SPRING, Extension

$

$

Not available

18

Simplicity 1612239

SPRING, Compression

$

$

Not available

19

Simplicity 1612158SM

BELT, Drive

$

$

Not available

20

Simplicity 1612288

RING, Eaton

$

$

Not available

21

Simplicity 2173668SM

WASHER

$9.49

$

In Stock, only 2 left!

0

22

Simplicity 1612214

WASHER (Use as Shim)

$

$

Not available

23

Simplicity 1612286

WASHER

$

$

Not available

24

Simplicity 1612240

COVER, Spring

$

$

Not available
