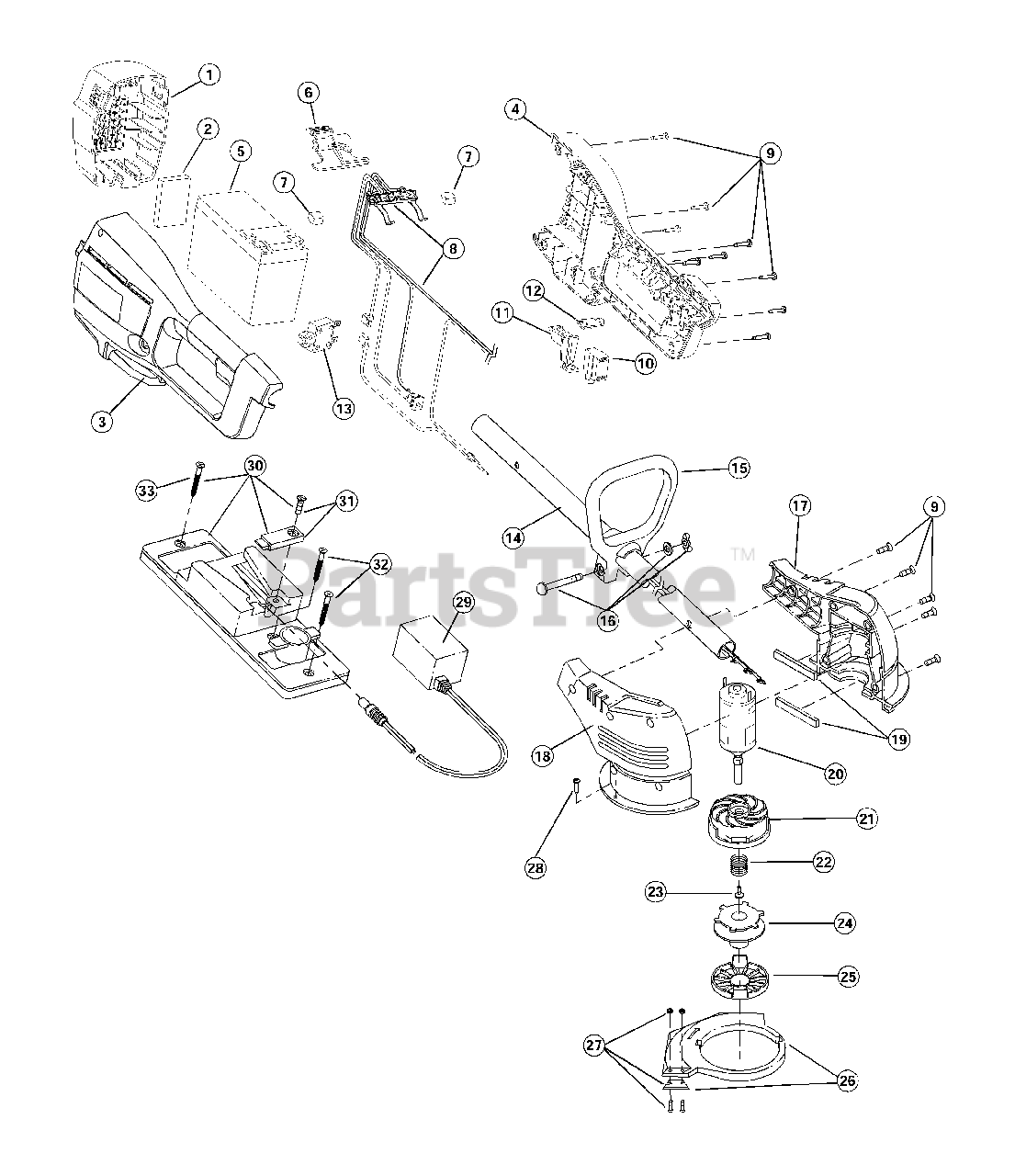

155r (41AE155E034) - Ryobi String Trimmer, Electric Replacement Parts Parts Diagram

String Trimmer, Electric

Replacement Parts Parts Diagram

  • Title

1

MTD 791-182696

Battery Door

$35.99

$

Usually ships in 3-6 days

0

2

MTD 791-182542

Foam Pad

$

$

Not available

3

MTD 791-182697

Right Battery Housing

$

$

Not available

4

MTD 791-182698

Left Battery Housing
(Superseded to 753-04486)

$

$

Not available

5

MTD 791-182391B

12 Volt Battery

$

$

Not available

6

MTD 791-182699

Battery Latch

$

$

Not available

7

MTD 791-182702

Terminal Spacer

$

$

Not available

8

MTD 791-182724

Wiring Harness Assembly

$

$

Not available

9

MTD 791-181482

Housing Screw

$4.49

$

Usually ships in 3-6 days

0

10

MTD 791-180150

Switch Assembly

Note: (includes 11)

$

$

Not available

11

MTD 791-182704

Trigger
(Superseded to 791-182318)

$

$

Not available

12

MTD 791-182705

Lock-Off Button

$8.99

$

Usually ships in 3-6 days

0

13

MTD 791-180365

Circuit Breaker

$25.99

$

Usually ships in 3-6 days

0

14

MTD 791-180367

Motor Wire Tube

$

$

Not available

15

MTD 791-153064

D-Handle

Note: (includes 16)

$

$

Not available

16

MTD 791-181587

Handle Hardware

$18.99

$

In Stock, only 1 left!

0

17

MTD 791-182713

Left Motor Housing
(Superseded to 753-04356)

$

$

Not available

18

MTD 791-182714

Right Motor Housing
(Superseded to 753-04357)

$

$

Not available

19

MTD 791-180369

Spacer

$

$

Not available

20

MTD 791-182715

Motor with Shaft

$73.99

$

Usually ships in 3-6 days

0

21

MTD 791-180372

Outer Spool and Eyelet/Motor Fan

$

$

Not available

22

MTD 791-180374

Spring

$10.99

$

Usually ships in 3-6 days

0

23

MTD 753-04010

Screw

$

$

Not available

24

MTD 791-180292

Inner Reel with .080" Line
(Superseded to 791-180292B)

$18.99

$

Usually ships in 3-6 days

0

25

MTD 791-180376

Reel Cover

$

$

Not available

26

MTD 791-180293

Guard and Blade Assembly

$

$

Not available

27

MTD 791-180377

Blade Assembly

$

$

Not available

28

MTD 791-182469

Guard Screw
(Superseded to 753-1202)

$3.99

$

Usually ships in 3-6 days

0

29

MTD 791-182534

12 Volt Charger

$66.99

$

Usually ships in 3-6 days

0

30

MTD 791-180295

Charging Station Stand

Note: (includes 31 & 32)

$

$

Not available

31

MTD 791-180378

Barrel Clamp with Screw

$

$

Not available

32

MTD 791-182709

Mounting Screw

$

$

Not available

MTD 791-610375

Replacement Line (.080 Diameter)

Note: Optional Accessory

$

$

Not available

MTD 791-180327

Bump Head Assembly

Note: Optional Accessory; (includes 21-25)

$

$

Not available
