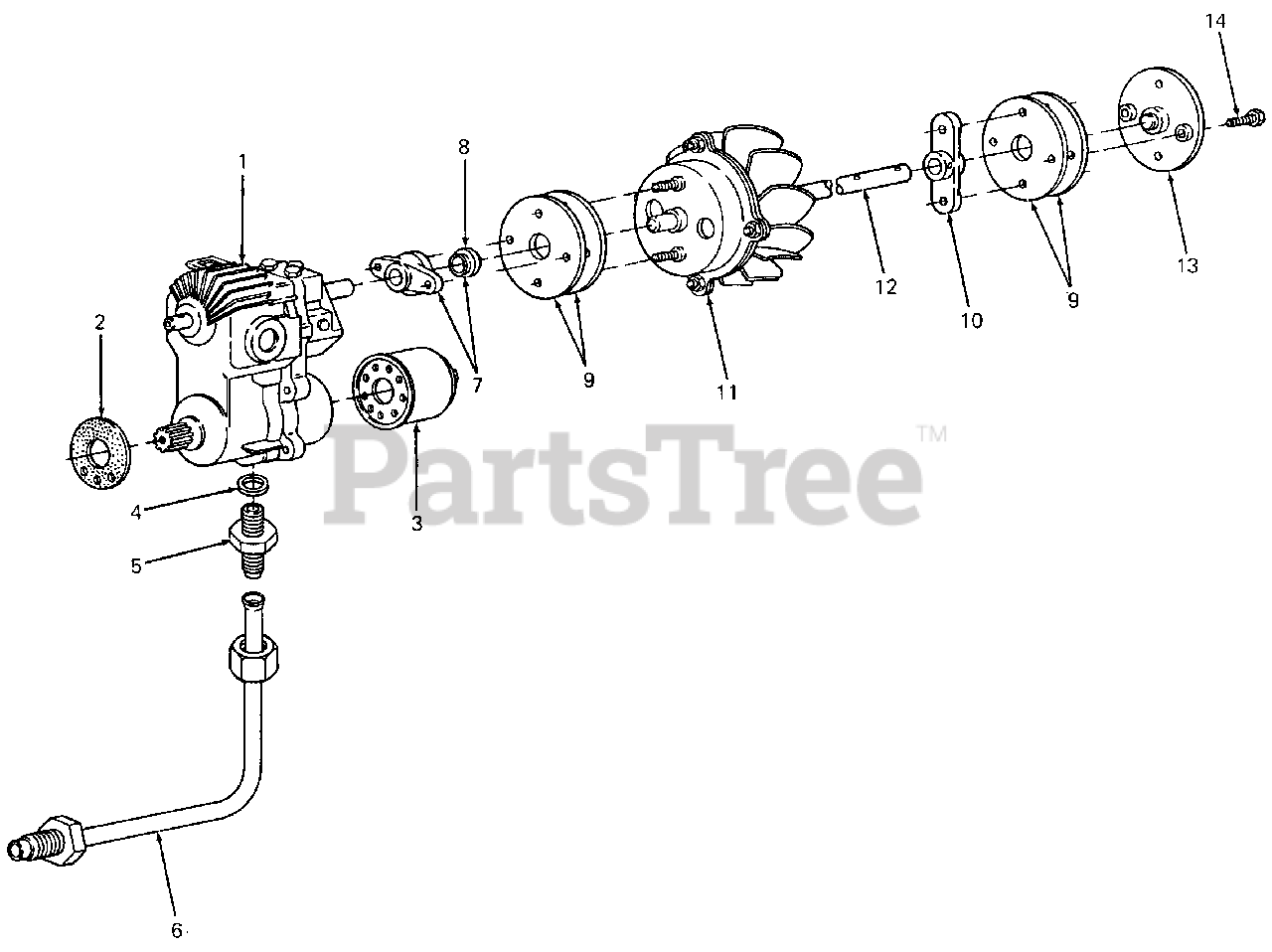

1572 (148-710-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Drive Line Parts Diagram

Super Garden Tractor

Drive Line Parts Diagram

  • Title

1

Cub Cadet 717-3034

Pump, Hydrostatic

Note: NOTE: For components see listing of parts under details of hydrostatic pump

$

$

Currently unavailable

Cub Cadet 710-3120

Bolt, Hex Patch Lock, 3/8-16 X 1.5 Lg GR5

$3.99

$

In Stock, Qty 14

0

2

Cub Cadet 721-3004

Gasket, Front
(Superseded to 921-3004)

$9.99

$

In Stock, Qty 11

0

3

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

4

Cub Cadet 721-3005

O-Ring, 5/8 OD Tube
(Superseded to 921-3005)

$

$

Not available

5

Cub Cadet 727-3009

Connector, 37 Degree

$

$

Not available

6

Cub Cadet 727-3027

Tube Assy

$

$

Not available

7

Cub Cadet 703-1066

Coupling Assy
(Superseded to 903-1066)

Note: (Includes Ref No. 8)

$

$

Not available

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1.75 Lg GR5
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.49

$

In Stock, Qty 16

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 715-3004

Pin, Spirol Spring, 1/8 Dia X 1.25 Lg

$

$

Not available

8

Cub Cadet 741-3004

Bushing, Ball
(Superseded to 941-3004)

$47.99

$

In Stock, Qty 15

0

9

Cub Cadet 722-3000

Disc, Flexible

$26.99

$

In Stock, Qty 20+

0

10

Cub Cadet 748-3003

Arm, Coupling

$

$

Not available

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1.50 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.49

$

In Stock, Qty 16

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 715-3005

Pin, Spirol Spring, 3/8 Dia X 1.75 Lg
(Superseded to 915-0125)

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-1462

Clutch Assy, Drive Shaft

Note: (Includes Ref No. 12)

$

$

Currently unavailable

Cub Cadet 736-0267

Washer, Flat, .385 X .87 X .06 Thk HDN

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 712-0214

Nut, Hex Top Lock, 3/8-24

$5.99

$

In Stock, Qty 20+

0

Cub Cadet 703-1434

Fan, Cooling
(Superseded to 903-1434)

$

$

Not available

Cub Cadet 703-1415

Spacer, Fan

$

$

Not available

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

12

Cub Cadet 738-3063

Shaft, Drive

$159.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-1005A

Bearing Assy, Engine Coupler
(Superseded to 903-1005AP)

$

$

Not available

Cub Cadet 710-3138

Screw, Hex Cap, M8-1.25 X 16 mm Lg GR5

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1.75 Lg GR5
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 726-3028

Retainer, Bolt, 3/8 Dia
(Superseded to 926-3028)

$

$

Not available

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .06 Thk

$3.49

$

In Stock, Qty 16

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$3.99

$

In Stock, Qty 20+

0
