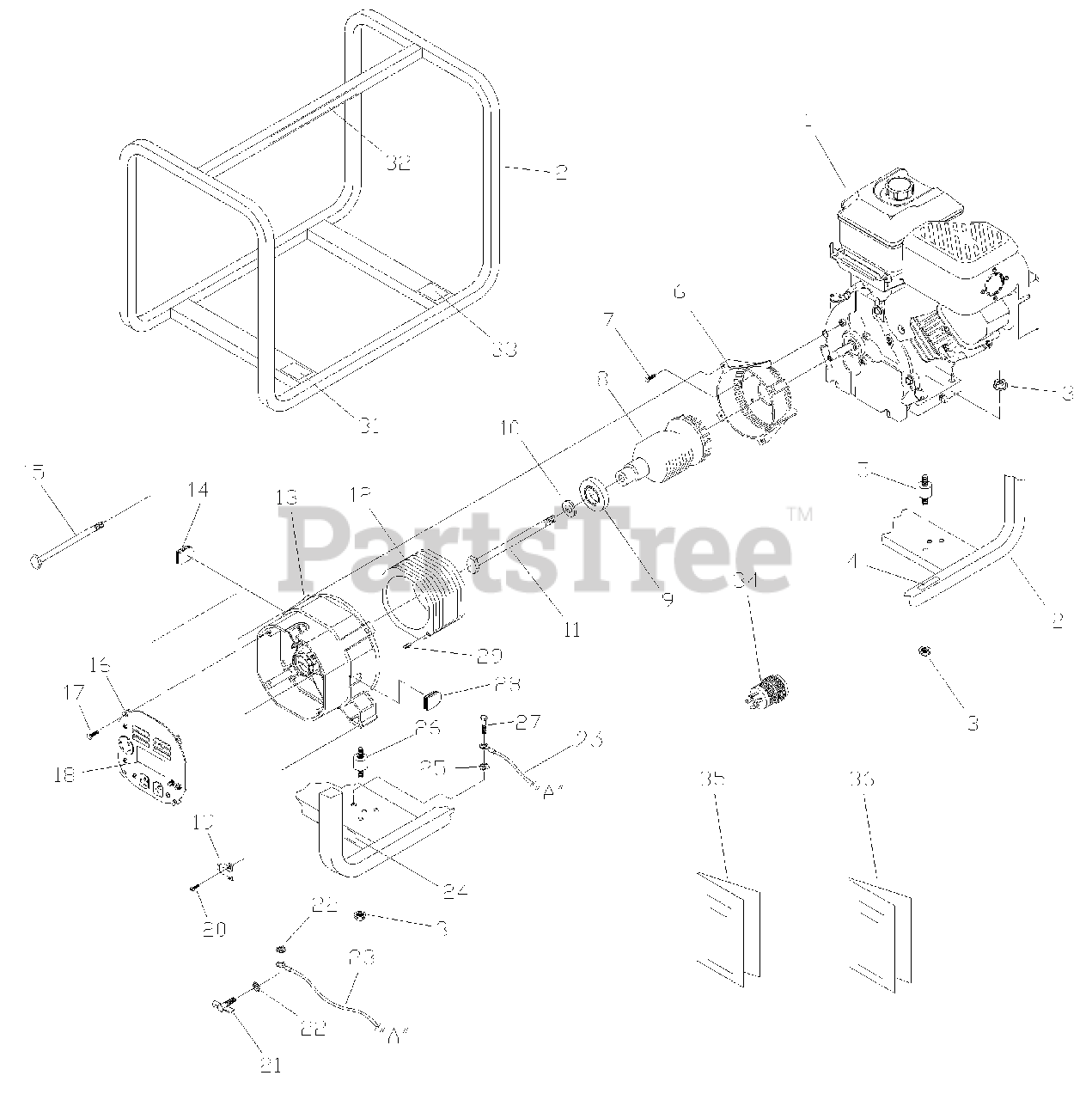

1575-0 - Generac 3,100 Watt Portable Generator Main Unit Parts Diagram

3,100 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

2

Briggs & Stratton A188299

ASSEMBLY, Cradle

$

$

Currently unavailable

3

Briggs & Stratton 67989

NUT, M8 Flanged Serrated
(Superseded to 67989GS)

$3.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 77816

DECAL, Caution Hot Muffler
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 85651

MOUNT, Vibration Engine
(Superseded to 85651GS)

$24.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66365

HOUSING, Engine Adapter
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 86307

CAPSCREW, Hx Hd 5/16"-24 x 3/4"
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 188075

ASSEMBLY, Rotor
(Superseded to 188075GS)

$223.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 96796

WASHER, Flat (special)
(Superseded to 96796GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 24823

BOLT, Rotor 5/16" - 24 x 7.00"
(Superseded to 24823GS)

$18.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 91838J

ASSEMBLY, Stator
(Superseded to 91838JGS)

$

$

Not available

13

Briggs & Stratton 66825B

CARRIER, Rear Bearing

$

$

Currently unavailable

14

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 86308

BOLT, Stator M6-1.0 x 115mm
(Superseded to 86308GS)

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 95003A

ASSY., Control Panel
(Superseded to 95003AGS)

$114.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 74908

SCREW, M5 0.80 x 10mm Taptite
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 188554

DECAL, Control Panel
(Superseded to 188554GS)

$4.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 91825

RECTIFIER, Brush & Bridge

$

$

Not available

20

Briggs & Stratton 66849

SCREW, M5 - .80 x 16mm Taptite
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 86494

SCREW, M6 - 1.0 x 16 Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 26850

WASHER, M6 1/4 Shakeproof

$

$

Not available

23

14353621

WIRE, Ground

$

$

Not available

24

Briggs & Stratton B4986

DECAL, Ground
(Superseded to B4986GS)

$2.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 23762

WASHER, #10 Shakeproof
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 85652

MOUNT, Vibration Alt.
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 17

0

27

Briggs & Stratton B2153

CAPSCREW, Self Driller #10
(Superseded to B2153GS)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 84242

GROMMET, Plastic RBC
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 81917

PIN, Roll, M4 x 10
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 93639

DECAL, Danger (English)

$2.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 188555

DECAL, Unit
(Superseded to 188555GS)

$7.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 99541

DECAL, Start Instructions

$

$

Not available

34

Briggs & Stratton 43483

PLUG, 250V, 20Amp
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 188385

MANUAL, Owners

$

$

Not available

36

Briggs & Stratton 188637

MANUAL, Engine
(Superseded to 188637GS)

$14.99

$

Usually ships in 2-12 days

0
