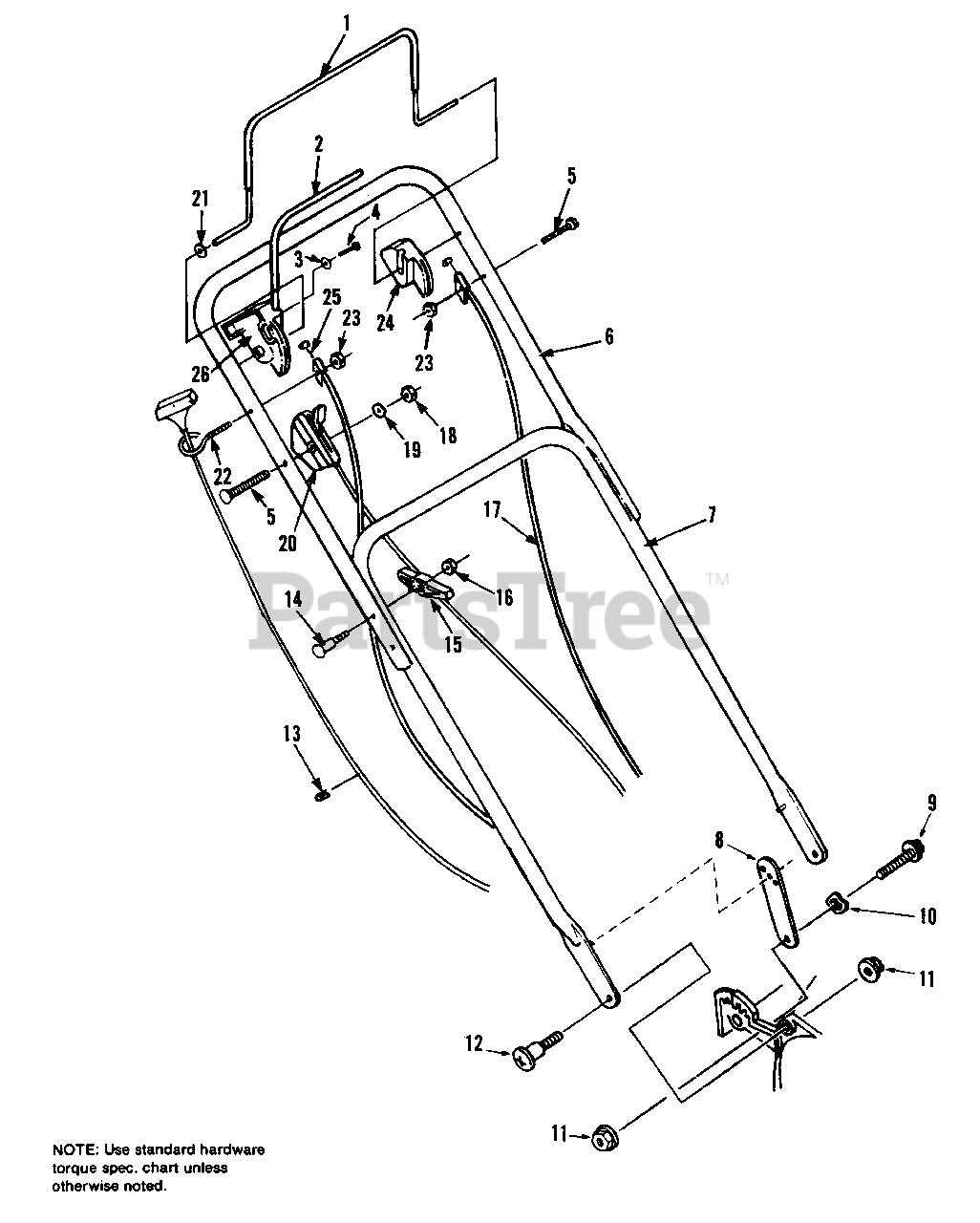

1575 (1691923) - Simplicity Walk-Behind Mower Handles & Controls Group Parts Diagram

Walk-Behind Mower

Handles & Controls Group Parts Diagram

  • Title

1

Simplicity 1612359

BAIL, Brake Control

$

$

Not available

1

Simplicity 1612360

BAIL, Brake Control

Note: Used on Mfg. No. 1691923 only.

$

$

Not available

2

Simplicity 1612404

TRACTION LEVER

Note: Used on Mfg. No. 1691923 only.

$

$

Not available

3

Simplicity 1910531SM

WASHER, #10

Note: Used on Mfg. No. 1691923 only.

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1960001SM

SCREW, Hex Hd., #10-16 x 1/2
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1706229

SCREW, Truss Hd., Phillips (Qty. 1 on 1691922)

$

$

Not available

6

Simplicity 1706233

HANDLE, Upper

$

$

Not available

7

Simplicity 1706234

HANDLE, Lower, w/Pin

$

$

Not available

8

Simplicity 1706236

SUPPORT

$

$

Not available

9

Simplicity 1706238

BOLT

$

$

Not available

10

Simplicity 1706237

WASHER

$

$

Not available

11

Simplicity 1935048SM

NUT, Hex, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1706235

BOLT

$

$

Not available

13

Simplicity 1612319

STOP, Rope

$

$

Not available

14

Simplicity 1960273SM

BOLT
(Superseded to 704421)

$5.49

$

Usually ships in 2-12 days

0

15

Simplicity 1612220

KNOB, Handle

$

$

Not available

16

Simplicity 1917372SM

NUT, Hex Locking, 5/16-19
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1706232

CONTROL, Engine

Note: Used on Mfg. No. 1691923 only.

$

$

Not available

18

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

19

Simplicity 1921880SM

WASHER

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 1706230

CONTROL, Throttle

$

$

Not available

21

Simplicity 1919326SM

WASHER, 5/16

Note: Used on Mfg. No. 1691923 only.

$4.49

$

In Stock, Qty 18

0

22

Simplicity 1612366

EYEBOLT, 1/4-20 x 1-3/4

$

$

Not available

23

Simplicity 1923358SM

NUT, Hex, 1/4-20 (Qty. 1 on 1691922)
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

24

Simplicity 1612365

ACTUATOR, L.H.

Note: Used on Mfg. No. 1691923 only.

$

$

Not available

25

Simplicity 1706231

CONTROL, Engine

Note: Used on Mfg. No. 1691922 only.

$

$

Not available

25

Simplicity 1706222

CONTROL, Engine

Note: Used on Mfg. No. 1691923 only.

$

$

Not available

26

Simplicity 1706228

ACTUATOR, R.H.

Note: Used on Mfg. No. 1691922 only.

$

$

Not available

26

Simplicity 1612364

ACTUATOR, R.H.

Note: Used on Mfg. No. 1691923 only.

$

$

Not available
