1575 (1691923) - Simplicity Walk-Behind Mower Rear Wheels Group (Power-Propelled Models) Parts Diagram

Walk-Behind Mower

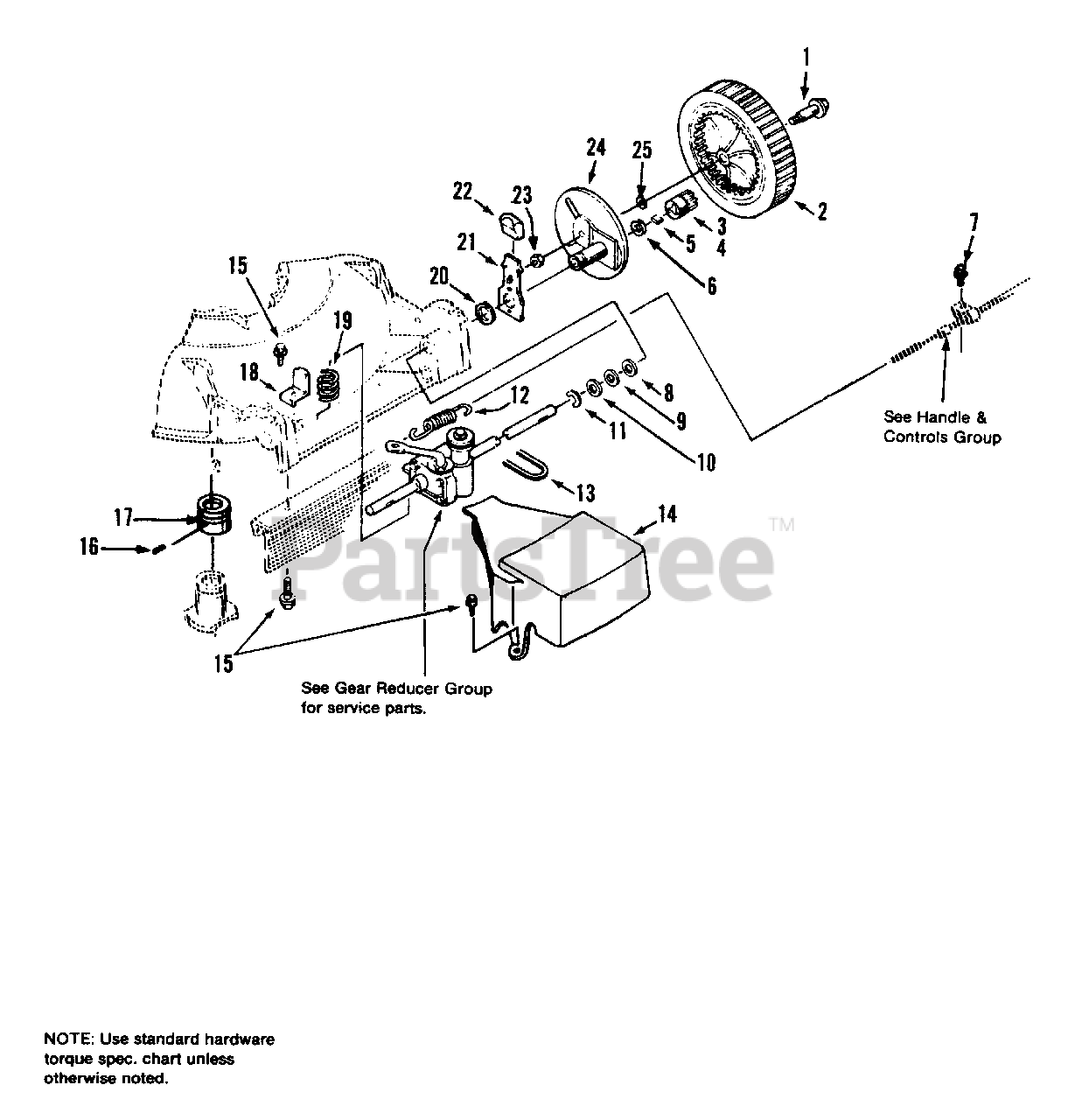

Rear Wheels Group (Power-Propelled Models) Parts Diagram

  • Title

1

Simplicity 1612385

BOLT, Axle, 3/8-16

$

$

Not available

2

Simplicity 1612398

WHEEL & TIRE

$

$

Not available

3

Simplicity 1612208

PINION, R.H.

$

$

Not available

4

Simplicity 1612209

PINION, L.H.

$

$

Not available

5

Simplicity 1612213

PAWL, Pinion

$

$

Not available

6

Simplicity 1612222

WASHER

$

$

Not available

7

Simplicity 1706221

SCREW, Thread Rolling

$

$

Not available

8

Simplicity 1612286

WASHER

$

$

Not available

9

Simplicity 1612214

WASHER, Shim

$

$

Not available

10

Simplicity 2173668SM

WASHER

$9.49

$

In Stock, only 2 left!

0

11

Simplicity 1612288

RING, Eaton

$

$

Not available

12

Simplicity 1612246

SPRING, Extension

$

$

Not available

13

Simplicity 1612157

BELT, Drive

$

$

Not available

14

Simplicity 1706220

COVER, Drive

$

$

Not available

15

Simplicity 1925592SM

SCREW, Hex Hd., 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

16

Simplicity 1706219

SCREW, Set

$

$

Not available

17

Simplicity 1706218

PULLEY, Drive

$

$

Not available

18

Simplicity 1706216

BRACKET

$

$

Not available

19

Simplicity 1706205

SPRING

$

$

Not available

20

Simplicity 1612228

SPACER

$

$

Not available

21

Simplicity 1612347

SPRING, Index

$

$

Not available

22

Simplicity 1612215

KNOB

$

$

Not available

23

Simplicity 1960251SM

NUT, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

24

Simplicity 1612304

SUPPORT, Drive Wheel

$

$

Not available

25

Simplicity 1612242

WASHER

$

$

Not available
