1577-0 - Generac 5,000/6,250 Watt Portable Generator Main Unit Parts Diagram

5,000/6,250 Watt Portable Generator

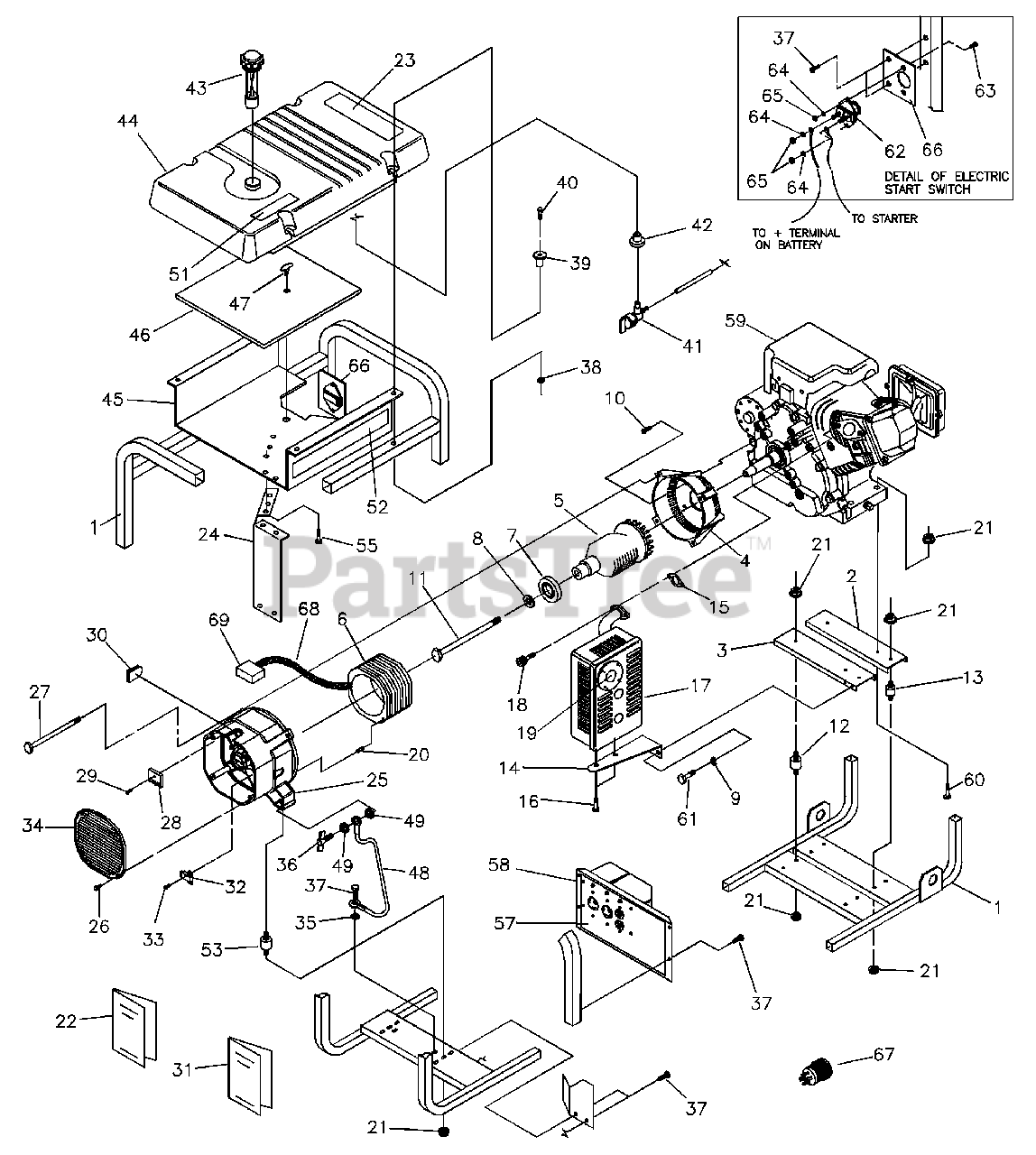

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton A188392

CRADLE

$

$

Currently unavailable

2

Briggs & Stratton A92531

SUPPORT, Engine
(Superseded to A92531GS)

$21.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton A92731

SUPPORT, Engine & Muffler
(Superseded to M92731GS)

$22.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66365G

HOUSING, Engine Adapter
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 91844J

ASSEMBLY, Rotor
(Superseded to 91844JGS)

$

$

Not available

6

Briggs & Stratton 93437A

ASSEMBLY, Stator

$

$

Currently unavailable

7

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796

WASHER, M8 Flat
(Superseded to 96796GS)

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22129

WASHER, M8 Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307

SCREW, 5/16-24 x 3/4 SEMS
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 99383

SCREW, 5/16-24 x 7-3/8"

$

$

Currently unavailable

12

Briggs & Stratton 92609

MOUNT, Vibration
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 82857

MOUNT, Vibration
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 92532

BRACKET, Muffler
(Superseded to 92532GS)

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 188551

GASKET, Exhaust

$

$

Currently unavailable

16

Briggs & Stratton 66476

SCREW, M6-1 x 12 w/Lock Washer
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 188213

MUFFLER
(Superseded to 312711GS)

$

$

Not available

18

Briggs & Stratton 60706

SCREW, 5/16 - 18 x 3/4"

$

$

Currently unavailable

19

Briggs & Stratton 83083

SCREEN, Spark Arrest
(Superseded to 83083GS)

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton 81917

PIN, 4mm x 10 Roll
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 67989

NUT, Flange Serrated
(Superseded to 67989GS)

$3.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 188325

MANUAL, Owners

$

$

Currently unavailable

23

Briggs & Stratton 93826

DECAL, Start Instructions
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B96068

SHIELD, Heat
(Superseded to 192983GS)

$38.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825B

CARRIER, Rear Bearing

$

$

Currently unavailable

26

Briggs & Stratton 74908

TAPTITE, M5-0.8 x 10
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86308A

BOLT, M6-1 x 145mm Stator
(Superseded to 86308AGS)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

29

Briggs & Stratton 66849C

TAPTITE, M5-0.8 x 30
(Superseded to 66849CGS)

$4.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 188826

MANUAL, Engine

$

$

Currently unavailable

32

Briggs & Stratton 91825

ASSEMBLY, Brush Holder

$

$

Not available

33

Briggs & Stratton 66849

TAPTITE, M5-0.8 x 16
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton B4871

COVER, Bearing Carrier
(Superseded to B4871GS)

$9.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 22769

WASHER, #10 Int. Shakeproof
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494

SCREW, M6-1.0 x 16 Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153

SCREW, #10 Self Drilling
(Superseded to B2153GS)

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 77395

NUT, M6 Flange Lock
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 83465

GROMMET, Tank
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

40

Briggs & Stratton 78831B

SCREW, M6-1.0 x 55
(Superseded to 78831BGS)

$

$

Not available

41

Briggs & Stratton 80270

VALVE, Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton B4363

CAP, Fuel Gauge
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton B1998

TANK, Fuel 7-Gal. Assy.
(Superseded to 193500GS)

$

$

Not available

45

Briggs & Stratton B92039

SHIELD, Heat
(Superseded to 208564GS)

$133.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 92665

INSULATION, 2-1/4"
(Superseded to 92665GS)

$16.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 85000

CLIP, Insulation
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

48

14353621

WIRE, Ground

$

$

Not available

49

Briggs & Stratton 26850

WASHER, M6 Shakeproof

$

$

Not available

50

Briggs & Stratton B4986

DECAL, Ground, Green
(Superseded to B4986GS)

$2.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 92982

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 188563

DECAL, Heat Shield

$

$

Currently unavailable

53

Briggs & Stratton 85652

MOUNT, Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 17

0

55

Briggs & Stratton 56893

CRIMPTITE, 10 - 24 x 1/2
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

57

Briggs & Stratton 188562

DECAL, Control Panel

$

$

Currently unavailable

58

Briggs & Stratton 81898

ASSEMBLY, Control Box
(Superseded to 81898GS)

$217.99

$

Usually ships in 2-12 days

0

59

NSP

ENGINE

$

$

Not available

60

Briggs & Stratton 39287

HHCS, M8 - 1.25 x 45
(Superseded to 39287GS)

$3.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 22142

SCREW, 5/16 - 18 x 3/4"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 77282

SWITCH, Starter

$

$

Not available

63

Briggs & Stratton 22287

SCREW, 1/4 - 20 x 3/4"
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 22097

WASHER, M6 Lock
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 22127

NUT, 1/4 - 20 Hex

$

$

Not available

66

Briggs & Stratton 78289

BRACKET, Starter Switch
(Superseded to 78289GS)

$7.49

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 43483

PLUG, 250V, 20A
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 84409

SLEEVING, Flexo, HW 1/2" X 15"

$

$

Currently unavailable

69

Briggs & Stratton 22695

FASTEN, On Tab Housing 6P
(Superseded to 22695GS)

$6.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 22129

Lockwasher, M8
(Superseded to 22129GS)

Note: Battery Tray Components; Not Illustrated

$2.99

$

In Stock, only 2 left!

0

Briggs & Stratton 45771

Hex nut M8

Note: Battery Tray Components; Not Illustrated

$

$

Not available

Briggs & Stratton B96925

Battery tiedown
(Superseded to B96925GS)

Note: Battery Tray Components; Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 96924

J-bolt
(Superseded to 96924GS)

Note: Battery Tray Components; Not Illustrated

$7.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 15453621

Battery cable, positive
(Superseded to 15453621GS)

Note: Battery Tray Components; Not Illustrated

$

$

Not available

Briggs & Stratton 15553621

Battery cable, negative
(Superseded to 15553621GS)

Note: Battery Tray Components; Not Illustrated

$

$

Not available

Briggs & Stratton B96923

Battery tray
(Superseded to B96923GS)

Note: Battery Tray Components; Not Illustrated

$32.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 22145

Flat washer

Note: Battery Tray Components; Not Illustrated

$

$

Not available

Briggs & Stratton 58443

Screws, battery tray
(Superseded to 58443GS)

Note: Battery Tray Components; Not Illustrated

$3.49

$

Usually ships in 2-12 days

0
