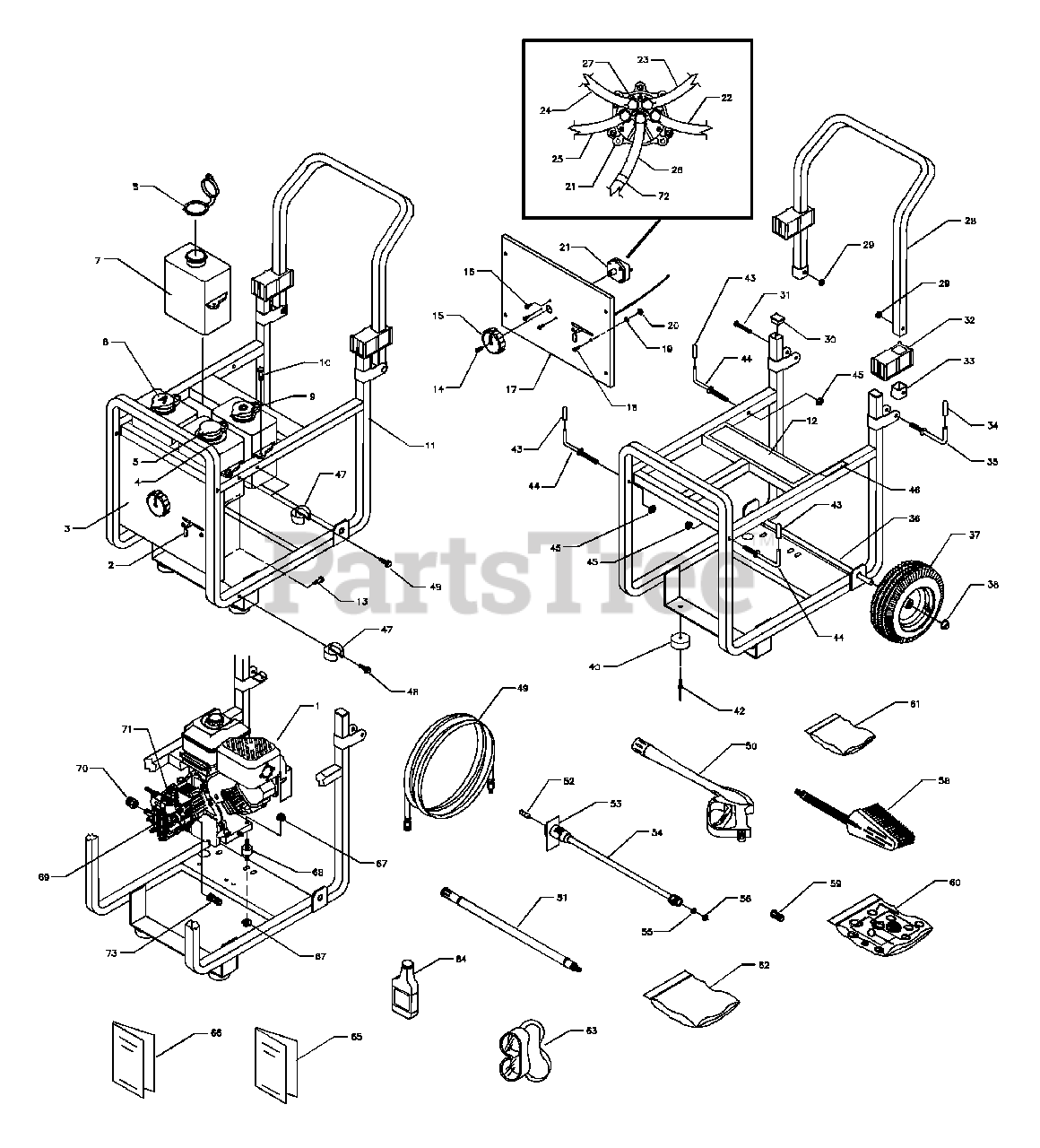

1579-0 - DR 2,300 PSI Pressure Washer Main Unit Parts Diagram

DR 2,300 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

NSP

ENGINE, B&S Intek 5.5 HP

$

$

Not available

2

Briggs & Stratton B3608DGS

LINK, Throttle Control

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 188431GS

DECAL, Control Panel

$

$

Currently unavailable

4

Briggs & Stratton 188414AGS

TAG, System Flush Water

$1.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B3222DGS

CAP, Chem Container "Water"

$4.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B3222AGS

CAP, Chem Container "A"

$5.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B3594GS

ASSY., Chemical Tank 1/2 Gal.
(Superseded to B3594AGS)

$23.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B3222BGS

CAP, Chem Container "B"

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B3222CGS

CAP, Chem Container "C"

$5.49

$

Usually ships in 2-12 days

0

10

BOLT, 1/4"- 20 with Washer

Note: (Purchase Locally)

$

$

Not available

11

Briggs & Stratton A188335GS

CRADLE, Red

$154.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 188845GS

DECAL, Start Instructions
(Superseded to 188857GS)

$109.99

$

Usually ships in 2-12 days

0

13

SELF DRILL, #10 - 16 x 3/4"

Note: (Purchase Locally)

$

$

Not available

14

Briggs & Stratton B3311GS

SCREW, Plastite #10 x .62"

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B3721GS

HANDLE, 4-Way Valve

$8.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B3377GS

SCREW, Plastite #8 x .75"

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton AB3113GS

PANEL, Control Red

$23.99

$

Usually ships in 2-12 days

0

18

SCREW, M5 - 0.8 x 12

Note: (Purchase Locally)

$

$

Not available

19

LOCK WASHER, M5

Note: (Purchase Locally)

$

$

Not available

20

NUT, Hex M5 - 0.8

Note: (Purchase Locally)

$

$

Not available

21

Briggs & Stratton B3306GS

ASSY., Sub 4-Way Valve

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 188401AGS

HOSE, "A" - 7.0"

$

$

Currently unavailable

23

Briggs & Stratton 188401BGS

HOSE, "B" - 8.5"

$

$

Currently unavailable

24

Briggs & Stratton 188401CGS

HOSE, "C" - 11.0"

$

$

Currently unavailable

25

Briggs & Stratton 188401DGS

HOSE, "Water" - 8"

$

$

Currently unavailable

26

Briggs & Stratton B3601DGS

HOSE, Chemical Pump 10.5"
(Superseded to B3601AGS)

$20.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 48031GGS

CLAMP, Hose 13/32"

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton AB2555GS

HANDLE, Red

$

$

Currently unavailable

29

NUT, 1/4" - 20 Flange Locking

Note: (Purchase Locally)

$

$

Not available

30

Briggs & Stratton 46476GS

CAP PLUG, Tubing

$2.49

$

Usually ships in 2-12 days

0

31

BOLT, 1/4"-20 x 1-3/4" Carriage

Note: (Purchase Locally)

$

$

Not available

32

Briggs & Stratton B1779GS

COVER, Hinge

$8.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton B2347GS

END CAP, Tube

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B1460GS

CAP, Vinyl Black

$2.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton B2759GS

HOOK, Square Neck Gun

$3.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 188434GS

AXLE ROD, 1/2" x 22.07"

$8.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 88521GS

ASSY., Wheel & Tire 10"

$93.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 190146GS

PUSHNUT, 1/2"

$9.99

$

In Stock, only 2 left!

0

40

Briggs & Stratton 191413GS

VIBE MOUNT, with Washer

$6.49

$

In Stock, Qty 7

0

42

NSP

RIVET, Blind

$

$

Not available

43

Briggs & Stratton B2759BGS

HOOK, 5/16" - 18"

$4.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton B2516GS

CAP, Vinyl, Black

$2.99

$

Usually ships in 2-12 days

0

45

NUT, 5/16" - 18

Note: (Purchase Locally)

$

$

Not available

46

Briggs & Stratton 77816GS

DECAL, Caution Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton B2427BGS

CLIP, Spring

$9.49

$

Usually ships in 2-12 days

0

48

SCREW, #10 - 16 x 3/4"

Note: (Purchase Locally)

$

$

Not available

49

Briggs & Stratton 187625GS

HOSE, 5/16" x 50'
(Superseded to 205734GS)

$

$

Not available

50

Briggs & Stratton B3263AGS

GUN, High Pressure

$58.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 88934GS

EXTENSION

$54.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94804GS

NOZZLE, Replacement

$9.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 97566GS

TAG, Nozzle Instructions

$1.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton B3335AGS

WAND, Nozzle Hi/Lo
(Superseded to 188792AGS)

$67.99

$

In Stock, only 3 left!

0

55

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$1.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 97837GS

O-RING, Hi Pressure

$3.49

$

In Stock, Qty 9

0

57

Briggs & Stratton 188287GS

KIT, Cleaning Nozzle
(Superseded to 191922GS)

$18.99

$

In Stock, Qty 7

0

58

Briggs & Stratton 88185GS

BRUSH, Utility

$77.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 88935GS

ADAPTER, Brush Extension
(Superseded to B1051GS)

$11.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton B5830GS

KIT, Maintenance

$

$

Not available

61

Briggs & Stratton 188420GS

KIT, Tag

$19.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 188421GS

KIT, 3 Pack Concentrate

$16.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 87815GS

GOGGLES, Safety

$12.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton BB3061BGS

OIL BOTTLE, 20 oz
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

65

Briggs & Stratton 188344GS

MANUAL, Owners

$16.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton B3297GS

MANUAL, Engine

$

$

Not available

67

Briggs & Stratton 67989GS

NUT, Hex Locking Flange M8

$3.49

$

In Stock, Qty 20+

0

68

Briggs & Stratton 21217GS

MOUNT, Rubber Shock

$7.49

$

In Stock, only 1 left!

0

69

Briggs & Stratton 188850DGS

ASSY., Pump

$421.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 21424GS

CONNECTOR, Garden Hose

$12.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton B1288GS

TAG, Breather

$1.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 48031CGS

CLAMP, Hose 1/2"
(Superseded to 691038)

$3.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 185923GS

QUICK CONNECT

$31.99

$

Usually ships in 2-12 days

0
