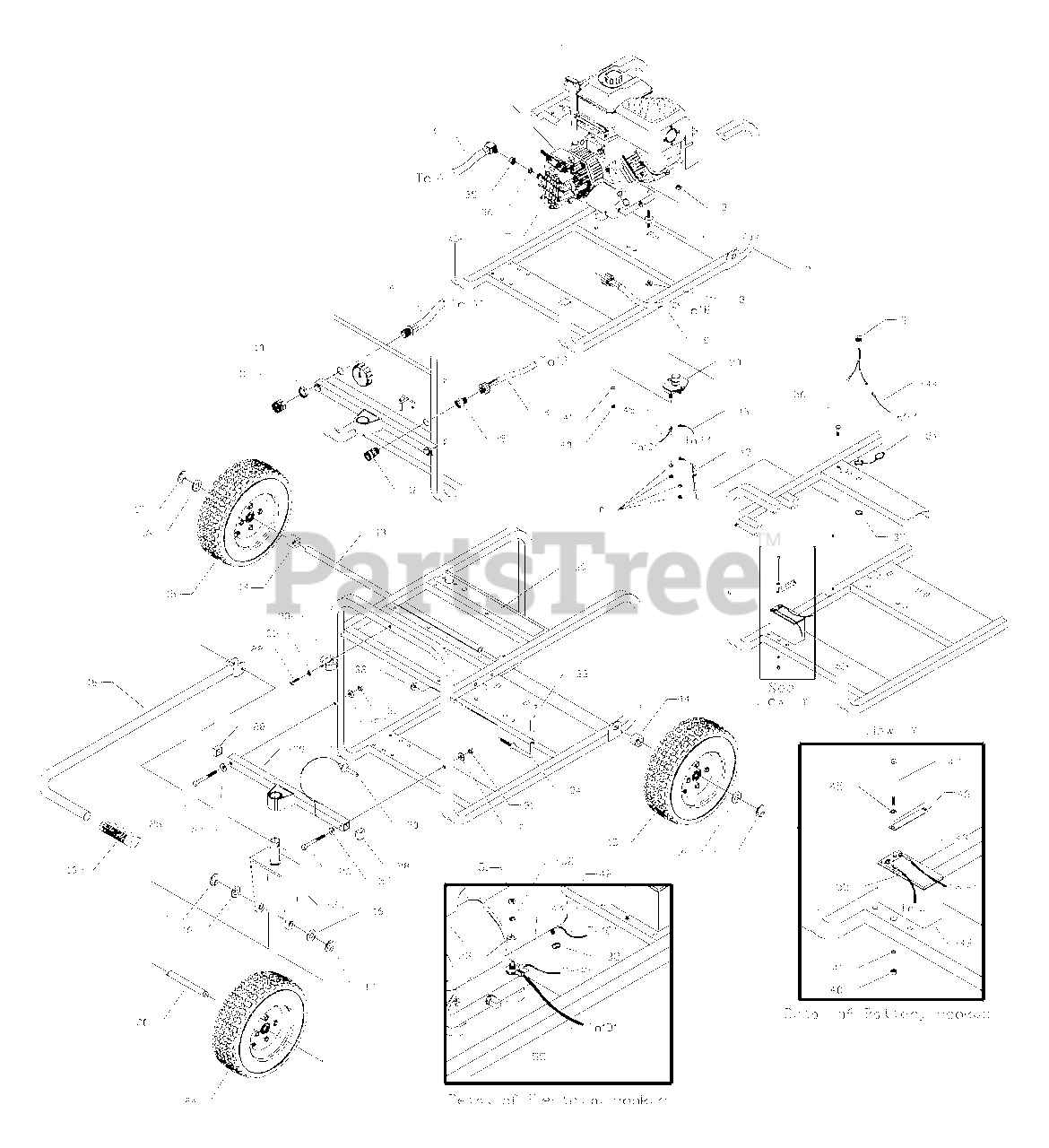

1580-0 - DR 3,000 PSI Pressure Washer Unit (Part 1) Parts Diagram

DR 3,000 PSI Pressure Washer

Unit (Part 1) Parts Diagram

  • Title

1

NSP

ENGINE, Briggs, 6.5 H.P.

$

$

Not available

2

Briggs & Stratton A188346

CRADLE, Powder Coat Red

$

$

Currently unavailable

3

-----

NUT, M8 Flange

Note: (Purchase Locally)

$

$

Not available

4

Briggs & Stratton 21217GS

MOUNT, Vibration

$7.49

$

In Stock, only 1 left!

0

5

Briggs & Stratton B1288GS

TAG, Breather Cap

$1.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 188635GS

HOSE, Water Inlet

$60.99

$

Usually ships in 2-12 days

0

7

-----

PUMP, Med, 3/4, 7.5 HS

Note: (For replacement, order 198347GS)

$

$

Not available

7

Briggs & Stratton 198347GS

REPLACEMENT PUMP ASSEMBLY
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 188654GS

HOSE, Water Outlet

$33.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 188441GS

ASSEMBLY, Adapter

$81.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B3735GS

NUT,Water Inlet

$18.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 21424GS

CONNECTOR, Garden Hose

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 95518GS

QUICK CONNECT
(Superseded to 312981GS)

$39.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93963AGS

AXLE, 15.88 x 681

$21.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 89635GS

SPACER, Wheel
(Superseded to B89635GS)

$29.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 89742GS

WHEEL, 3.5 x 12

$92.99

$

Usually ships in 2-12 days

0

16

-----

WASHER, Flat, 5/8"

Note: (Purchase Locally)

$

$

Not available

17

Briggs & Stratton 87005GS

PIN, Quick Release

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton AB4122GS

HANDLE

$13.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B4134GS

GRIP

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 93693EGS

AXLE, 15.88 x 150
(Superseded to 191267EGS)

$25.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 186569GS

BUMPER, Recess

$4.99

$

In Stock, only 1 left!

0

22

-----

SCREW, #10 - 16 x 3/4"

Note: (Purchase Locally)

$

$

Not available

23

Briggs & Stratton B2427BGS

CLIP, Spring

$9.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B4905GS

WHEEL, 4.0 x 12

$130.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton AB3375GS

WELDMENT, Fork Pivot

$20.99

$

Usually ships in 2-12 days

0

26

-----

HHCS, M8 - 1.25 x 70

Note: (Purchase Locally)

$

$

Not available

27

Briggs & Stratton 96796GS

WASHER, 22.2 OD x 8.4 ID x 3 Thk

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 46476GS

PLUG, Plastic, 1 Sq. x 16 GA Tube

$2.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton AB4115GS

ASSY., Pivot

$26.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton B4135GS

PIN, Handle Release

$6.99

$

Usually ships in 2-12 days

0

31

-----

NUT, M8 - 1.25 Lock

Note: (Purchase Locally)

$

$

Not available

32

-----

NUT, 5/16" - 18"

Note: (Purchase Locally)

$

$

Not available

33

Briggs & Stratton B2516GS

CAP, Vinyl

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B2759BGS

HOOK, 5/16" - 18"

$4.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 188651GS

ADAPTER, M20 - 1.5

$7.99

$

Usually ships in 2-12 days

0

36

-----

WASHER

Note: (Purchase Locally)

$

$

Not available

37

Briggs & Stratton 186166GS

ASSEMBLY, Coaxial Jack

$13.99

$

Usually ships in 2-12 days

0

38

-----

LOCKNUT, 1/4" - 20, Flange

Note: (Purchase Locally)

$

$

Not available

39

Briggs & Stratton 188358GS

DECAL, Start Instructions

$

$

Currently unavailable

40

-----

NUT, 1/4" - 20

Note: (Purchase Locally)

$

$

Not available

41

-----

LOCKWASHER, 1/4"

Note: (Purchase Locally)

$

$

Not available

42

Briggs & Stratton 185604GS

BATTERY

$99.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 185931EGS

WIRE, Red, #13

$7.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 185973BGS

WIRE, Black, #0

$7.49

$

Usually ships in 2-12 days

0

45

-----

WASHER, 1/4"

Note: (Purchase Locally)

$

$

Not available

46

Briggs & Stratton A187081GS

BRACKET, Battery
(Superseded to B187081GS)

$8.49

$

Usually ships in 2-12 days

0

47

-----

HHCS, 1/4" - 20 x 4-1/2"

Note: (Purchase Locally)

$

$

Not available

48

Briggs & Stratton 185939EGS

WIRE, Red, #16

$6.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 186748GS

ASSEMBLY, Diode

$5.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 77282GS

SWITCH, Starter

$76.99

$

Usually ships in 2-12 days

0

51

-----

NUT, Hex M8 - 1.25

Note: (Purchase Locally)

$

$

Not available

52

-----

LOCKWASHER, M8

Note: (Purchase Locally)

$

$

Not available

53

-----

WASHER, Flat M8

Note: (Purchase Locally)

$

$

Not available

54

Briggs & Stratton 186133GS

COVER, DC Jack

$6.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 185931FGS

WIRE, Black, #55

$6.99

$

Usually ships in 2-12 days

0

56

-----

HHCS, 1/4" - 20 x 3/4"

Note: (Purchase Locally)

$

$

Not available

32

-----

NUT, 5/16"-18

Note: (Purchase Locally)

$

$

Not available

33

Briggs & Stratton B2516GS

CAP, Vinyl

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B2759BGS

HOOK, 5/16-18

$4.99

$

Usually ships in 2-12 days

0
