1581-0 - DR 3,500 PSI Pressure Washer Pump Parts Diagram

DR 3,500 PSI Pressure Washer

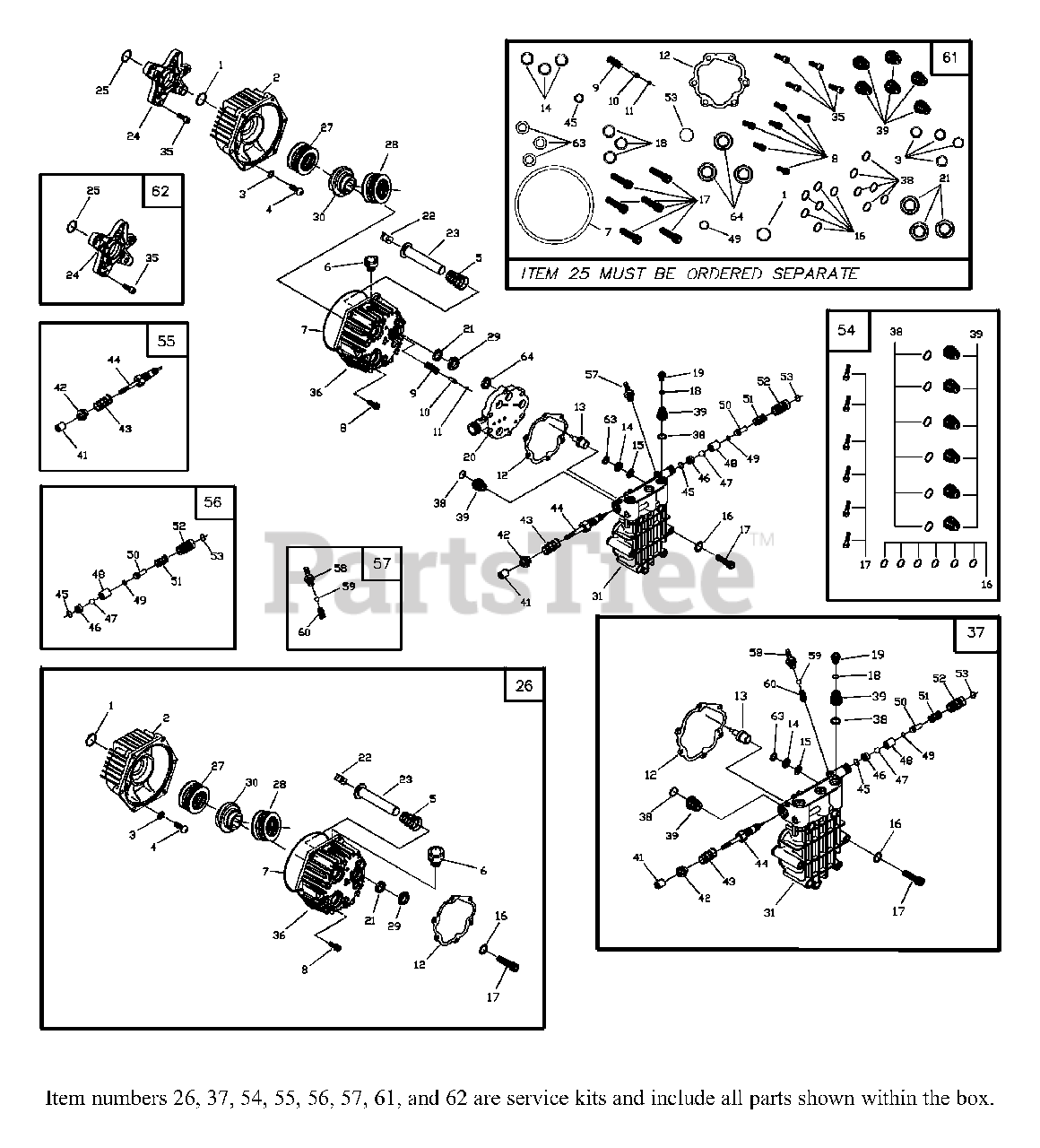

Pump Parts Diagram

  • Title

1

Briggs & Stratton B2218GS

O-RING, Engine Adapter

$3.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton B2260GS

HOUSING, Cam

$34.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B2217GS

O-RING, Engine Adapter Bolt

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton B2261BGS

SCREW

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 96400GS

SPRING, Piston Return

$4.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 99735GS

ASSY, Oil Breather

$12.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 93790GS

O-RING, Crankcase

$6.49

$

In Stock, only 3 left!

0

8

Briggs & Stratton 40945GS

SCREW

$3.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 93652GS

SPRING, Thermal By-Pass

$6.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 95416GS

PISTON, Thermal By-Pass

$3.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 93876GS

O-RING, Thermal By-Pass

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton A2069GS

GASKET, Head

$4.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 93644GS

ACTUATOR, Thermal By-Pass

$24.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 96053GS

SEAL, High Pressure

$12.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 96015GS

RING, Bearing

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B2665GS

WASHER, Steel Special

$3.49

$

In Stock, Qty 5

0

17

Briggs & Stratton A2013GS

BOLT

$5.99

$

In Stock, Qty 5

0

18

Briggs & Stratton 97840GS

O-RING, Cap

$5.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 97841GS

CAP, Outlet Port

$

$

Not available

20

Briggs & Stratton A1320GS

SPACER PLATE

$

$

Not available

21

Briggs & Stratton B3286GS

SEAL, Oil Piston

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 94944GS

SHOE, Piston Pivot

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 99427GS

ASSY, Ceramic Piston & Cap

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B3672DGS

ADAPTER, Engine

$20.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 185726GS

O-RING, Engine Adapter

$13.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 186216AGS

KIT, Crankcase, 7.5

$167.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 188869GS

KIT, Complete Head

$262.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 185933GS

KIT, Check Valve

$49.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton B4179GS

KIT, Unloader Spindle

$61.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton B3510GS

KIT, High Pressure Outlet

$39.99

$

In Stock, only 1 left!

0

57

Briggs & Stratton 185943GS

KIT, Chemical Injector

$5.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 185926GS

KIT, O-Ring Sea Is

$

$

Not available

62

Briggs & Stratton 188791GS

KIT, ENGINE ADAPTER

$1.49

$

Usually ships in 2-12 days

0
