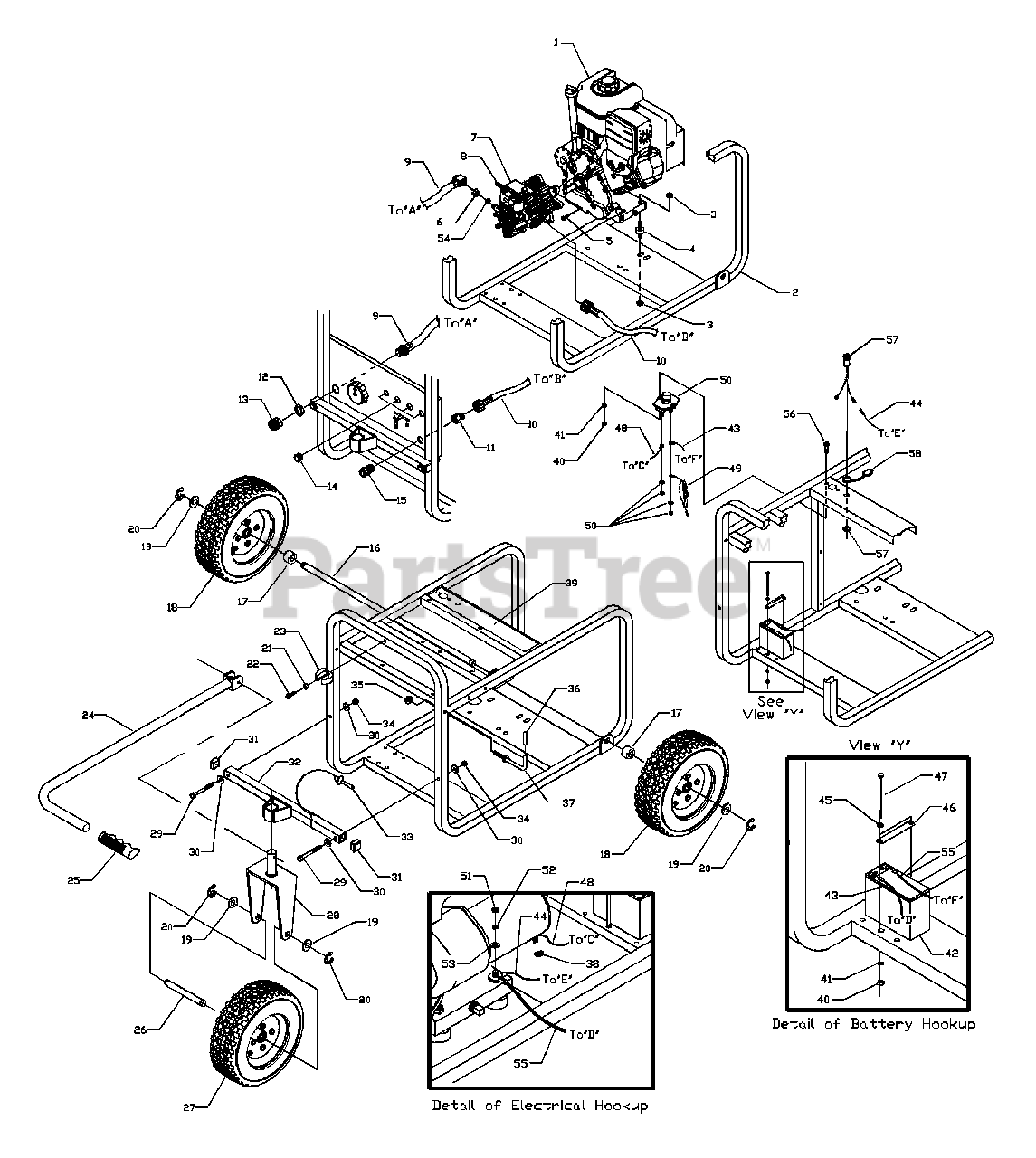

1581-0 - DR 3,500 PSI Pressure Washer Unit (Part 1) Parts Diagram

DR 3,500 PSI Pressure Washer

Unit (Part 1) Parts Diagram

  • Title

2

Briggs & Stratton A188346GS

CRADLE

$167.99

$

Usually ships in 2-12 days

0

3

NUT, M8 Flange

Note: (Purchase Locally)

$

$

Not available

4

Briggs & Stratton 21217GS

MOUNT, Vibration

$7.49

$

In Stock, only 1 left!

0

5

SHCS, 5/16" - 24 x 1"

Note: (Purchase Locally)

$

$

Not available

6

Briggs & Stratton 188651GS

ADAPTER, M20 - 1.5

$7.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B1288GS

TAG, Breather Cap

$1.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 185669SGS

ASSY., Pump

$

$

Currently unavailable

9

Briggs & Stratton 188635GS

HOSE, Water Inlet

$60.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 188654GS

HOSE, Outlet, Water

$33.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 188441GS

ASSEMBLY, Adapter

$81.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B3735GS

NUT,Water Inlet

$18.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 21424GS

CONNECTOR, Garden Hose

$12.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 30809GS

GROMMET, Rubber

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 95518GS

QUICK CONNECT
(Superseded to 312981GS)

$39.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 93693AGS

AXLE ROD, 15.88 x 681
(Superseded to 191267AGS)

$89.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 89635GS

SPACER, Wheel
(Superseded to B89635GS)

$29.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 89742GS

WHEEL, 3.5 x 12

$92.99

$

Usually ships in 2-12 days

0

19

WASHER, Flat 5/8"

Note: (Purchase Locally)

$

$

Not available

20

Briggs & Stratton 87005GS

PIN, Quick Release

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 186569GS

BUMPER, Recess

$4.99

$

In Stock, only 1 left!

0

22

SCREW, #10 - 16 x 3/4"

Note: (Purchase Locally)

$

$

Not available

23

Briggs & Stratton B2427BGS

CLIP, Spring

$9.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton AB4122GS

HANDLE

$13.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B4134GS

GRIP

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 93693EGS

AXLE, 15.88 x 150
(Superseded to 191267EGS)

$25.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B4905GS

WHEEL, 4.0 x 12

$130.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton AB3375GS

WELDMENT, Fork Pivot

$20.99

$

Usually ships in 2-12 days

0

29

HHCS, M8 - 1.25 x 70

Note: (Purchase Locally)

$

$

Not available

30

Briggs & Stratton 96796GS

WASHER, 22.2 OD x 8.4 ID x 3 Thk

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 46476GS

PLUG, Plastic.,1 Sq. x 16 GA Tube

$2.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton AB4115GS

ASSY., Pivot

$26.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton B4135GS

PIN, Handle Release

$6.99

$

Usually ships in 2-12 days

0

34

NUT, M8 - 1.25 Lock

Note: (Purchase Locally)

$

$

Not available

35

NUT, 5/16" - 18"

Note: (Purchase Locally)

$

$

Not available

36

Briggs & Stratton B2516GS

CAP, Vinyl

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2759BGS

HOOK, 5/16" - 18"

$4.99

$

Usually ships in 2-12 days

0

38

LOCKNUT, 1/4"-20, Flange

Note: (Purchase Locally)

$

$

Not available

39

Briggs & Stratton 188561GS

DECAL, Start Instructions

$

$

Currently unavailable

40

NUT, 1/4"-20

Note: (Purchase Locally)

$

$

Not available

41

LOCKWASHER, 1/4" - M6

Note: (Purchase Locally)

$

$

Not available

42

Briggs & Stratton 187079GS

BATTERY

$

$

Not available

43

Briggs & Stratton 185931EGS

WIRE, Red, #13

$7.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 185973BGS

WIRE, Black, #0

$7.49

$

Usually ships in 2-12 days

0

45

WASHER, 1/4"

Note: (Purchase Locally)

$

$

Not available

46

Briggs & Stratton A187081GS

BRACKET, Battery
(Superseded to B187081GS)

$8.49

$

Usually ships in 2-12 days

0

47

HHCS, 1/4" - 20 x 5"

Note: (Purchase Locally)

$

$

Not available

48

Briggs & Stratton 185939EGS

WIRE, Red, #16

$6.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 186748GS

ASSEMBLY, Diode

$5.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 77282GS

SWITCH, Starter

$76.99

$

Usually ships in 2-12 days

0

51

NUT, Hex M8 - 1.25

Note: (Purchase Locally)

$

$

Not available

52

LOCKWASHER, M8

Note: (Purchase Locally)

$

$

Not available

53

WASHER, Flat M8

Note: (Purchase Locally)

$

$

Not available

54

WASHER

Note: (Purchase Locally)

$

$

Not available

55

Briggs & Stratton 185931FGS

WIRE, Black, #55

$6.99

$

Usually ships in 2-12 days

0

56

HHCS, 1/4" - 20 x 3/4"

Note: (Purchase Locally)

$

$

Not available

57

Briggs & Stratton 186166GS

ASSY., Coaxial Jack

$13.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 186133GS

COVER, DC Jack

$6.49

$

Usually ships in 2-12 days

0

35

NUT, 5/16" - 18"

Note: (Purchase Locally)

$

$

Not available

36

Briggs & Stratton B2516GS

CAP, Vinyl

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2759BGS

HOOK, 5/16" - 18

$4.99

$

Usually ships in 2-12 days

0
