16 H - Husqvarna Hedge Trimmer (1990-02) CARBURETOR DETAILS Parts Diagram

Hedge Trimmer

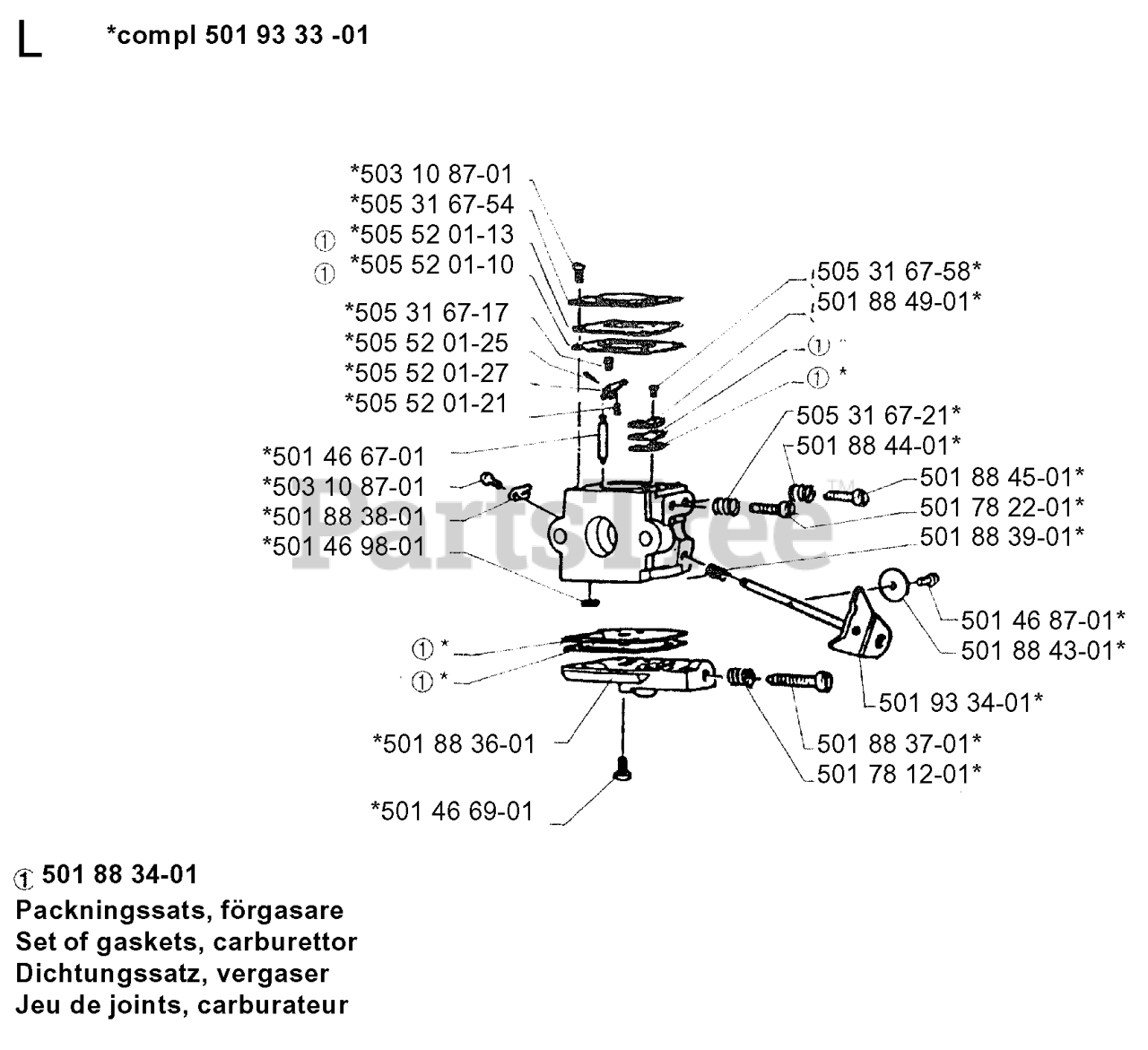

CARBURETOR DETAILS Parts Diagram

  • Title

505 52 01-13

Husqvarna 505520113

DIAPHRAGM
(Superseded to 504130808)

Note: 501 88 34-01 SET OF GASKETS, CARBURETTOR

$8.99

$

In Stock, only 2 left!

0

501 93 34-01

Husqvarna 501933401

THROTTLE SHAFT ASSEMBLY NLA

$

$

Not available

505 31 67-21

Husqvarna 505316721

PRESSURE SPRING
(Superseded to 505316737)

$3.49

$

In Stock, only 2 left!

0

501 46 87-01

Husqvarna 501468701

SCREW

$6.49

$

Usually ships in 3-10 days

0

505 31 67-58

Husqvarna 505316758

SCREW NLA

$

$

Not available

501 46 69-01

Husqvarna 501466901

SCREW

$3.99

$

In Stock, Qty 5

0

501 88 49-01

Husqvarna 501884901

PLATE

$

$

Not available

501 88 39-01

Husqvarna 501883901

SPRING

$

$

Not available

501 88 44-01

Husqvarna 501884401

SPRING
(Superseded to 530035023)

$0.99

$

Usually ships in 3-10 days

0

501 88 36-01

Husqvarna 501883601

PUMP COVER NLA

$

$

Not available

501 78 22-01

Husqvarna 501782201

H-NEEDLE

$

$

Not available

505 52 01-21

Husqvarna 505520121

LEVER SPRING

$

$

Not available

505 31 67-54

Husqvarna 505316754

DIAPHRAGM COVER

$4.99

$

Usually ships in 3-10 days

0

501 93 33 -01

Husqvarna 501933301

CARBURETOR
(Superseded to 503281319)

$

$

Not available

501 88 38-01

Husqvarna 501883801

CLIP

$

$

Not available

505 52 01-25

Husqvarna 505520125

FULCRUM PIN

$3.49

$

In Stock, only 3 left!

0

501 88 37-01

Husqvarna 501883701

IDLE SCREW NLA

$

$

Not available

501 78 12-01

Husqvarna 501781201

SPRING NLA

$

$

Not available

503 10 87-01

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, Qty 5

0

501 88 43-01

Husqvarna 501884301

THROTTLE FLAP NLA

$

$

Not available

501 46 67-01

Husqvarna 501466701

INLET NEEDLE
(Superseded to 503117001)

$11.99

$

In Stock, Qty 11

0

505 52 01-10

Husqvarna 505520110

GASKET, METERING SIDE

Note: 501 88 34-01 SET OF GASKETS, CARBURETTOR

$

$

Not available

505 31 67-17

Husqvarna 505316717

SCREW

$3.49

$

In Stock, Qty 5

0

501 46 98-01

Husqvarna 501469801

SCREEN
(Superseded to 501666101)

$6.99

$

Usually ships in 3-10 days

0

501 88 45-01

Husqvarna 501884501

NEEDLE, LO SPEED NLA

$

$

Not available

505 52 01-27

Husqvarna 505520127

LEVER

$5.99

$

Usually ships in 3-10 days

0
