16 H - Husqvarna Hedge Trimmer (1990-02) HANDLE Parts Diagram

Hedge Trimmer

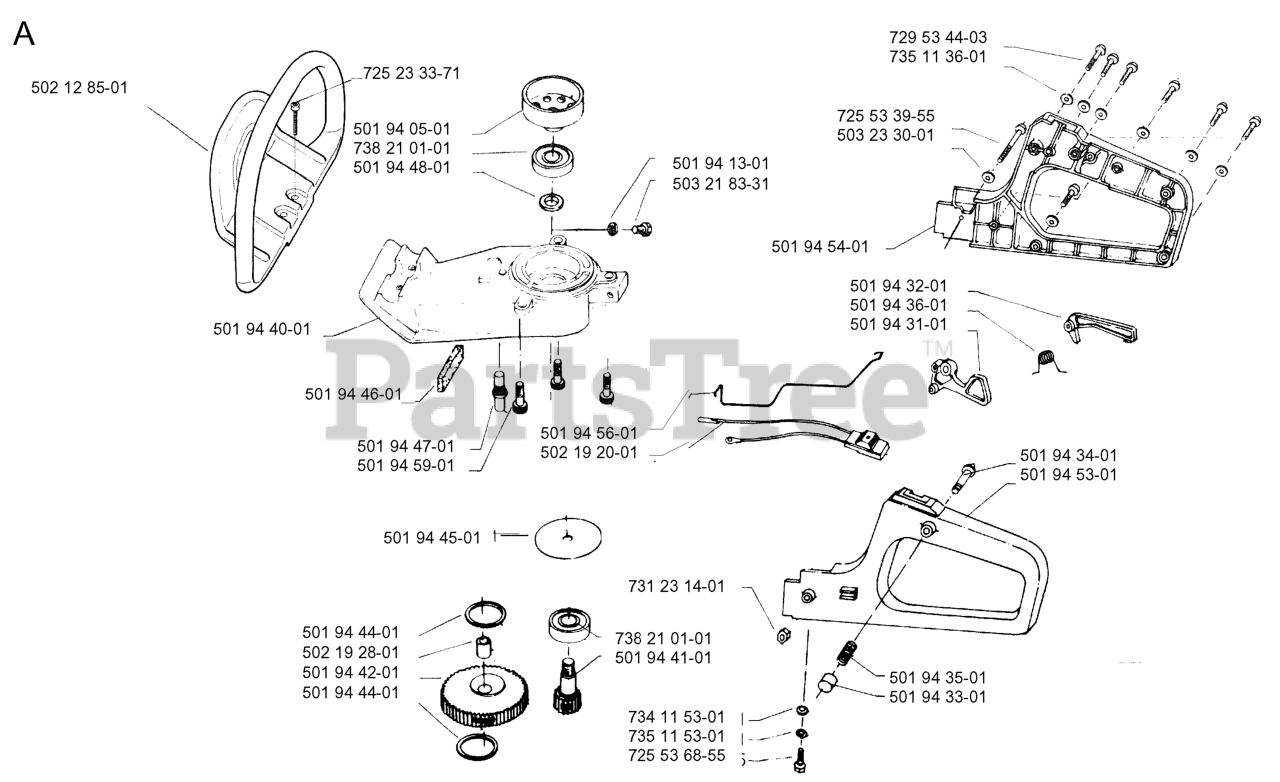

HANDLE Parts Diagram

  • Title

501 94 40-01

Husqvarna 501944001

NEEDS DESCRIPTION

$

$

Not available

502 12 85-01

Husqvarna 502128501

HANDLE ASS'Y

$

$

Not available

501 94 32-01

Husqvarna 501943201

LOCK LEVER

$

$

Not available

738 21 01-01

Husqvarna 738210101

BEARING BALL 6001
(Superseded to 530032125)

$18.99

$

Usually ships in 3-10 days

0

731 23 14-01

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

725 53 39-55

Husqvarna 725533955

SCREW MC6S 5X40
(Superseded to 503200240)

$6.49

$

In Stock, only 4 left!

0

501 94 35-01

Husqvarna 501943501

SPRING

$

$

Not available

502 19 20-01

Husqvarna 502192001

STOP SWITCH

$

$

Not available

501 94 54-01

Husqvarna 501945401

NEEDS DESCRIPTION

$

$

Not available

735 11 53-01

Husqvarna 735115301

SPRING WASHER

$4.99

$

In Stock, only 1 left!

0

501 94 53-01

Husqvarna 501945301

HANDLE (L)

$

$

Not available

501 94 36-01

Husqvarna 501943601

SPRING

$

$

Not available

502 19 28-01

Husqvarna 502192801

SUPPORT BUSHING

$

$

Not available

734 11 53-01

Husqvarna 734115301

Washer

$

$

Not available

501 94 05-01

Husqvarna 501940501

CLUTCH

$

$

Not available

501 94 44-01

Husqvarna 501944401

SPACER

$

$

Not available

501 94 33-01

Husqvarna 501943301

CATCH

$

$

Not available

501 94 31-01

Husqvarna 501943101

THROTTLE LEVER
(Superseded to 531003094)

$

$

Not available

501 94 48-01

Husqvarna 501944801

SLEEVE

$

$

Not available

725 23 33-71

Husqvarna 7252333-71

Bolt

$

$

Currently unavailable

503 21 83-31

Husqvarna 503218331

Screw 6x10

$

$

Not available

501 94 13-01

Husqvarna 501941301

Plain Washer (M6)

$

$

Not available

729 53 44-03

Husqvarna 729534403

TAPPING SCREW
(Superseded to 729534401)

$

$

Not available

501 94 45-01

Husqvarna 501944501

SPACER

$

$

Not available

503 23 30-01

Husqvarna 503233001

$

$

Currently unavailable

501 94 59-01

Husqvarna 501945901

HANDLE

$

$

Not available

725 53 68-55

Husqvarna 725536855

SCREW MC6S 6X16

$6.49

$

In Stock, Qty 20+

0

501 94 46-01

Husqvarna 501944601

GASKET

$

$

Not available

501 94 41-01

Husqvarna 501944101

PINION

$

$

Not available

501 94 56-01

Husqvarna 501945601

THROTTLE ROD

$

$

Not available

735 11 36-01

Husqvarna 735113601

SPRING WASHER 4.1X7.1

$

$

Not available

501 94 47-01

Husqvarna 501944701

PIN

$

$

Not available

501 94 42-01

Husqvarna 501944201

GEAR

$

$

Not available

501 94 34-01

Husqvarna 501943401

PIN
(Superseded to 531003096)

$

$

Not available
