16 H - Husqvarna Hedge Trimmer (1990-02) STARTER Parts Diagram

Hedge Trimmer

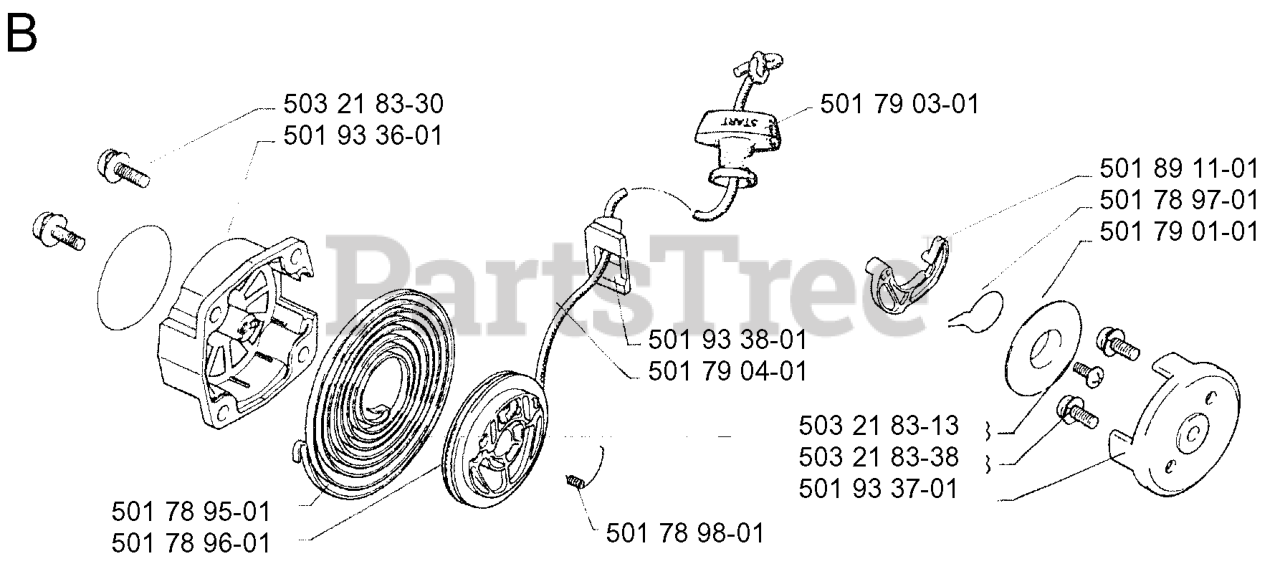

STARTER Parts Diagram

  • Title

503 21 83-30

Husqvarna 503218330

SCREW NLA

$

$

Not available

501 78 96-01

Husqvarna 501789601

STARTER PULLEY

$

$

Not available

501 93 36-01

Husqvarna 501933601

STARTER HOUSING

$

$

Not available

501 78 95-01

Husqvarna 501789501

RECOIL SPRING

$

$

Not available

503 21 83-38

Husqvarna 5032183-38

Screw

$

$

Currently unavailable

501 93 37-01

Husqvarna 501933701

DRIVER

$

$

Not available

501 78 98-01

Husqvarna 501789801

SPRING

$

$

Not available

501 79 04-01

Husqvarna 5017904-01

Starter Rope

$

$

Currently unavailable

501 79 01-01

Husqvarna 501790101

FRICTION PLATE

$

$

Not available

501 93 38-01

Husqvarna 501933801

GROMMET

$

$

Not available

501 78 97-01

Husqvarna 501789701

FRICTION SPRING

$

$

Not available

501 89 11-01

Husqvarna 501891101

RATCHET

$

$

Not available

503 21 83-13

Husqvarna 503218313

SCREW 5X11

$

$

Not available

501 79 03-01

Husqvarna 501790301

STARTER HANDLE

$

$

Not available
