16 - Husqvarna Chainsaw, Electric (SN: 19931800001 - 19954000000) CHASSIS / FRAME Parts Diagram

Chainsaw, Electric

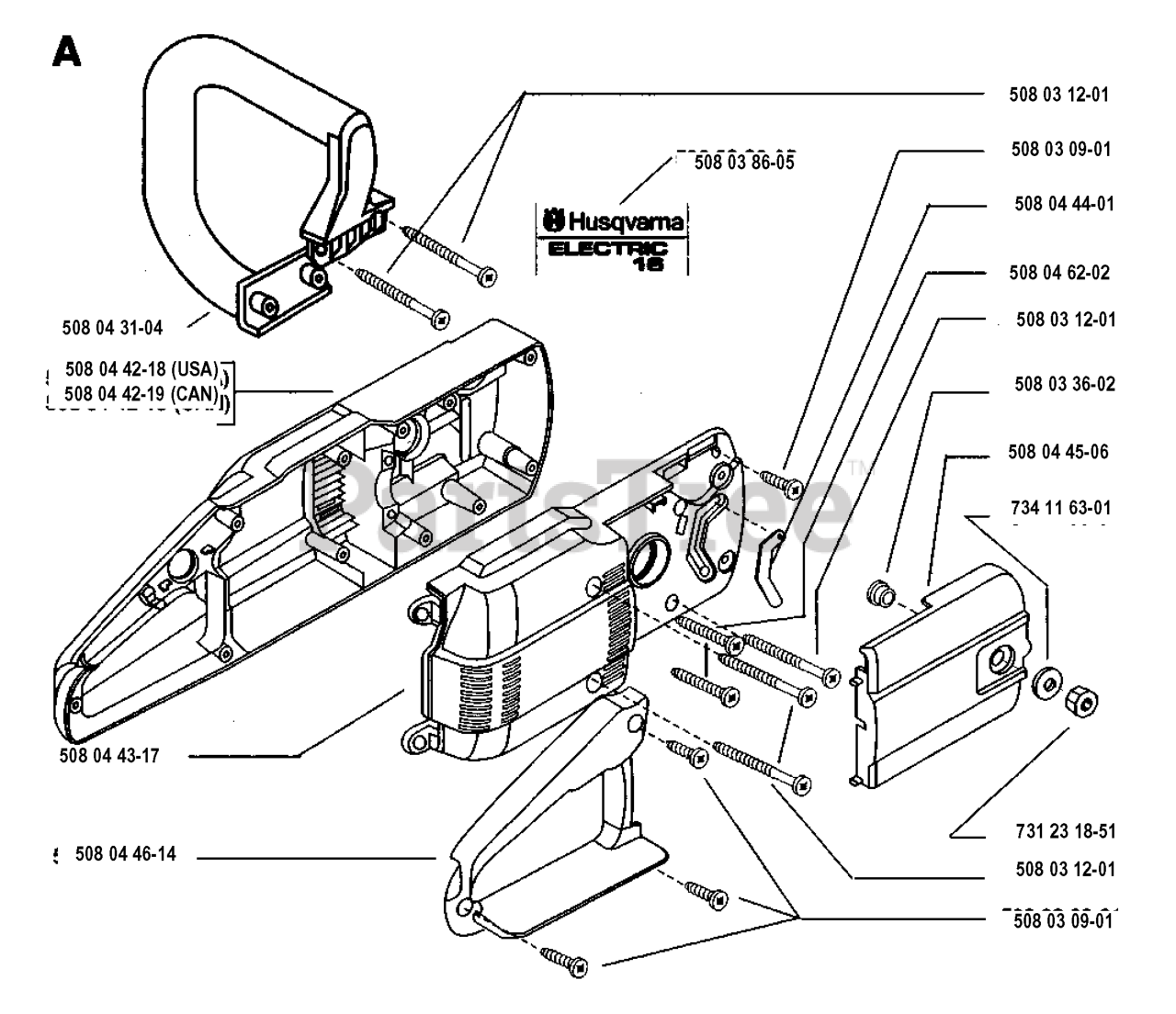

CHASSIS / FRAME Parts Diagram

  • Title

508 04 31-04

Husqvarna 508043104

FRONT HANDLE
(Superseded to 505034501)

$39.99

$

In Stock, only 1 left!

0

508 04 42-18

Husqvarna 508044218

MOTOR HOUSING
(Superseded to 508044226)

Note: USA

$

$

Not available

508 04 42-19

Husqvarna 508044219

Note: CAN

$

$

Currently unavailable

508 04 43-17

Husqvarna 508044317

MOTOR HOUSING

$

$

Not available

508 04 46-14

Husqvarna 508044614

REAR HANDLE
(Superseded to 508044623)

$

$

Not available

508 03 09-01

Husqvarna 508030901

SCREW

$3.49

$

Usually ships in 3-10 days

0

508 03 12-01

Husqvarna 508031201

SCREW

$5.99

$

In Stock, only 2 left!

0

731 23 18-51

Husqvarna 731231851

NUT

$2.49

$

In Stock, only 3 left!

0

734 11 63-01

Husqvarna 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

508 04 45-06

Husqvarna 508044506

CHAIN COVER
(Superseded to 508044515)

$

$

Not available

508 03 36-02

Husqvarna 508033602

BUSHING

$

$

Not available

508 04 62-02

Husqvarna 508046202

SCREW

$2.49

$

Usually ships in 3-10 days

0

508 04 44-01

Husqvarna 508044401

GASKET
(Superseded to 508044409)

$5.76

$

Usually ships in 3-10 days

0

508 03 86-05

Husqvarna 508038605

DECAL

$

$

Not available
