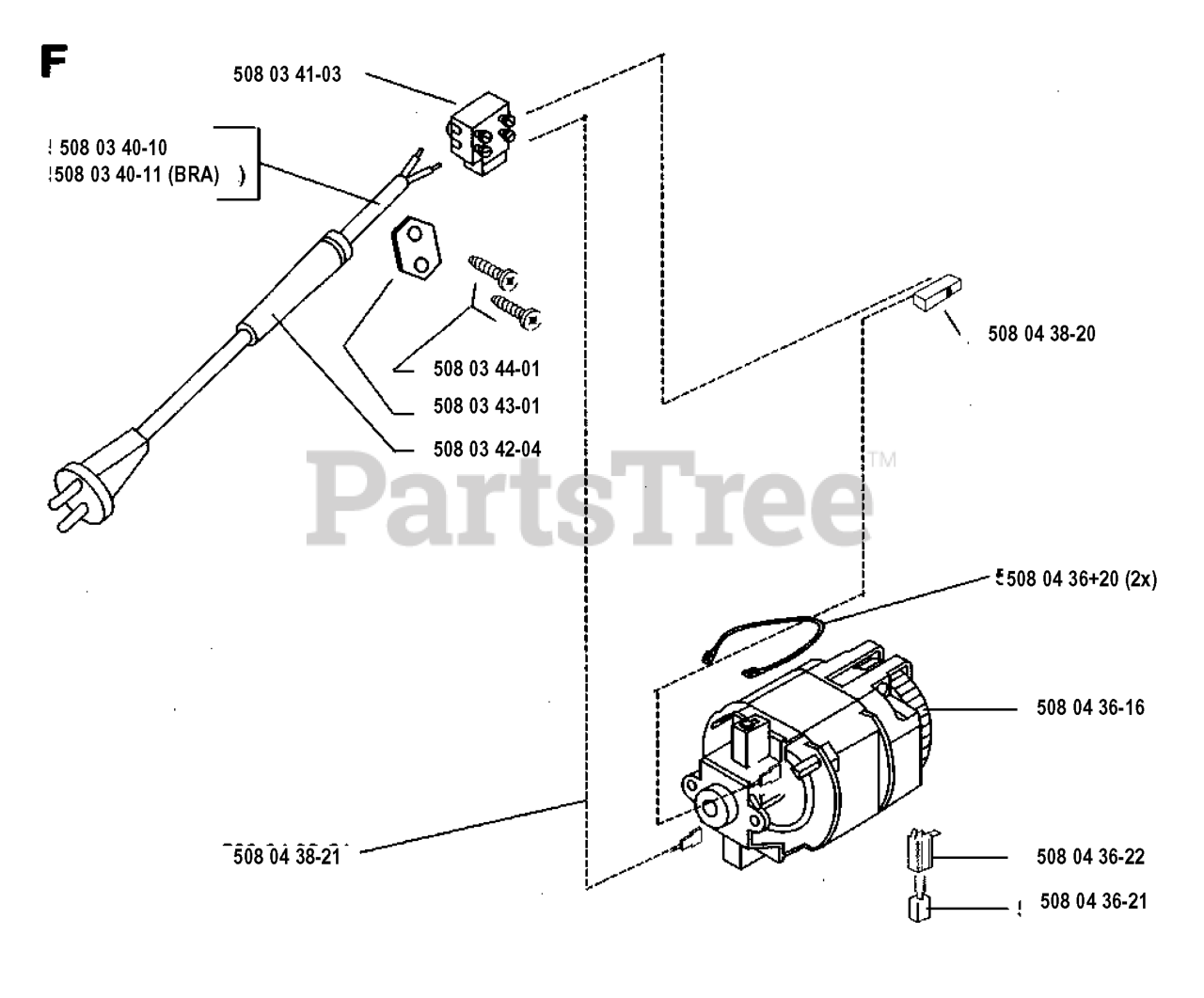

16 - Husqvarna Chainsaw, Electric (SN: 19931800001 - 19954000000) ELECTRICAL Parts Diagram

Chainsaw, Electric

ELECTRICAL Parts Diagram

  • Title

508 03 41-03

Husqvarna 508034103

SWITCH

$

$

Not available

508 03 40-10

Husqvarna 508034010

CABLE W/PLUG
(Superseded to 508034015)

$125.99

$

In Stock, only 4 left!

0

508 03 40-11

Husqvarna 508034011

Note: BRA

$

$

Currently unavailable

508 04 38-21

Husqvarna 508043821

LEAD
(Superseded to 508043839)

$

$

Not available

508 03 42-04

Husqvarna 508034204

SLEEVE

$

$

Not available

508 03 43-01

Husqvarna 508034301

CABLE CLAMP

$

$

Not available

508 03 44-01

Husqvarna 508034401

SCREW

$

$

Not available

508 04 36-21

Husqvarna 508043621

BRUSH NLA

$

$

Not available

508 04 36-22

Husqvarna 508043622

BRUSH NLA

$

$

Not available

508 04 36-16

Husqvarna 508043616

MOTOR
(Superseded to 508043648)

$

$

Not available

508 04 36+20

Husqvarna 508043620

LEAD NLA

Note: 2X

$

$

Not available

508 04 38-20

Husqvarna 508043820

MICRO SWITCH
(Superseded to 508043919)

$28.99

$

Usually ships in 3-10 days

0
