160 - Shindaiwa Electric Chainsaw General Assembly Model 160 Parts Diagram

Electric Chainsaw

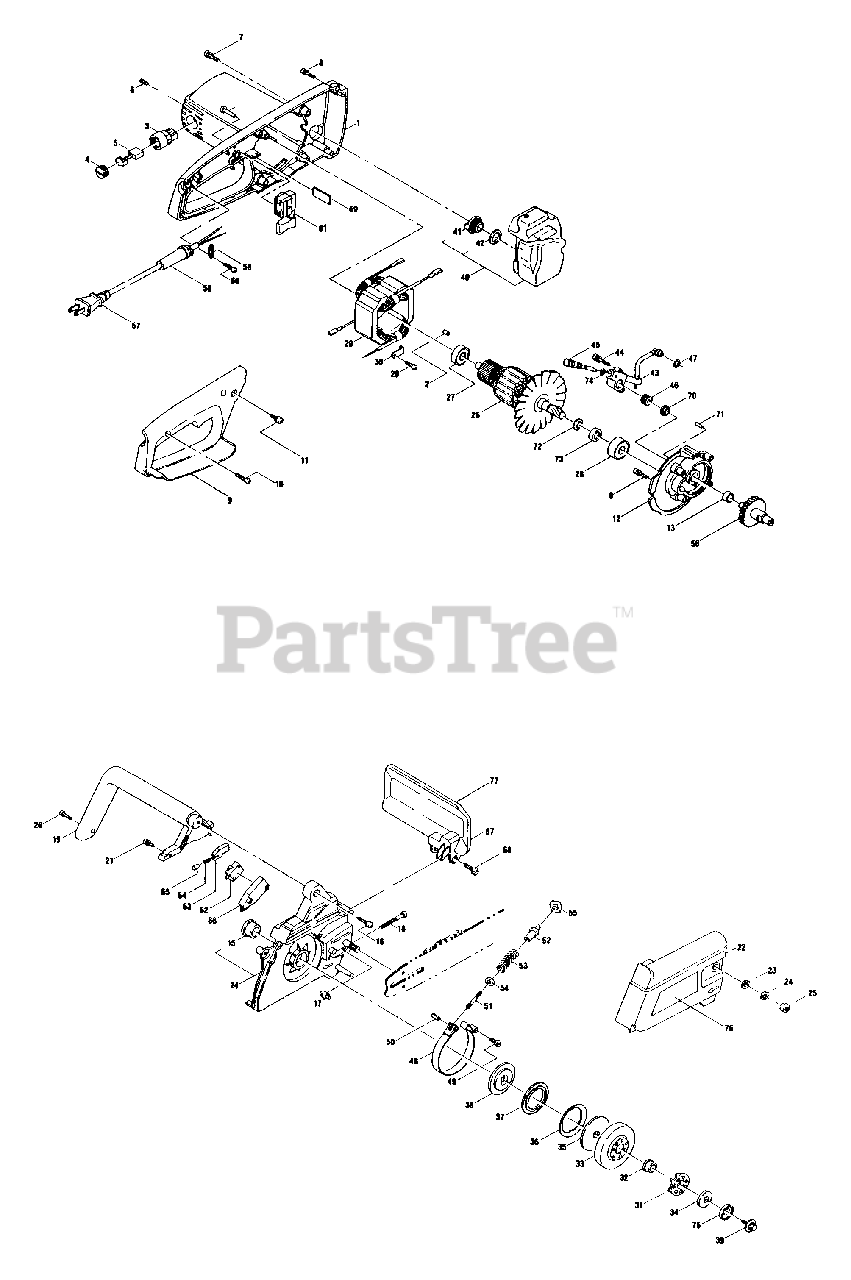

General Assembly Model 160 Parts Diagram

  • Title

1

Echo 75148-31111

CASE - LEFT
(Superseded to 75148-31112)

$

$

Not available

2

Echo 1712069000

BUSHING

$

$

Currently unavailable

3

Echo 14863-01100

HOLDER, BRUSH

$

$

Currently unavailable

4

Echo 14863-02100

CAP
(Superseded to C474000020)

$

$

Not available

5

Echo 14732-06151

BRUSH

$5.99

$

Usually ships in 2-4 days

0

6

Echo 01230-04100

SCREW - 4X10
(Superseded to Discontinued)

$

$

Not available

7

Echo 01211-05200

SCREW - 5X20
(Superseded to 9134105020)

$1.49

$

Usually ships in 2-4 days

0

8

Echo 01211-04200

SCREW - 4X20

$

$

Not available

9

Echo 75148-33110

CASE - RIGHT
(Superseded to 75148-33111)

$31.99

$

Usually ships in 2-4 days

0

10

Echo 11202-40200

SCREW - TAPPING
(Superseded to 24196-33310)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 01211-05080

SCREW - 5X8

$

$

Not available

12

Echo 24131-34112

GEAR CASE
(Superseded to Discontinued)

$

$

Not available

13

Echo 02002-00607

BEARING, BALL - 607
(Superseded to 90080400607)

$17.99

$

In Stock, only 2 left!

0

14

Echo 24131-35102

GEAR CASE ASSY
(Superseded to P021024410)

$101.99

$

Usually ships in 2-4 days

0

15

Echo 12201-21100

BUSHING

$

$

Not available

16

Echo 23180-35130

SCREW -- TAPPING
(Superseded to V253000890)

$1.49

$

Usually ships in 2-4 days

0

17

Echo 1711005000

TENSIONER, CHAIN
(Superseded to C309000140)

$2.99

$

Usually ships in 2-4 days

0

18

Echo 75154-35140

SCREW
(Superseded to Discontinued)

$

$

Not available

19

Echo 24131-36111

HANDLE - FRONT
(Superseded to C400001000)

$26.99

$

Usually ships in 2-4 days

0

20

Echo 11202-40160

SCREW
(Superseded to 24196-32310)

$

$

Not available

21

Echo 01211-04160

SCREW - 4X16

$

$

Not available

22

Echo 75148-37100

BAR MOUNT ASSY

$14.99

$

Usually ships in 2-4 days

0

23

Echo 01610-08120

WASHER - 8

$

$

Not available

24

Echo 01600-08201

LOCKWASHER - 8
(Superseded to 90060500008)

$0.99

$

In Stock, Qty 20+

0

25

Echo 01500-08061

NUT - 8
(Superseded to 90050000008)

$0.99

$

In Stock, Qty 20+

0

26

Echo 14800-83500

ARMATURE

$

$

Currently unavailable

27

Echo 02002-06200

BEARING, BALL - 6200ZZ
(Superseded to 9404506200)

$12.99

$

Usually ships in 2-4 days

0

28

Echo 02002-06201

BEARING, BALL - 6201
(Superseded to 90081406201)

$14.99

$

In Stock, only 2 left!

0

29

Echo 14811-83500

FIELD
(Superseded to 14811-83501)

$

$

Not available

30

Echo 24131-52110

PLATE

$

$

Not available

31

UNKNOWN

$

$

Not available

?31a

Echo 24131-61100

SPROCKET ASSY - 3/8"
(Superseded to C580000620)

$47.99

$

Usually ships in 2-4 days

0

32

Echo 12201-10101

BUSHING

$

$

Not available

?31b

Echo 75149-61100

SPROCKET - .325
(Superseded to Discontinued)

$

$

Not available

33

Echo 24131-61210

DRUM, CLUTCH
(Superseded to A556001250)

$

$

Not available

34

Echo 24131-61222

WASHER

$

$

Not available

35

Echo 24131-61270

PLATE, CLUTCH

$

$

Not available

36

Echo 24131-61240

DISK SPRING

$

$

Not available

37

Echo 12201-33000

BUSHING

$

$

Not available

38

Echo 24131-61250

FLANGE

$

$

Not available

39

Echo 24131-61262

BOLT

$

$

Not available

40

Echo 24131-62103

OIL TANK ASSY

$

$

Not available

41

Echo 24131-62122

CAP, OIL
(Superseded to C205000120)

$1.99

$

Usually ships in 2-4 days

0

42

Echo 24131-62132

GASKET
(Superseded to E113000030)

$1.99

$

Usually ships in 2-4 days

0

43

Echo 24131-62202

OIL PUMP ASSY
(Superseded to 24131-09200)

$24.99

$

Usually ships in 2-4 days

0

44

Echo 01213-04200

SCREW - 4X20

$

$

Currently unavailable

45

Echo 24131-62411

PLUNGER
(Superseded to Discontinued)

$

$

Not available

46

Echo 24131-62421

GEAR

$

$

Not available

47

Echo 24131-62280

GASKET
(Superseded to V540000370)

$1.49

$

Usually ships in 2-4 days

0

48

Echo 75152-63110

BAND, BRAKE
(Superseded to C328000300)

$17.99

$

Usually ships in 2-4 days

0

49

Echo 22120-54220

BOLT
(Superseded to V203001430)

$1.99

$

In Stock, only 4 left!

0

50

Echo 22120-54230

PIN - SPRING

$1.49

$

Usually ships in 2-4 days

0

51

Echo 22120-54311

ROD, ADJUST

$

$

Currently unavailable

52

Echo 22120-54321

SCREW, ADJUST

$

$

Currently unavailable

53

Echo 1750013600

SPRING
(Superseded to V450001460)

$3.49

$

Usually ships in 2-4 days

0

54

Echo 22120-54340

WASHER

$1.99

$

Usually ships in 2-4 days

0

55

Echo 24131-63210

BLOCK

$

$

Not available

56

Echo 24131-64110

GEAR CASE ASSY

$

$

Currently unavailable

57

Echo 74187-71110

POWER CORD
(Superseded to Discontinued)

$

$

Not available

58

Echo 73156-71210

PROTECTOR, CORD
(Superseded to M314000070)

$

$

Not available

59

Echo 23180-71120

CLAMP

$

$

Not available

60

Echo 11202-40130

SCREW - TAPPING
(Superseded to V252000830)

$1.49

$

Usually ships in 2-4 days

0

61

Echo 05211-22204

SWITCH
(Superseded to 05211-22214)

$18.99

$

In Stock, only 1 left!

0

62

Echo 05223-14200

SWITCH
(Superseded to 05223-14201)

$7.99

$

Usually ships in 2-4 days

0

63

Echo 24131-73110

SWITCH LEVER

$

$

Not available

64

Echo 1750004500

SPRING
(Superseded to V450001470)

$1.99

$

Usually ships in 2-4 days

0

65

Echo 24131-73120

SWITCH, ROD

$

$

Not available

66

Echo 24131-73130

SWITCH, BOX

$

$

Not available

67

Echo 24131-93100

HAND GUARD ASSY
(Superseded to C440000070)

$34.99

$

Usually ships in 2-4 days

0

68

Echo 24131-93210

BOLT, LEVER

$

$

Not available

69

Echo 24131-31211

PLATE
(Superseded to C628000090)

$0.99

$

Usually ships in 2-4 days

0

70

Echo 24131-34120

BUSHING

$

$

Not available

71

Echo 02425-03106

PIN
(Superseded to Discontinued)

$

$

Not available

72

Echo 02434-10100

RING, RETAINING

$

$

Not available

73

Echo 23111-51110

COLLAR
(Superseded to Discontinued)

$

$

Not available

74

Echo 02301-00300

O-RING
(Superseded to 90072000003)

$1.49

$

In Stock, only 2 left!

0

75

Echo 24131-61280

WASHER

$

$

Not available

76

Echo 75158-91110

NAME PLATE (A)

$

$

Currently unavailable

77

Echo 75158-91130

NAME PLATE (B)

$

$

Currently unavailable

?78

Echo 75148-73200

LEADWIRE SUB ASSY
(Superseded to M380000580)

$14.99

$

Usually ships in 2-4 days

0
