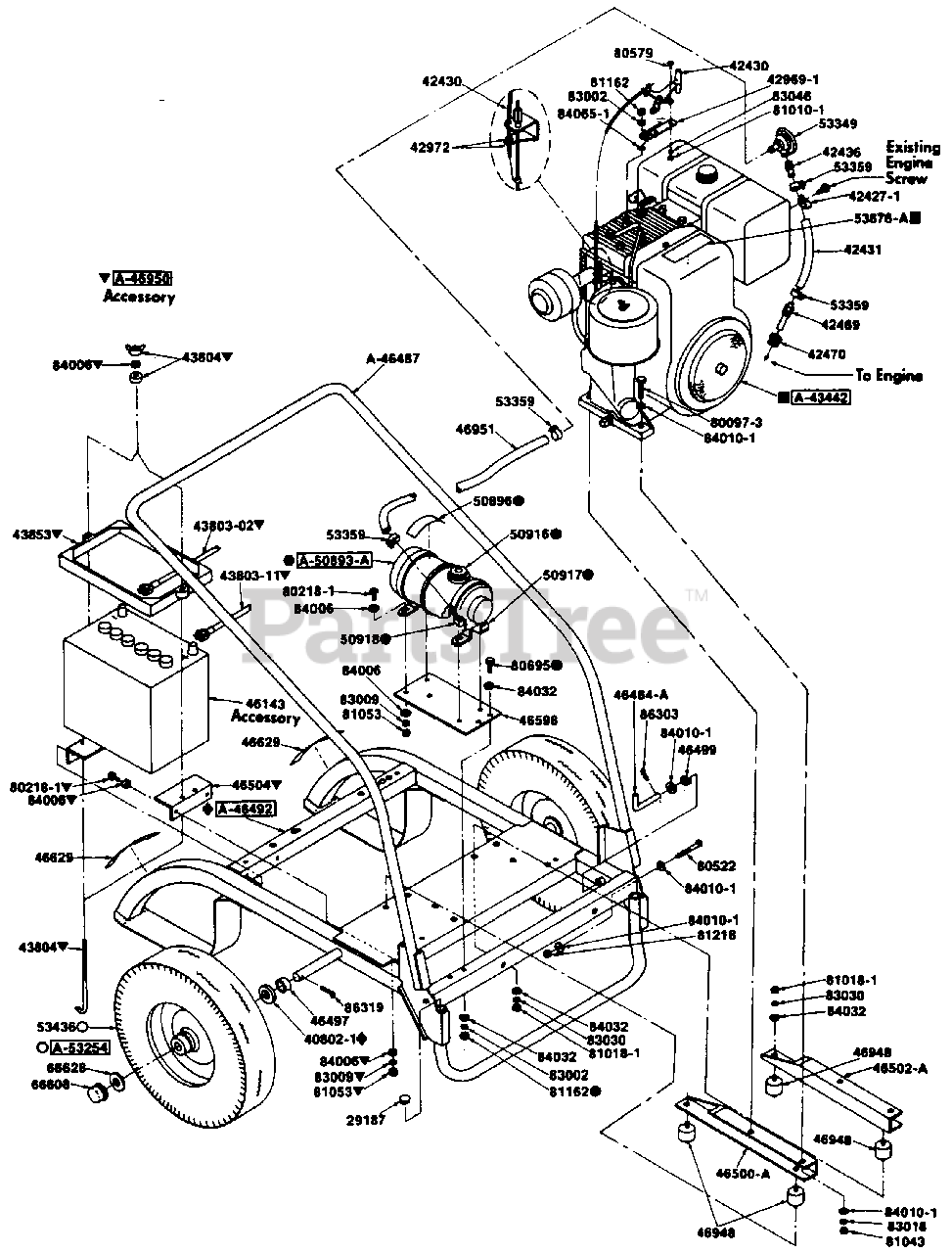

160 TP41C (UT-01554) - Homelite Trash Pump Dolly Parts Diagram

Trash Pump

Dolly Parts Diagram

  • Title

29187

Homelite 29187

PLUG- Button

$

$

Not available

40802-1

Homelite 408021

SPACER

$

$

Currently unavailable

42427-1

Homelite 424271

BRACKET

$

$

Currently unavailable

42430

Homelite 42430

LEVER- Control
(Superseded to A06389)

$104.99

$

Usually ships in 3-7 days

0

42431

Homelite 42431

HOSE- Oil supply

$

$

Not available

42436

Homelite 42436

FITTING

$

$

Not available

42469

Homelite 42469

PROBE- Pumping

$72.99

$

Usually ships in 3-7 days

0

42470

Homelite 42470

DECAL

$53.99

$

Usually ships in 3-7 days

0

42972

Homelite 42972

NUT- Conduit
(Superseded to UP03514)

$6.49

$

In Stock, only 1 left!

0

42969-1

Homelite 429691

PLATE- Throttle

$

$

Currently unavailable

A-43442

Homelite A43442

ENGINE & DECAL

$

$

Currently unavailable

43853

Homelite 43853

HOLDDOWN- Battery

$63.99

$

Usually ships in 3-7 days

0

43803-11

Homelite 4380311

CABLE- Battery

$

$

Currently unavailable

43803-02

Homelite 4380302

CABLE- Battery

$

$

Currently unavailable

43804

Homelite 43804

BOLT- Holddown

$20.99

$

Usually ships in 3-7 days

0

46143

Homelite 46143

BATTERY

$

$

Currently unavailable

46484-A

Homelite 46484A

PIN- Latch

$

$

Currently unavailable

A-46487

Homelite A46487

HANDLE

$

$

Currently unavailable

A-46492

Homelite A46492

DOLLY & FRAME

$

$

Currently unavailable

46497

Homelite 46497

TUBING- Spacer

$

$

Not available

46499

Homelite 46499

SPRING- Compression

$8.99

$

Usually ships in 3-7 days

0

46500-A

Homelite 46500A

SUPPORT- Engine left

$

$

Currently unavailable

46502-A

Homelite 46502A

SUPPORT- Engine right

$

$

Currently unavailable

46504

Homelite 46504

ANGLE- Mounting

$59.99

$

Usually ships in 3-7 days

0

46598

Homelite 46598

BRACKET- Aux. oiler

$

$

Currently unavailable

46629

Homelite 46629

DECAL

$

$

Not available

46948

Homelite 46948

ISOLATOR- Vibration

$

$

Not available

A-46950

Homelite A46950

KIT- Battery mounting

$

$

Currently unavailable

46951

Homelite 46951

TUBING- Rubber

$

$

Not available

A-50893-A

Homelite A50893A

TANK- Oil

$

$

Not available

50896

Homelite 50896

DECAL- Oil tank

$8.99

$

Usually ships in 3-7 days

0

50916

Homelite 50916

CAP

$

$

Currently unavailable

50917

Homelite 50917

BRACKER- Mounting

$97.99

$

Usually ships in 3-7 days

0

50918

Homelite 50918

FITTING- Hose

$

$

Currently unavailable

A-53254

Homelite A53254

WHEEL & TIRE

$

$

Currently unavailable

53349

Homelite 53349

HEAD- Oil pump

$

$

Not available

53359

Homelite 53359

CLAMP- Hose (oil)

$

$

Currently unavailable

53436

Homelite 53436

WHEEL

$

$

Currently unavailable

53876A

Homelite 53876A

LABEL- Service instr.

$

$

Currently unavailable

66608

Homelite 66608

HUB- Cap

$

$

Currently unavailable

66628

Homelite 66628

WASHER- Flat

$

$

Currently unavailable

80097-3

Homelite 800973

SCREW- Cap hex hd. 3/8-16 x 1.500
(Superseded to UP07178)

$

$

Not available

802181

Homelite 802181

SCREW- Mach. hex (1/4-20)
(Superseded to 80052)

$

$

Not available

80522

Homelite 80522

SCREW- Cap hex hd.

$5.49

$

Usually ships in 3-7 days

0

80579

Homelite 80579

SCREW- Mach. pan hd. (10-32 x 3/8)
(Superseded to UP07186)

$5.99

$

Usually ships in 3-7 days

0

80695

Homelite 80695

SCREW- Mach. hex hd. (5/16-18 x 3/4)
(Superseded to UP03381)

$

$

Not available

81010-1

Homelite 810101

NUT- Hex (10-32 x 3/8)

$

$

Currently unavailable

81018-1

Homelite 810181

NUT- Hex (5/16 x 18)

$

$

Currently unavailable

81043

Homelite 81043

NUT- Hex (3/8-16)

$

$

Not available

81053

Homelite 81053

NUT- Hex (1/4-20)

$

$

Not available

81162

Homelite 81162

NUT- Hex (5/16-18)

$

$

Not available

81218

Homelite 81218

WASHER- Lock (5/16)
(Superseded to UP06646)

$

$

Not available

81218

Homelite 81218

WASHER- Lock (5/16)
(Superseded to UP06646)

$

$

Not available

83002

Homelite 83002

WASHER- Lock (5/16)
(Superseded to 653671)

$5.49

$

Usually ships in 3-7 days

0

83009

Homelite 83009

WASHER- Lock (1/4)

$9.99

$

Usually ships in 3-7 days

0

83018

Homelite 83018

WASHER- Lock

$

$

Not available

83030

Homelite 83030

LOCKWASHER

$

$

Not available

83046

Homelite 83046

WASHER- Lock

$

$

Not available

84006

Homelite 84006

WASHER- Flat

$

$

Not available

84010-1

Homelite 840101

WASHER

$

$

Currently unavailable

84032

Homelite 84032

WASHER

$

$

Not available

840651

Homelite 840651

WASHER
(Superseded to UP04241)

$

$

Not available

86303

Homelite 86303

PIN- Cotter

$

$

Not available

86319

Homelite 86319

PIN- Cotter

$

$

Not available
