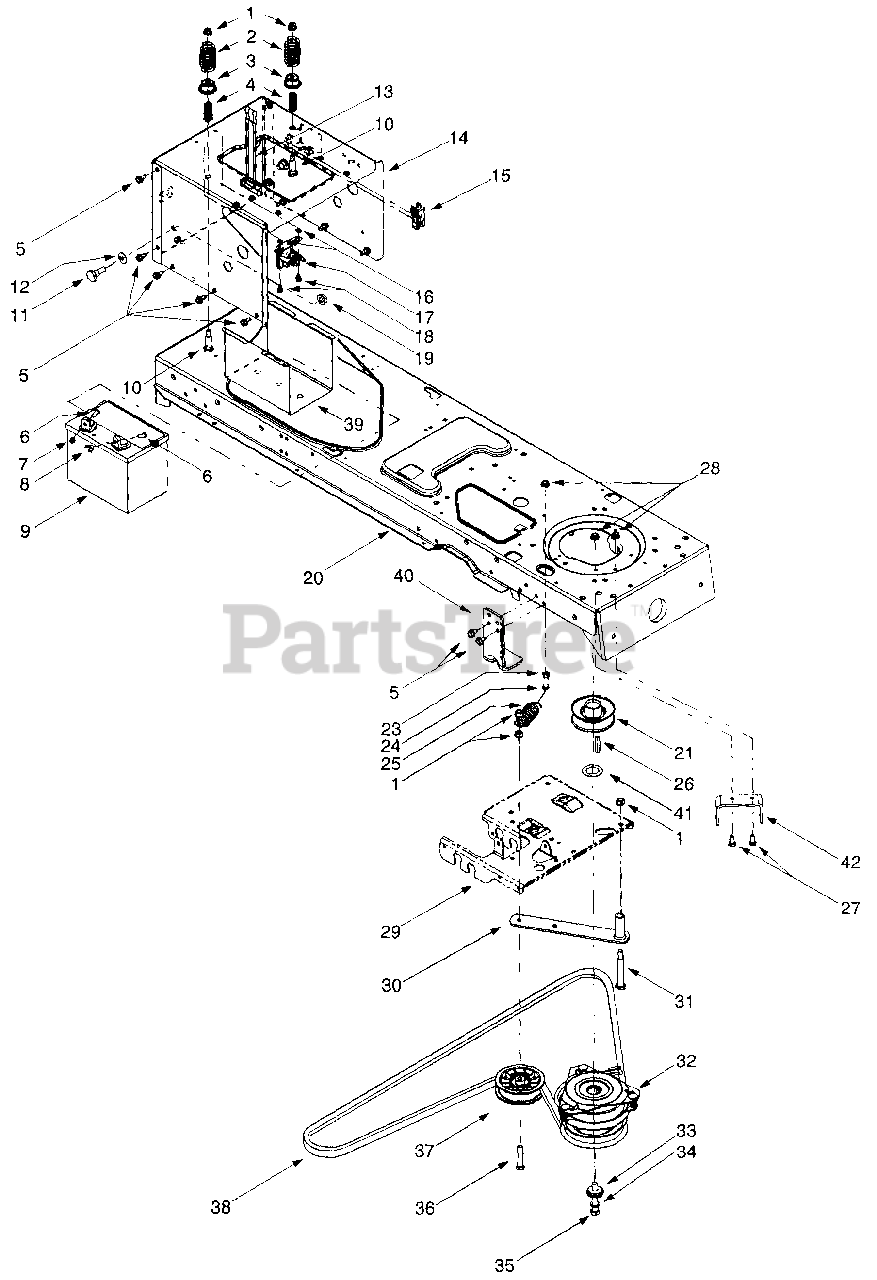

1600 (13AE608G101) - Cub Cadet Garden Tractor Power Take-off System Parts Diagram

Garden Tractor

Power Take-off System Parts Diagram

  • Title

1

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 732-0735

Compression Spring, 1.318 x 2.37
(Superseded to 732-0735A)

$27.99

$

In Stock, Qty 8

0

3

Cub Cadet 783-0733

Spacer Cup, 1.5 OD

$

$

Not available

4

Cub Cadet 732-0956

Compression Spring, .66 OD x 1.5

$

$

Not available

5

Cub Cadet 710-0604A

Self Tapping Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3044

Wing Nut, 1/4-20

$

$

Not available

9

Cub Cadet 725-1706

12-volt Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

10

Cub Cadet 738-1014

Shoulder Screw, .5 x 1.25, 3/8-16

$3.99

$

In Stock, only 2 left!

0

11

Cub Cadet 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 7

0

13

Cub Cadet 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 783-0668

Hitch Plate

Variations

Cub Cadet 783-0668-0498

HITCH PLATE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0668-0637

PLATE-HITCH (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0668-0665

PLATE-HITCH (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0668-0691

PLATE-HITCH (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

$

$

15

Cub Cadet 725-1747

Safety Interlock Plunger Switch
(Superseded to 925-1747)

$37.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0222

Lock Washer, 1/4

$5.49

$

In Stock, only 3 left!

0

17

Cub Cadet 725-1426

Solenoid, 12-Volt, 100 Amp
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0599

Self Tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 683-0263B

Lower Frame Assembly

Variations

Cub Cadet 683-0263B-0498

LOWER FRAME ASSEMBLY(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 683-0263B-0637

LOWER FRAME ASSEMBLY(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-0263B-0665

LOWER FRAME ASSEMBLY(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 683-0263B-0691

LOWER FRAME ASSEMBLY(BLACK JACK) - BLACK JACK (0691)

$

$

Not available

$

$

21

Cub Cadet 756-0639

Engine Pulley, 3.56 OD
(Superseded to 756-0639A)

$71.99

$

In Stock, Qty 7

0

?22

Cub Cadet 711-0640

Stud, 3/8-16 x 2.68

$7.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-3180

Hex Cap Screw, 5/16-18 x 1.75 (Grade 5)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 732-0978

Extension Spring, 1.2 OD x 3.638

$9.99

$

In Stock, Qty 6

0

26

Cub Cadet 714-0118

Square Key, 1/4 x 1.5

$6.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-3025

Hex Cap Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 9

0

28

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

29

Cub Cadet 783-0653A

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

Cub Cadet 783-0653A-0498

Steering Support Bracket - OLD CUB YELLOW (0498)

$83.99

$

In Stock, only 4 left!

0

Cub Cadet 783-0653A-0637

Steering Support Bracket - POWDER BLACK (0637)

$83.99

$

In Stock, only 4 left!

0

Cub Cadet 783-0653A-0665

Steering Support Bracket - YARDMAN GREEN (0665)

$83.99

$

In Stock, only 4 left!

0

Cub Cadet 783-0653A-0691

Steering Support Bracket - BLACK JACK (0691)

$83.99

$

In Stock, only 4 left!

0

$83.99

$

In Stock, only 4 left!

0

30

Cub Cadet 683-0293

Idler Bracket Assembly (42-inch Decks)

Variations

Cub Cadet 683-0293-0637

IDLER BRACKET ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 683-0297

Idler Bracket Assembly (46-inch Decks)

$

$

Not available

31

Cub Cadet 738-3056

Shoulder Screw, 1/2 Diameter x 2.5
(Superseded to 938-3056)

$8.99

$

In Stock, Qty 20+

0

32

Cub Cadet 917-1708

Electric PTO Clutch

$577.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 738-0785

Shoulder Spacer, 1.38 x .445 x .36
(Superseded to 938-0785)

$24.99

$

In Stock, Qty 5

0

34

Cub Cadet 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 710-3157

Hex Cap Screw, 7/16-20 x 3.25 (Grade 5)
(Superseded to 710-3157A)

$9.99

$

In Stock, Qty 15

0

36

Cub Cadet 710-3011

Hex Cap Screw, 3/8-16 x 2.25 (Grade 5)

$6.49

$

In Stock, Qty 20+

0

37

Cub Cadet 756-0627

Flat Idler Pulley, 3.5 OD
(Superseded to 756-0627D)

$28.99

$

In Stock, Qty 20+

0

38

Cub Cadet 754-0472

PTO and Deck Belt (42-inch Decks)
(Superseded to 954-0472)

$47.99

$

In Stock, Qty 5

0

Cub Cadet 754-0474

PTO Belt (46-inch Decks)
(Superseded to 954-0474)

$80.99

$

In Stock, Qty 9

0

39

Cub Cadet 783-0349

Battery Tray

Variations

Cub Cadet 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

Cub Cadet 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 783-0891

Deck Stop

Variations

Cub Cadet 783-0891-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0891-0691

USE 783-0891B-0691 BRACKET-DE - BLACK JACK (0691)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0891-0498

USE 783-0891A-0498 BRACKET-DE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0891-0665

BRACKET - YARDMAN GREEN (0665)

$

$

Not available

$

$

41

Cub Cadet 736-0163

Flat Washer, 1.03 x 1.62 x .03

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 783-1003

PTO Clutch Bracket
(Superseded to 783-1003-0637)

Variations

Cub Cadet 783-1003-0637

Clutch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$
