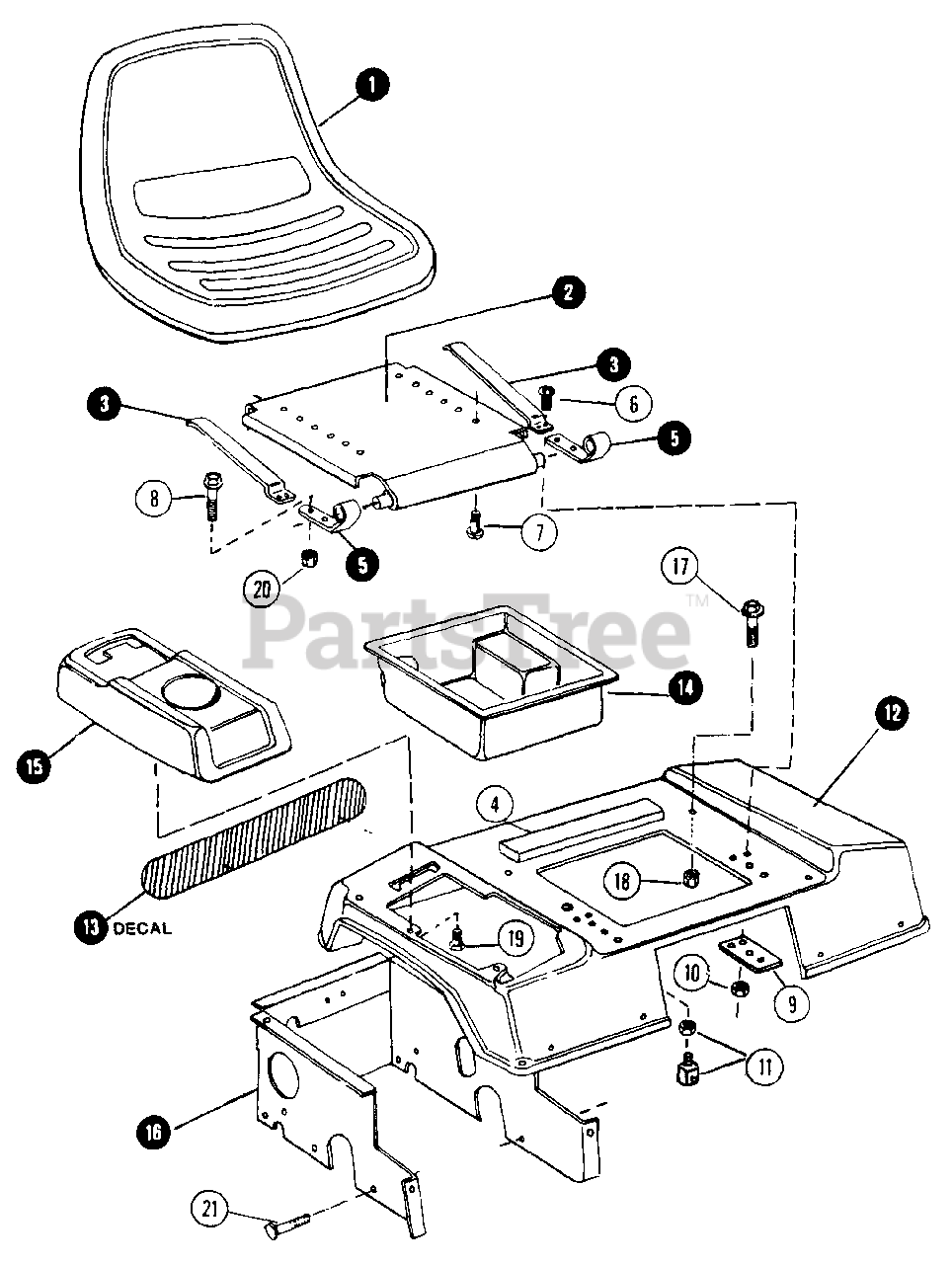

1600 (80024) - Snapper Garden Tractor, 16hp Seat, Rear Fender Parts Diagram

Garden Tractor, 16hp

Seat, Rear Fender Parts Diagram

  • Title

1

Snapper 7019964

SEAT, OPERATOR'S

Note: Was 19535

$

$

Not available

2

Snapper 39619

PLATE, SEAT BASE

$

$

Currently unavailable

3

Snapper 37769

SPRING, SEAT

$

$

Currently unavailable

4

Snapper 18252

PAD, 3/4 x 10-38"

$

$

Currently unavailable

5

Snapper 32021

HINGE, SEAT

$

$

Currently unavailable

6

Snapper 90597

SCREW, #10-24 x 5/8 SLOT ROUND HEAD

$

$

Currently unavailable

7

Snapper 7090595

BOLT, 5/16C x 3/4 HEX FLANGE LOCK
(Superseded to 703354)

$5.49

$

In Stock, Qty 16

0

8

Snapper 7090596

BOLT, 1/4C x 5/8 HEX FLANGE

$

$

Not available

9

Snapper 32022

PLATE, SEAT RETAINER

$

$

Currently unavailable

10

Snapper 7090594

NUT, #10-24 HEX LOCK
(Superseded to 7090594YP)

$2.99

$

Usually ships in 2-12 days

0

11

Snapper 7012668

SWITCH, SEAT INTERLOCK
(Superseded to 7012668YP)

Note: (INCLUDES NUTS)

$33.99

$

Usually ships in 2-12 days

0

12

Snapper 39830

FENDER, REAR

$

$

Currently unavailable

13

Snapper 7019668

DECAL, SNAPPER (REAR FENDER)
(Superseded to 7019668YP)

$6.49

$

Usually ships in 2-12 days

0

14

Snapper 7019824

COMPARTMENT

$

$

Not available

15

Snapper 19888

COVER, FENDER

Note: (WITHOUT REAR P.T.O. CUTOUT)

$

$

Currently unavailable

Snapper 19889

COVER, FENDER

Note: (WITH REAR P.T.O. CUTOUT)

$

$

Currently unavailable

16

Snapper 39833

RISER, REAR FENDER

$

$

Currently unavailable

17

Snapper 7090606

BOLT, 5/16C x 5/8 HEX FLANGE LOCK
(Superseded to 703823)

$3.99

$

In Stock, Qty 7

0

18

Snapper 7091601

NUT, 5/16C HEX FLANGE LOCK
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7091819

SCREW, 1/4C x 5/8 SELF TAPPING
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, only 1 left!

0

20

Snapper 7091584

NUT, 1/4-20 HEX
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, only 2 left!

0

21

Snapper 7090620

BOLT, 3/8-16 x 7/8

$

$

Not available
