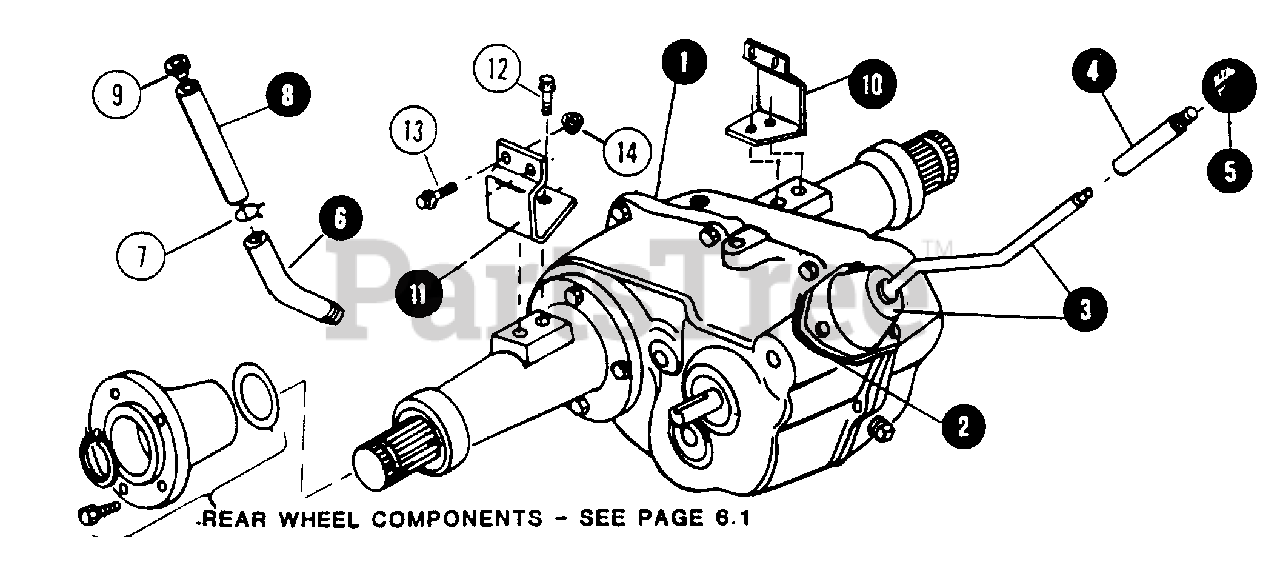

1600 (80024) - Snapper Garden Tractor, 16hp Transaxle Parts Diagram

Garden Tractor, 16hp

Transaxle Parts Diagram

  • Title

1

Snapper 7019833

TRANSAXLE ASSEMBLY - COMPLETE

Note: (INCLUDES ITEMS 2 & 3) (PEERLESS MODEL #2339)

$

$

Currently unavailable

2

Snapper 7013316

GASKET, SHIFT LEVER HOUSING

$

$

Not available

3

Snapper 12718

LEVER, SHIFT

Note: (INCLUDES HOUSING)

$

$

Currently unavailable

4

Snapper 21786

EXTENSION, SHIFTER
(Superseded to 21786GS)

$13.99

$

Usually ships in 2-12 days

0

5

Snapper 7012659

KNOB, SHIFT LEVER
(Superseded to 7012659SM)

$2.99

$

Usually ships in 2-12 days

0

6

Snapper 18285

NIPPLE, OIL FILLER

$

$

Currently unavailable

7

Snapper 12711

CLAMP, HOSE TO NIPPLE

$

$

Currently unavailable

8

Snapper 37789

HOSE, TRANSAXLE OIL FILLER

$

$

Currently unavailable

9

Snapper 12662

PLUG, OIL FILLER HOSE

$

$

Currently unavailable

10

Snapper 39635

BRACKET, L. H. MOUNTING

$

$

Currently unavailable

11

Snapper 7039636

BRACKET, R. H. MOUNTING

$

$

Not available

12

Snapper 7091588

BOLT 3/8C x 1 FLANGE
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7090622

BOLT, 1/2C x 1-1/4 HEX FLANGE
(Superseded to 7090622YP)

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 7090619

NUT, 1/2C FLANGE LOCK
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0
