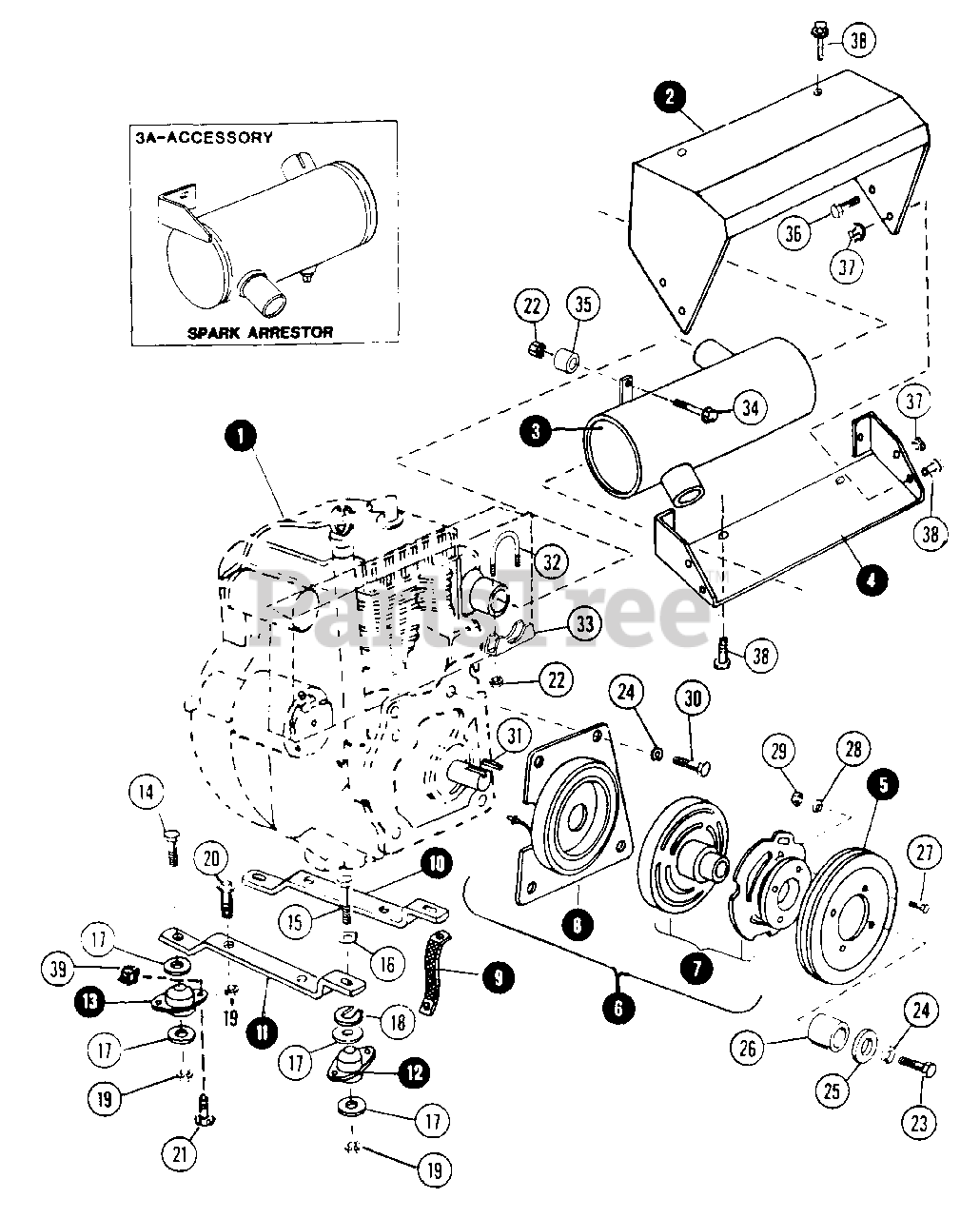

1600 A (80124) - Snapper Garden Tractor, 16hp Engine & Mounting Parts Diagram

Garden Tractor, 16hp

Engine & Mounting Parts Diagram

  • Title

1

ENGINE, 16 HP (Kohler K341AQS 220 Spec #71243A)

Note: (PURCHASE ENGINE PARTS FROM KOHLER DEALER)

$

$

Not available

2

Snapper 49815

SHIELD UPPER-MUFFLER HEAT
(Superseded to 49815GS)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7019822

MUFFLER (STANDARD)

$

$

Currently unavailable

3A

Snapper 60382

MUFFLER, SPARK ARRESTOR

Note: (ACCESSORY ITEM)

$

$

Currently unavailable

4

Snapper 39618

SHIELD, LOWER - MUFFLER HEAT

$

$

Currently unavailable

5

Snapper 7019531

PULLEY, DRIVE

$

$

Currently unavailable

6

Snapper 7019530

CLUTCH ASSEMBLY

Note: (INCLUDES ITEMS, 7 & 8)

$

$

Not available

7

Snapper 13724

ROTOR ASSEMBLY

$

$

Currently unavailable

8

Snapper 7013723

FIELD ASSEMBLY

$

$

Currently unavailable

9

Snapper 18261

STRAP, ENGINE GROUND

$

$

Currently unavailable

10

Snapper 39623

RAIL, LEFT ENGINE MOUNTING

$

$

Currently unavailable

11

Snapper 39622

RAIL, RIGHT ENGINE MOUNTING

$

$

Currently unavailable

12

Snapper 18276

DAMPER, ENGINE FRONT

$

$

Currently unavailable

13

Snapper 7018404

DAMPER, ENGINE REAR

$

$

Not available

14

Snapper 7090615

BOLT, 3/8C x 2 HEX HEAD

$

$

Currently unavailable

15

Snapper 7090590

BOLT, 3/8C x 3 HEX HEAD
(Superseded to 7090590YP)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7090122

WASHER, 3/8 SAE FLAT
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 32025

WASHER, DAMPER SNUBBING

$

$

Currently unavailable

18

Snapper 37770

C-WASHER

$

$

Currently unavailable

19

Snapper 7091619

NUT, 3/8C HEX FLANGE LOCK
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

20

Snapper 7090659

BOLT, 3/8C x 1-1/4 HEX FLANGE LOCK
(Superseded to 7090659YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7090624

BOLT, #10-24 x 3/4 FLANGE LOCK
(Superseded to 7090624YP)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7091601

NUT, 5/16C HEX LOCK
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

23

Snapper 7090579

BOLT, 7/16F x 1-1/4 FLAT

$

$

Not available

24

Snapper 7091301

WASHER, 7/16 LOCK
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 7

0

25

Snapper 7032011

WASHER, SPECIAL FLAT

$

$

Currently unavailable

26

Snapper 7021782

SPACER, 1-1/8 x 1-3/8 x 1-1/4

$

$

Not available

27

Snapper 7090580

BOLT 1/4C x 3/4 HEX HEAD

$

$

Currently unavailable

28

Snapper 7090052

WASHER, 1/4 LOCK
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

29

Snapper 7091576

NUT, 1/4C HEX
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, only 4 left!

0

30

Snapper 90602

BOLT, 7/16C x 7/8 HEX HEAD

$

$

Currently unavailable

31

Snapper 12653

KEY, 1/4 SQUARE x 5/8"

$

$

Currently unavailable

32

Snapper 7012657

U-BOLT

$

$

Not available

33

Snapper 7032017

CLAMP

$

$

Currently unavailable

34

Snapper 7091592

BOLT, 5/16C x 2 HEX FLANGE LOCK
(Superseded to 704062)

Note: Was 90586

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 21783

SPACER, STEEL
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 16

0

36

Snapper 7021784

BOLT, 1/4C x 3/4 DRILLED HEAD

$

$

Not available

37

Snapper 7091584

NUT, 1/4C HEX FLANGE LOCK
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, only 2 left!

0

38

Snapper 7090584

BOLT, 1/4C x 1/2 HEX FLANGE LOCK
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

39

Snapper 7090623

NUT, #10-24 FLANGE LOCK
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0
