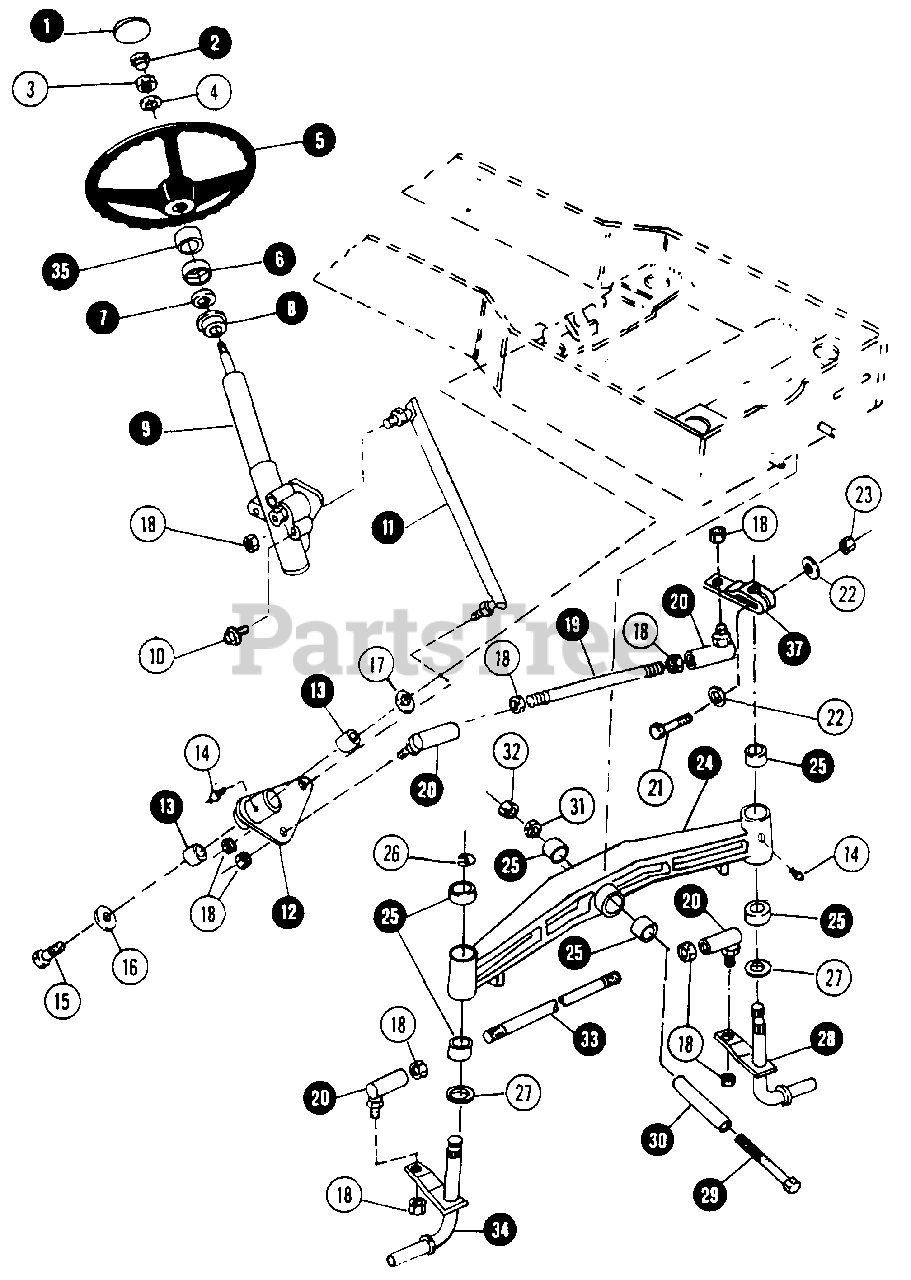

1600 A (80124) - Snapper Garden Tractor, 16hp Steering, Front Suspension Parts Diagram

Garden Tractor, 16hp

Steering, Front Suspension Parts Diagram

  • Title

1

Snapper 7013894

PLATE, STEERING WHEEL COVER

Note: Was 32014

$

$

Not available

2

Snapper 7012667

TAPER-PLUG

$

$

Not available

3

Snapper 7090278

NUT, 5/8

$

$

Not available

4

Snapper 7090183

WASHER, 5/8 FLAT
(Superseded to 7090183YP)

$4.49

$

In Stock, Qty 13

0

5

Snapper 7019820

WHEEL, STEERING

$

$

Not available

6

Snapper 32013

CAP, DUST (NLA)

$

$

Currently unavailable

7

Snapper 12654

COVER, DUST (NLA)

$

$

Currently unavailable

8

Snapper 18282

BEARING, STEERING COLUMN (NLA)

$

$

Currently unavailable

9

Snapper 19864

ASSEMBLY, STEERING GEAR (NLA)

Note: (See "Steering Gear" illustration and parts list)

$

$

Currently unavailable

10

Snapper 7027198

CAPSCREW, 3/8-16 x 1
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, Qty 17

0

11

Snapper 18284

TIE-ROD, GEAR TO BELLCRANK (NLA)

$

$

Currently unavailable

12

Snapper 7057254

ASSEMBLY, BELLCRANK

Note: (INCLUDES 2 ITEM 13 & 1 ITEM 14)

$

$

Currently unavailable

13

Snapper 7018289

BEARING, SLEEVE
(Superseded to 7018289YP)

$38.99

$

Usually ships in 2-12 days

0

14

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, only 2 left!

0

15

Snapper 7091588

CAPSCREW, 3/8C x 3/4 HEX LOCK
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7037776

WASHER, THRUST

$

$

Not available

17

Snapper 12704

WASHER, THRUST (NLA)

$

$

Currently unavailable

18

Snapper 7090559

NUT, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, only 4 left!

0

19

Snapper 18280

TIE-ROD, UPPER (NLA)

$

$

Currently unavailable

20

Snapper 7018278

BALL JOINT

$45.99

$

Usually ships in 2-12 days

0

21

Snapper 7091305

CAPSCREW, 3/8C x 2
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, Qty 11

0

22

Snapper 7032012

WASHER, 13/32 x 1 x 1/8
(Superseded to 7021746YP)

$3.99

$

In Stock, Qty 12

0

23

Snapper 7091302

NUT, 3/8C HEX
(Superseded to 7091302SM)

Note: Was 90504

$4.49

$

In Stock, Qty 8

0

24

Snapper 59802

ASSEMBLY, FRONT AXLE (NLA)

Note: (INCLUDES 6 ITEM 25, 3 ITEM 14)

$

$

Currently unavailable

25

Snapper 7012706

BUSHING, AXLE
(Superseded to 7012706SM)

$10.99

$

In Stock, only 4 left!

0

26

Snapper 7012705

RING, SNAP

$

$

Not available

27

Snapper 7032027

WASHER, THRUST
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 5

0

28

Snapper 7049581

SPINDLE, LEFT (KING PIN)
(Superseded to 7049581YP)

$155.99

$

Usually ships in 2-12 days

0

29

Snapper 7090621

CAPSCREW, 1/2C x 5 - 1/4 HEX HEAD

$

$

Not available

30

Snapper 7021789

JOURNAL, PIVOT

$

$

Not available

31

Snapper 7091316

NUT, 1/2C HEX
(Superseded to 703340)

Note: Was 90258

$7.99

$

Usually ships in 2-12 days

0

32

Snapper 7090625

NUT, 1/2C HALF-HEX

$

$

Not available

33

Snapper 18279

TIE-ROD, LOWER (NLA)

$

$

Currently unavailable

34

Snapper 7049582

SPINDLE, RIGHT (KING PIN)

$

$

Currently unavailable

35

Snapper 7012677

SLEEVE, STEERING

$

$

Currently unavailable

37

Snapper 39626

ARM, Steering (NLA)

$

$

Currently unavailable
