1600 H (1668 R) - Troy-Bilt Tractor (SN: B050100101 - B050199999) BODYWORK & TRIM ASSEMBLY Parts Diagram

Tractor

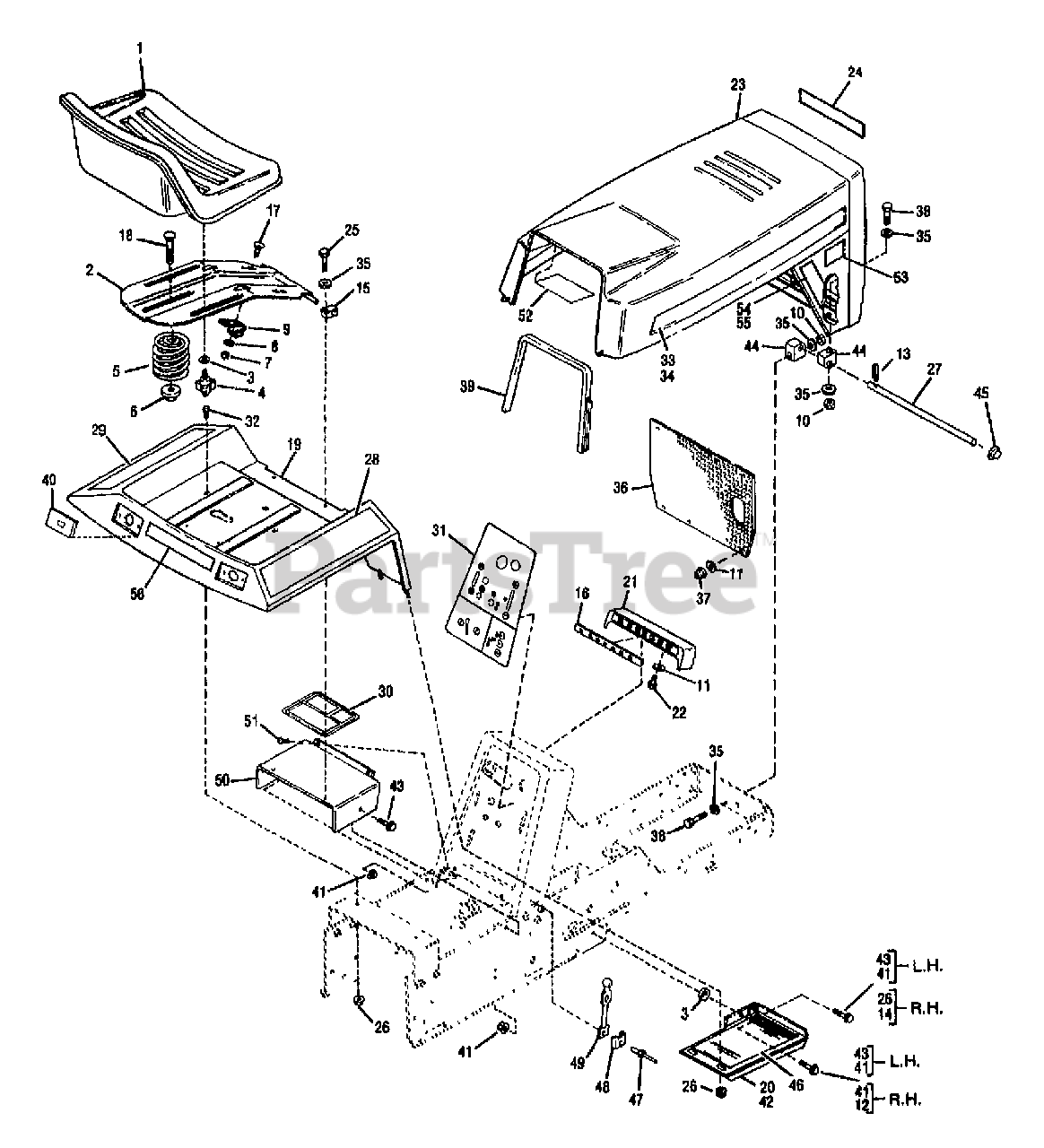

BODYWORK & TRIM ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1756846

SEAT

$

$

Currently unavailable

2

Troy-Bilt 1734115010

SUPPORT-SEAT

$

$

Currently unavailable

3

Troy-Bilt 1100256

WASHER-.986X.437X.083 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

4

MTD 1734269

KNOB

$

$

Not available

5

MTD 1753022

SPRING

$

$

Not available

6

MTD 1735125

NUT & WASHER

$

$

Not available

7

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

9

MTD 1734515

BRACKET-ACTUATOR

$

$

Not available

10

Troy-Bilt 1110107

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

11

MTD 1185418

WASHER-.219 ZP

$

$

Not available

12

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

13

MTD 1100362

PIN-COTTER .093X.50 ZP

$

$

Not available

14

MTD 1734214

SCR-5/16-18X1.00

$

$

Not available

15

MTD 1735265

BLOCK-SWIVEL

$

$

Not available

16

Troy-Bilt 1748081

LENSE

$

$

Currently unavailable

17

Troy-Bilt 1186067

BOLT-CARR 1/4-20X1/2

$

$

Currently unavailable

18

MTD 1186130

BOLT-CARR .375-16X1.25

$

$

Not available

19

Troy-Bilt 1748574010

ASSM-FENDER

$

$

Currently unavailable

20

Troy-Bilt 1736566010

FOOTREST-RH

$

$

Currently unavailable

21

Troy-Bilt 1748080

HSG-LIGHT CLUSTER

$

$

Currently unavailable

22

MTD 1748572

SCR-SELF THD 10-16X1/2

$

$

Not available

23

Troy-Bilt 1749566041

HOOD AND GRILLE

$

$

Currently unavailable

24

Troy-Bilt 1757223

DECAL-GRILLE

$

$

Currently unavailable

25

MTD 1186332

SCR-HFLK 5/16-18X1.25 ZP

$

$

Not available

26

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 1736341

ROD-PIVOT

$

$

Currently unavailable

28

Troy-Bilt 1757243

DECAL-FENDER RH

$

$

Currently unavailable

29

Troy-Bilt 1757242

DECAL-FENDER LH

$

$

Currently unavailable

30

Troy-Bilt 1750290

DECAL-INSTR

$

$

Currently unavailable

31

Troy-Bilt 1756722

DECAL-INSTRUCTION

$

$

Currently unavailable

32

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 1757240

DECAL-HOOD LH

$

$

Currently unavailable

34

Troy-Bilt 1757241

DECAL-HOOD RH

$

$

Currently unavailable

35

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

36

Troy-Bilt 1742100041

SCREEN-GRILLE

$

$

Currently unavailable

37

MTD 1736399

NUT-HFLK

$

$

Not available

38

Troy-Bilt 1100799

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

39

MTD 1726932

TRIM

$

$

Not available

40

Troy-Bilt 1753901

REFLECTOR
(Superseded to 1725615)

$

$

Not available

41

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 1736565010

FOOTREST-LH

$

$

Currently unavailable

43

MTD 1186345

SCR

$

$

Not available

44

MTD 1736340

PIVOT

$

$

Not available

45

Troy-Bilt 1728072

NUT-PUSH
(Superseded to 926-0106)

$

$

Not available

46

Troy-Bilt 1757224

PAD-FOOT REST

$

$

Currently unavailable

47

MTD 1728772

RIVET-POP 3/16X1/2

$

$

Not available

48

MTD 1727126

CLIP

$

$

Not available

49

MTD 1727127

LATCH-RUBBER

$

$

Not available

50

Troy-Bilt 1744524010

TUNNEL ASSY.

$

$

Currently unavailable

51

MTD 1739688

SCR-THRD FRM 5/16-18X5/8

$

$

Not available

52

MTD 1757206

DECAL-SVC INST

$

$

Not available

53

MTD 1757220

DECAL-HYDRO

$

$

Not available

54

Troy-Bilt 1757221

DECAL-SIDE PANEL RH

$

$

Currently unavailable

55

Troy-Bilt 1757222

DECAL-SIDE PANEL LH

$

$

Currently unavailable

56

Troy-Bilt 1757219

DECAL-LOGO

$

$

Currently unavailable

Troy-Bilt 1757461

PAINT-WHITE 12OZ SPRY CAN

$

$

Currently unavailable

Troy-Bilt 1754423

PAINT-RED SPRAYCAN POWDER

$

$

Currently unavailable
