1600 H (1668 R) - Troy-Bilt Tractor (SN: B050100101 - B050199999) ELECTRICAL SYSTEM Parts Diagram

Tractor

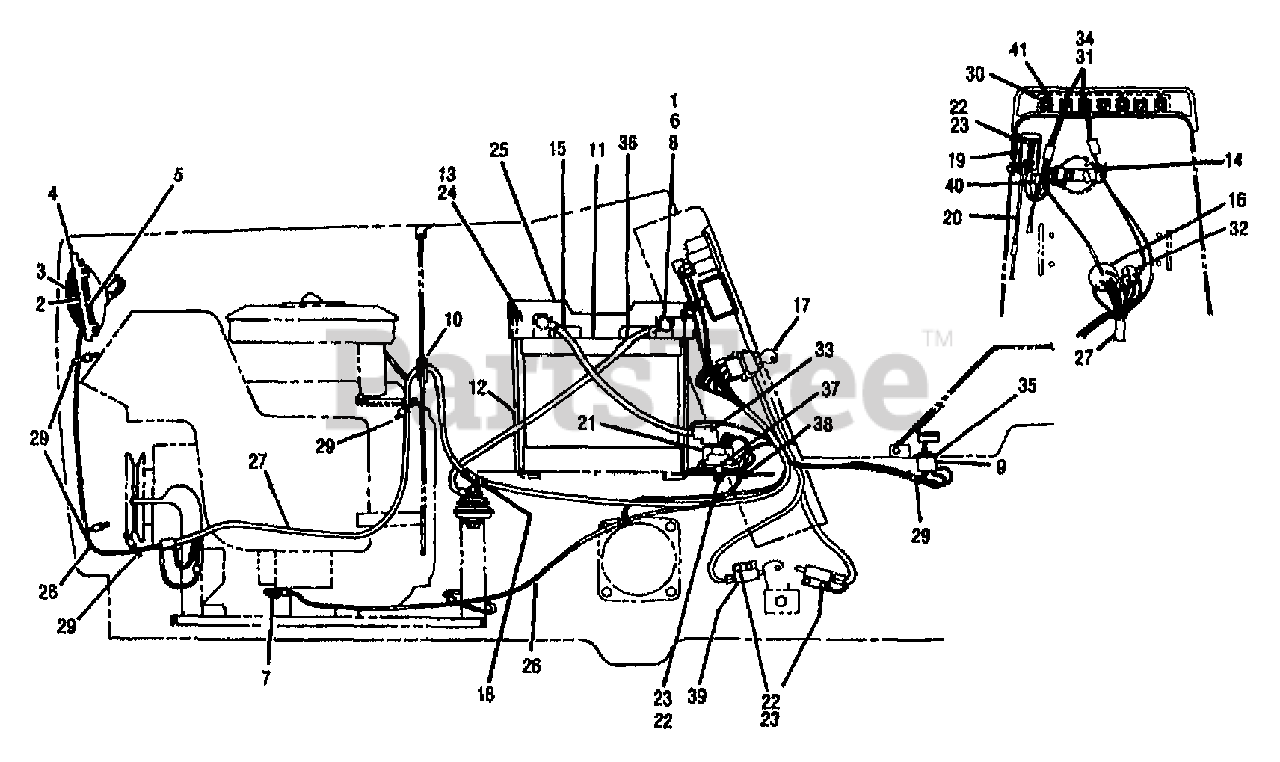

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 1727379

RIVET-POP 3/16 X 5/8

$3.49

$

Usually ships in 3-6 days

0

3

MTD 1726435

HEADLAMP

$

$

Not available

4

MTD 1806805

PLATE-RETAINER

$

$

Not available

5

Troy-Bilt 1806808

RETAINER

$

$

Currently unavailable

6

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

7

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1111599

SCR-HH 1/4-20X.625 G5 ZP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

9

MTD 1734366

SWITCH

$

$

Not available

10

MTD 1729587

BUSHING

$

$

Not available

11

MTD 1752840

BATTERY

$

$

Not available

12

MTD 1752586

BOLT-HOOK

$

$

Not available

13

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

14

Troy-Bilt 1739205

AMMETER 20-0-20

$

$

Currently unavailable

15

Troy-Bilt 1756074

CABLE-BATTERY (+)

$

$

Not available

16

Troy-Bilt 1754183

SWITCH-IGN
(Superseded to 1754183099)

$

$

Not available

17

MTD 1753986

KEY-IGNITION

$

$

Not available

18

MTD 1752408

TUBING

$

$

Not available

19

MTD 1745666

RELAY

$

$

Not available

20

Troy-Bilt 1749492

HARNESS-CRUISE

$

$

Currently unavailable

21

Troy-Bilt 1740056

SOLENOID
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 1115815

SCR-TRUSS #10-24 X 5/8
(Superseded to 710-0425)

$4.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

25

MTD 1755802

BATTERY-HOLDDOWN

$

$

Not available

26

Troy-Bilt 1732581

CABLE-STARTER

$

$

Currently unavailable

27

Troy-Bilt 1750846

HARNESS-MAIN

$

$

Currently unavailable

28

MTD 1727169

HARNESS-HEADLIGHT

$

$

Not available

29

Troy-Bilt 1805345

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

30

MTD 1749487

STRIP-SEALING

$

$

Not available

31

MTD 1748085

ASSM-LAMP

$

$

Not available

32

MTD 1734356

SWITCH-PTO
(Superseded to 1734356099)

$

$

Not available

33

MTD 1715012

NIPPLE-ELECTRICAL

$

$

Not available

34

MTD 1735285

BULB (MFG NO. GE 73)

$

$

Not available

35

MTD 1734472

SEAL-SWITCH

$

$

Not available

36

MTD 1756377

CABLE-BAT (-) TO ENG MNT

$

$

Not available

37

MTD 1742113

CONDENSOR

$

$

Not available

38

MTD 1749835

GROMMET-FLIP

$

$

Not available

39

MTD 1748723

SWITCH

$

$

Not available

40

MTD 1732374

SWITCH-CRUISE

$

$

Not available

41

MTD 1186020

SCR-PHP M6-32X.38 ZP

$

$

Not available
