1600 H (1668 R) - Troy-Bilt Tractor (SN: B050100101 - B050199999) ENGINE & DRIVE ASSEMBLY Parts Diagram

Tractor

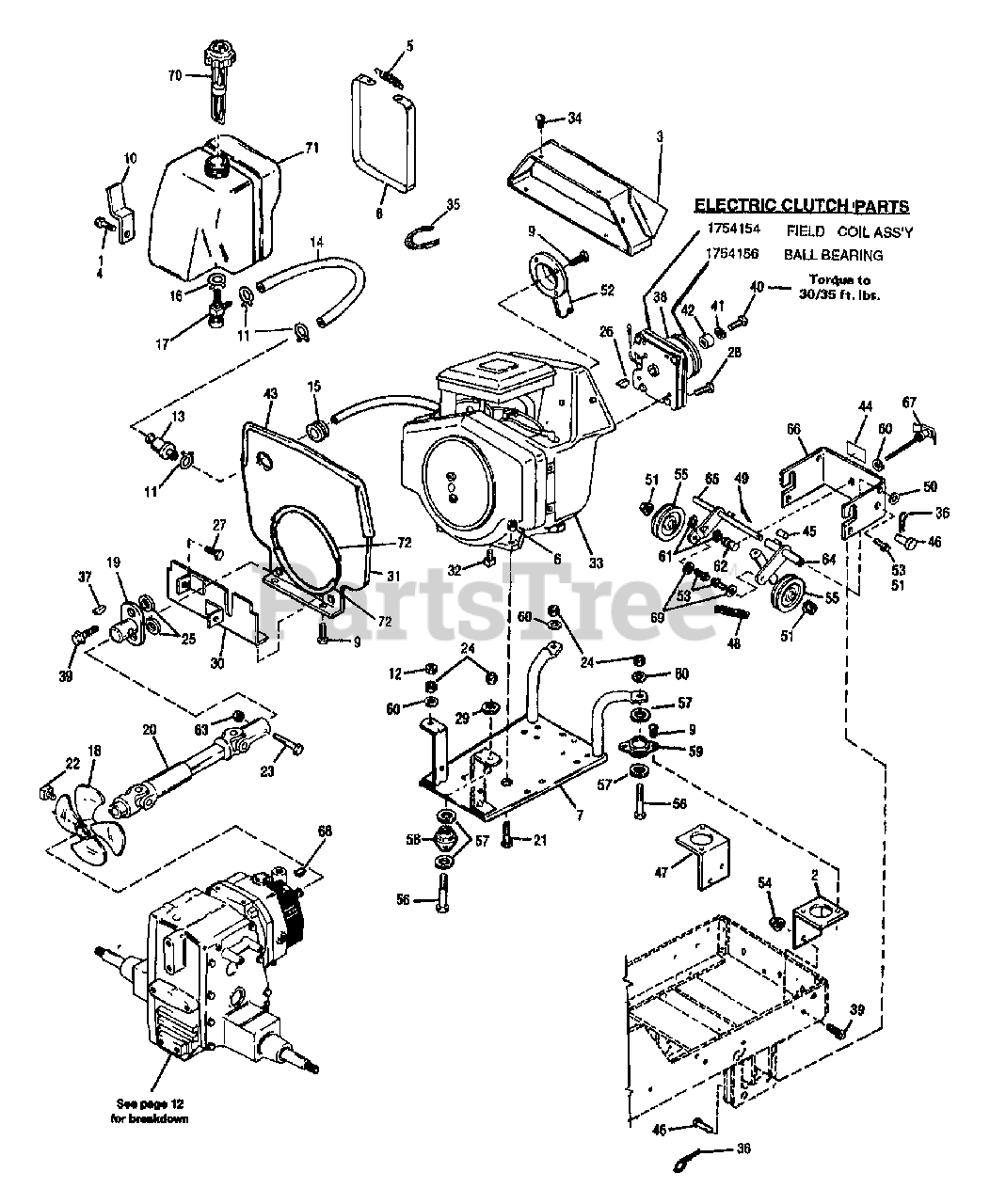

ENGINE & DRIVE ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1186310

SCR-HFLK 1/4-20X.75 G5 ZP

$3.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1741653010

SUPT-ENG RH FRONT

$

$

Currently unavailable

3

Troy-Bilt 1741664010

DEFL-HEAT SHIELD

$

$

Currently unavailable

4

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

5

MTD 1806648

SPRING-EXTENSION

$

$

Not available

6

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 1756470010

SUPPORT-ENGINE

$

$

Currently unavailable

8

Troy-Bilt 1727918010

STRAP

$

$

Currently unavailable

9

MTD 1185712

SCR

$

$

Not available

10

Troy-Bilt 1757213

RETAINER-TANK

$

$

Currently unavailable

11

MTD 1718185

CLAMP-HOSE

$

$

Not available

12

Troy-Bilt 1185506

NUT-HEX/JAM 3/8-16 ZP
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

13

Troy-Bilt 1727491

FILTER-FUEL
(Superseded to BS-298090S)

$5.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 1724708

LINE-FUEL
(Superseded to 751-10349-16)

$18.99

$

In Stock, Qty 13

0

15

MTD 1729587

BUSHING

$

$

Not available

16

MTD 1723474

CLAMP-HOSE

$

$

Not available

17

Troy-Bilt 1718029

VALVE-SHUT OFF

$

$

Currently unavailable

18

Troy-Bilt 1746503

FAN
(Superseded to 1770934)

$

$

Not available

19

MTD 1741654

EXTENSION-ENGINE

$

$

Not available

20

MTD 1743862

ASSM-DRIVESHAFT

$

$

Not available

21

MTD 1186332

SCR-HFLK 5/16-18X1.25 ZP

$

$

Not available

22

MTD 1737419

SCR-SQ HD SET 5/16X3/4

$

$

Not available

23

MTD 1100807

SCR-HH 1/4-20X2.0 G5 ZP

$

$

Not available

24

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 1108842

KEY-.25 SQ X.75
(Superseded to 914-0119)

$8.49

$

Usually ships in 3-6 days

0

27

MTD 1186327

SCR-HFLK 5/16-18X.50 ZP

$

$

Not available

28

MTD 1185798

SCR-HH 3/8-16X.50

$

$

Not available

29

Troy-Bilt 1185715

WASHER-LK .375 PYRAMIDAL

$

$

Not available

30

Troy-Bilt 1742344010

SHIELD-GRASS

$

$

Currently unavailable

31

Troy-Bilt 1741669010

SHIELD-HEAT

$

$

Currently unavailable

32

Troy-Bilt 1105620

PLUG-SQ HEAD 1/4-18 NPT

$3.99

$

In Stock, Qty 6

0

33

0

ENGINE, 16HP, BRIGGS & STRATTON 402447

$

$

Not available

34

MTD 1724492

SCR-FL SELF TAP

$

$

Not available

35

Troy-Bilt 1735531

CABLE TIE
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

36

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

37

Troy-Bilt 1100276

KEY-WOODRUFF .25X.875

$3.49

$

Usually ships in 3-6 days

0

38

MTD 1741572

CLUTCH/BRAKE ELEC

$

$

Not available

39

MTD 1186345

SCR

$

$

Not available

40

Troy-Bilt 1100009

SCR-HH 3/8-24X1.0 G5 ZP
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

41

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 1734790

CLUTCH-RETAINER

$

$

Currently unavailable

43

Troy-Bilt 1740344

GASKET-HEAT SHIELD 32"

$

$

Currently unavailable

44

MTD 1756843

DECAL-BELT ADJUSTMENT

$

$

Not available

45

MTD 1734935

CAP-INDICATOR

$

$

Not available

46

MTD 1708125

PIN-CLEVIS .5X1.06 ZP

$

$

Not available

47

Troy-Bilt 1733134010

SUPPORT-ENGINE

$

$

Currently unavailable

48

Troy-Bilt 1726661

SPRING

$

$

Currently unavailable

49

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP
(Superseded to 736-0237)

$3.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

In Stock, only 1 left!

0

52

MTD 1741964

ASSM-EXHAUST

$

$

Not available

53

MTD 1186350

SCR-HFLK 3/8-16X1.75 G5ZP

$

$

Not available

54

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

In Stock, only 1 left!

0

55

Troy-Bilt 1726660

PULLEY-IDLER
(Superseded to 756-0487)

$45.99

$

In Stock, only 4 left!

0

56

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5 ZP
(Superseded to 710-3011)

$6.49

$

In Stock, Qty 20+

0

57

MTD 1186047

WASHER

$

$

Not available

58

Troy-Bilt 1726510

MOUNT-REAR

$

$

Currently unavailable

59

MTD 1724896

MOUNT-FRONT

$

$

Not available

60

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

61

Troy-Bilt 1113527

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.49

$

In Stock, Qty 5

0

62

MTD 1742723

PIVOT

$

$

Not available

63

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

64

MTD 1738569010

ASSM-IDLER ARM

$

$

Not available

65

MTD 1742725010

ASSM-IDLER ARM

$

$

Not available

66

Troy-Bilt 1736481010

SUPPORT-IDLER

$

$

Currently unavailable

67

Troy-Bilt 1735112

KNOB-ADJUSTING

$

$

Currently unavailable

68

MTD 1185885

KEY-WOODRUFF

$

$

Not available

69

Troy-Bilt 1100256

WASHER-.986X.437X.083 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

70

Troy-Bilt 1748758

CAP-GAS
(Superseded to 751-0531B)

$77.99

$

In Stock, Qty 5

0

71

Troy-Bilt 1749484

TANK-FUEL

$

$

Currently unavailable

72

MTD 1755364

SEAL-HEAT SHIELD

$

$

Not available

MTD 1754154

ASSM-FIELD COIL

$

$

Not available

MTD 1754156

BEARING-CLUTCH LOWER

$

$

Not available
