1600 - Husqvarna Chainsaw, Electric (SN: 19984000001 & Above) ELECTRICAL Parts Diagram

Chainsaw, Electric

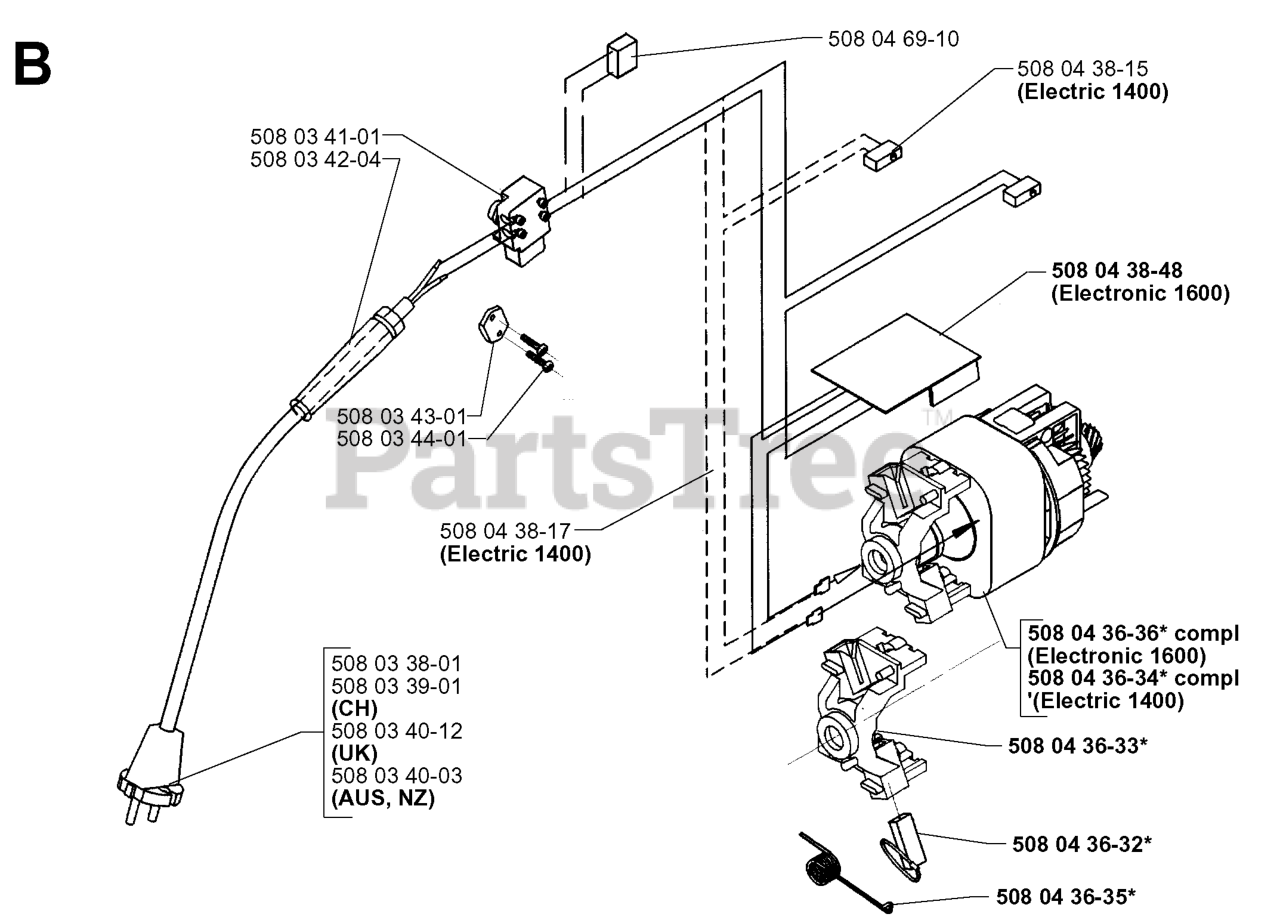

ELECTRICAL Parts Diagram

  • Title

508 03 41-01

Husqvarna 508034101

SWITCH W/ CATCH
(Superseded to 508034103)

$

$

Not available

508 03 42-04

Husqvarna 508034204

SLEEVE

$

$

Not available

508 03 43-01

Husqvarna 508034301

CABLE CLAMP

$

$

Not available

508 03 44-01

Husqvarna 508034401

SCREW

$

$

Not available

508 04 38-17

Husqvarna 508043817

LEAD

Note: ELECTRIC 1400

$

$

Not available

508 03 38-01

Husqvarna 508033801

CABLE W/ PLUG

$

$

Not available

508 03 39-01

Husqvarna 508033901

CABLE W/ PLUG NLA

Note: CH

$

$

Not available

508 03 40-12

Husqvarna 508034012

CABLE W/PLUG
(Superseded to 508034015)

Note: UK

$125.99

$

In Stock, only 4 left!

0

508 03 40-03

Husqvarna 508034003

CABLE W/ PLUG

Note: AUS, NZ

$

$

Not available

508 04 36-35

Husqvarna 508043635

SPRING

$

$

Not available

508 04 36-32

Husqvarna 508043632

BRUSH
(Superseded to 508043705)

$

$

Not available

508 04 36-33

Husqvarna 508043633

BMC BRACKET

$

$

Not available

508 04 36-34

Husqvarna 508043634

MOTOR
(Superseded to 508043640)

Note: ELECTRIC 1400

$

$

Not available

508 04 36-36

Husqvarna 508043636

MOTOR
(Superseded to 508043641)

Note: ELECTRONIC 1600

$

$

Not available

508 04 38-48

Husqvarna 508043848

PRINTED CIRCUIT CARD

Note: ELECTRONIC 1600

$

$

Not available

508 04 38-15

Husqvarna 508043815

MICRO SWITCH
(Superseded to 508043851)

Note: ELECTRIC 1400

$

$

Not available

508 04 69-10

Husqvarna 508046910

CAPACITOR
(Superseded to 508046914)

$

$

Not available
