16000 - Toro Fiesta Walk-Behind Mower (SN: 001000001 - 001999999) (1971) HOUSING AND ENGINE ASSEMBLY MODEL NO-S. 16000 AND 16111 Parts Diagram

Fiesta Walk-Behind Mower

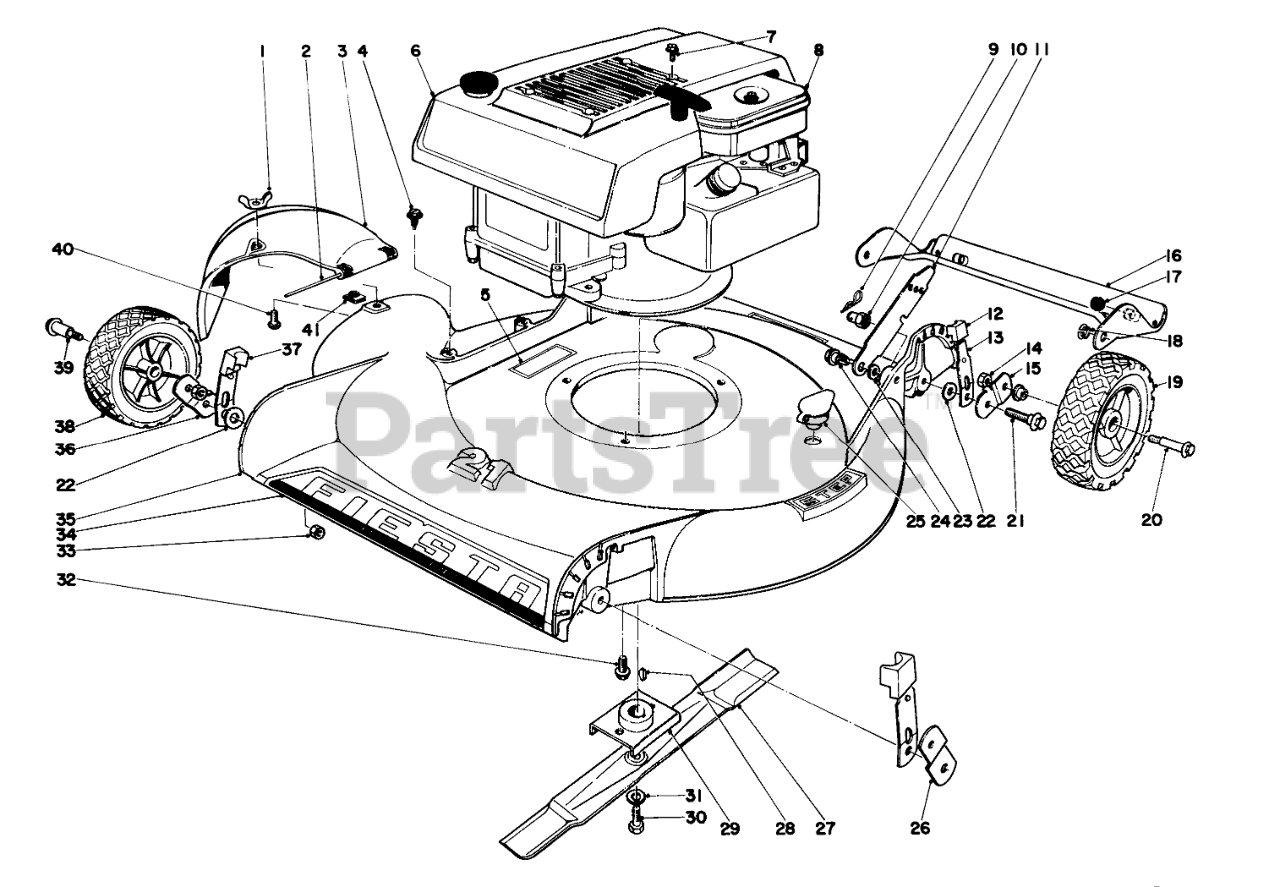

HOUSING AND ENGINE ASSEMBLY MODEL NO-S. 16000 AND 16111 Parts Diagram

  • Title

1

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

2

Toro 3-2644

HINGE PIN

$

$

Not available

3

Toro 10-9520

Deflector
(Superseded to 71-8640)

$

$

Not available

4

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 6-9690

Decal, Warning

$

$

Currently unavailable

6

Toro 11-0040

Shroud, Model #16000
(Superseded to 28-4720)

$79.99

$

Usually ships in 3-6 days

0

Toro 10-9570

Shroud

Note: Not illustrated

$

$

Not available

7

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

8

Toro 221-381

Engine, Model #16000

$

$

Currently unavailable

Toro 221-382

Engine (Model 16173)

Note: Not illustrated

$

$

Currently unavailable

9

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

10

Toro 3-6482

Nut
(Superseded to 12-2080)

$22.99

$

Usually ships in 3-6 days

0

11

Toro 5-2445

Handle Latch

$

$

Currently unavailable

12

Toro 6-6220

Arm Knob

$

$

Currently unavailable

13

Toro 5-3357-4

Spring Arm

$

$

Currently unavailable

14

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 5-4471-4

Pivot Arm

$

$

Currently unavailable

16

Toro 4-8879-4

Rear Safety Shield (Incl. Ref. #17, Model #16000)

$

$

Currently unavailable

Toro 4-8889-4

Rear Safety Shield (Incl. Ref. #17, Model #16111)

Note: Not illustrated

$

$

Currently unavailable

17

Toro 5-6450

SKID BUTTON

$

$

Not available

18

Toro 256-194

Nyliner

$

$

Currently unavailable

19

Toro 10-9680

WHEEL ASM 8

$

$

Not available

20

Toro 5-4503

Wheel Bolt

$

$

Currently unavailable

21

Toro 5-3351

Pivot Screw
(Superseded to 12-2440)

$22.99

$

Usually ships in 3-6 days

0

22

Toro 5-4460-4

Pivot Washer

$

$

Currently unavailable

23

Toro 3-3287

SPACER

$5.49

$

In Stock, only 3 left!

0

24

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

25

Toro 6-4500

WASHOUT PLUG

$

$

Not available

26

Toro 5-4473-4

Pivot Arm

$

$

Currently unavailable

27

Toro 3-0662

Blade, Model #16000

$

$

Not available

Toro 3-0663

21 ROTORY BLADE

Note: Not illustrated

$126.99

$

Usually ships in 3-6 days

0

28

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

29

Toro 3-0658

Blade Retainer

$

$

Currently unavailable

30

Toro 3-5246

SPECIAL SCREW

$

$

Not available

31

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

32

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

In Stock, Qty 5

0

33

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

34

Toro 10-9640

Decal, Model #16000

$

$

Currently unavailable

Toro 10-9650

Decal, Model #16111

Note: Not illustrated

$

$

Currently unavailable

35

Toro 10-8420

Housing, Model #16000

$

$

Currently unavailable

Toro 10-8430

Housing, Model #16111

Note: Not illustrated

$

$

Currently unavailable

36

Toro 5-4474-4

Pivot Arm

$

$

Currently unavailable

37

Toro 6-6230

Arm Knob
(Superseded to 25-7740)

$4.99

$

In Stock, Qty 11

0

38

Toro 10-9670

WHEEL ASM 7

$

$

Not available

39

Toro 3-2652

Bolt

$

$

Not available

40

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

41

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

Toro 5-4472-4

Pivot Arm

Note: Not illustrated

$

$

Currently unavailable

Toro 10-9610

Loose Parts, ModeI #16000

Note: Not illustrated

$

$

Currently unavailable

Toro 10-9620

Loose Parts, Model #16111

Note: Not illustrated

$

$

Currently unavailable
