1600143 - Simplicity 42" Dozer Blade Dozer Blade Group - 42" (3850I01) Parts Diagram

42" Dozer Blade

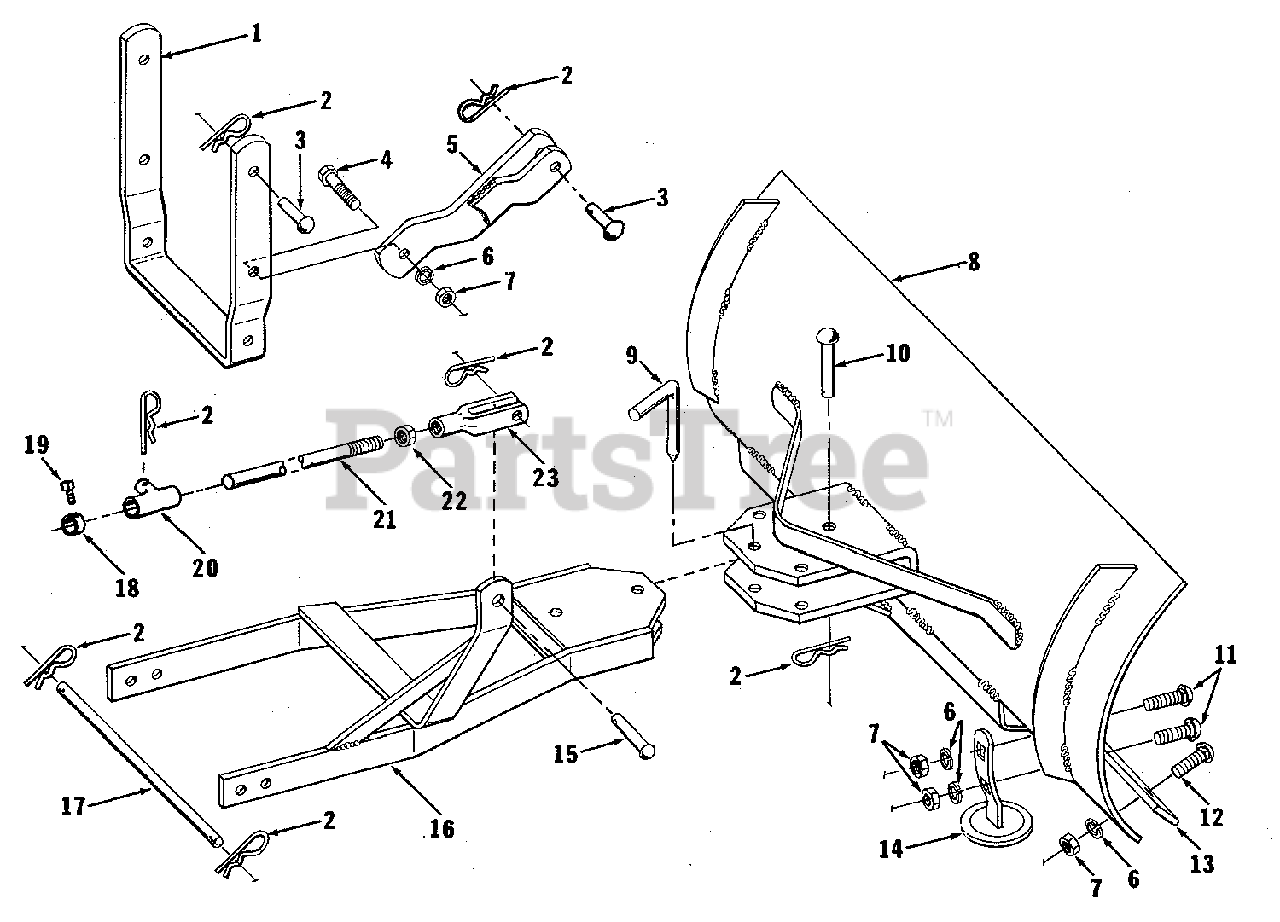

Dozer Blade Group - 42" (3850I01) Parts Diagram

  • Title

1

Simplicity LM-16065-47

FRAME, Push

$

$

Not available

2

Simplicity LM-81610-45

CLIP, Spring

$

$

Not available

3

Simplicity LM-01180-53

PIN

$

$

Not available

4

Simplicity LM-09174-00

SCREW, Hex Head, Cap, 3/8-16 x 1-1/4

$

$

Not available

5

Simplicity LM-16065-46

ARM, Support

$

$

Not available

6

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

7

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

8

Simplicity LM-01070-47

BLADE, 42"

$

$

Not available

9

Simplicity LM-16036-01

PIN, Pivot

$

$

Not available

10

Simplicity LM-16036-02

PIN, King

$

$

Not available

11

Simplicity LM-09232-32

BOLT, Carriage, 3/8-16 x 1

$

$

Not available

12

Simplicity LM-07020-03

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

13

Simplicity LM-01070-45

PLATE, Wear

$

$

Not available

14

Simplicity LM-01070-24

SHOE

$

$

Not available

15

Simplicity LM-01543-05

PIN, Yoke

$

$

Not available

16

Simplicity LM-16065-79

BAR, Push

$

$

Not available

17

Simplicity LM-01070-89

ROD, Pivot

$

$

Not available

18

Simplicity LM-83010-42

COLLAR, Set

$

$

Not available

19

Simplicity LM-09287-09

SCREW, Set, 5/16-18 x 3/8

$

$

Not available

20

Simplicity LM-01704-36

TUBE, Guide

$

$

Not available

21

Simplicity LM-01767-27

ROD, Lift

$

$

Not available

22

Simplicity LM-09194-23

NUT, Hex, 1/2-20

$

$

Not available

23

Simplicity LM-01576-31

YOKE, End Adjustment.

$

$

Not available
