1600168 - Simplicity 42" Dozer Blade Dozer Blade Group - 42" (3863I01) Parts Diagram

42" Dozer Blade

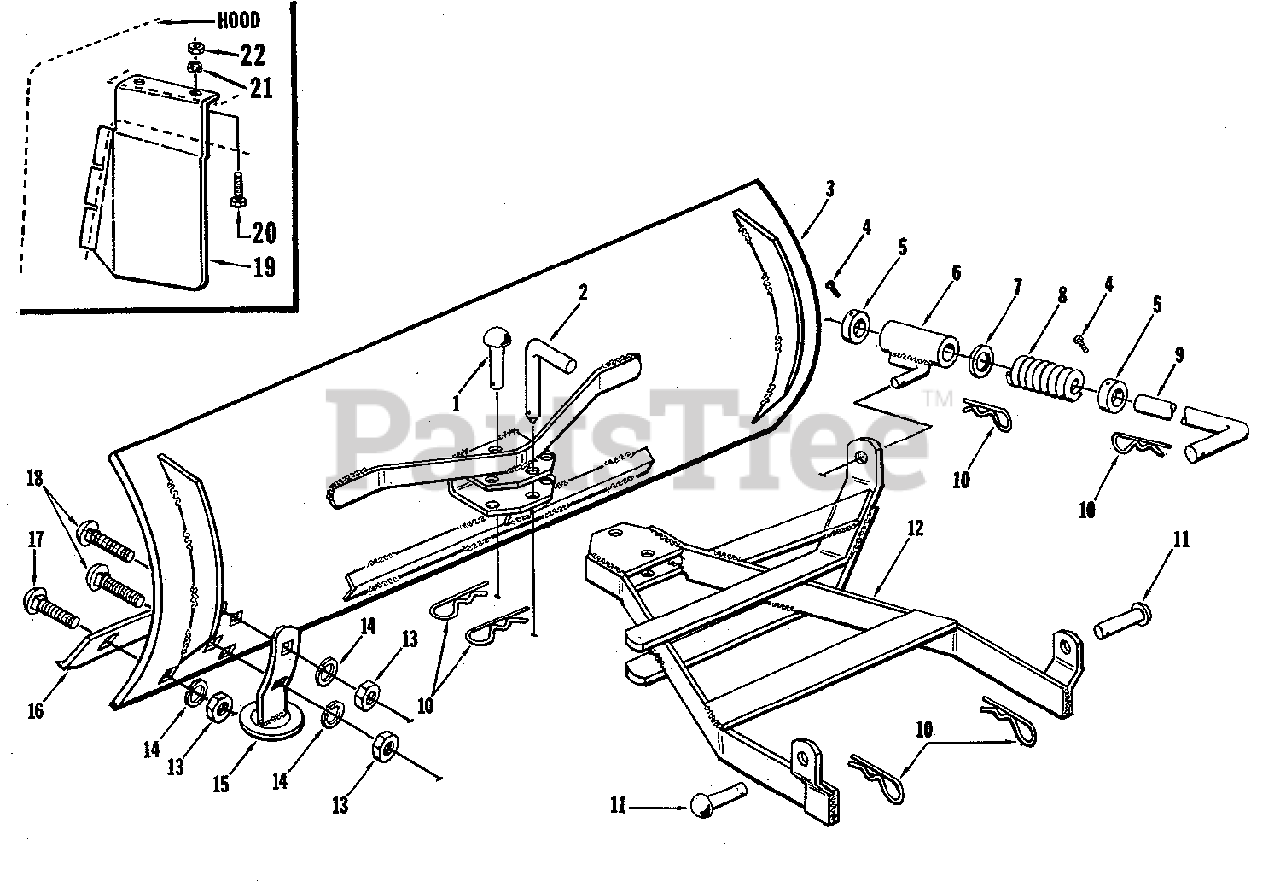

Dozer Blade Group - 42" (3863I01) Parts Diagram

  • Title

1

Simplicity LM-16036-02

PIN, King

$

$

Not available

2

Simplicity LM-16036-01

PIN, Pivot

$

$

Not available

3

Simplicity LM-01070-47

BLADE ASSEMBLY, 42"

$

$

Not available

4

Simplicity LM-09287-09

SCREW, Set, 5/16-18

$

$

Not available

5

Simplicity LM-80310-07

COLLAR, Set

$

$

Not available

6

Simplicity LM-01716-79

GUIDE ASSEMBLY, Rod

$

$

Not available

7

Simplicity LM-09169-60

WASHER, Flat, 17/32 x 1-1/4

$

$

Not available

8

Simplicity LM-01710-11

SPRING

$

$

Not available

9

Simplicity LM-16066-35

ROD, Lift

$

$

Not available

10

Simplicity LM-01067-88

PIN, Quick, 1/8

$

$

Not available

11

Simplicity LM-01180-53

PIN, Hitch

$

$

Not available

12

Simplicity LM-16066-28

BAR ASSEMBLY, Push

$

$

Not available

13

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

14

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

15

Simplicity LM-01070-24

SHOE ASSEMBLY

$

$

Not available

16

Simplicity LM-01070-45

PLATE, Wear

$

$

Not available

17

Simplicity LM-09221-10

BOLT, Round Head, 3/8-16 x 3/4

$

$

Not available

18

Simplicity LM-09232-32

BOLT, Round Head, 3/8-16 x 1

$

$

Not available

19

Simplicity LM-16074-23

DEFLECTOR, Snow

$

$

Not available

20

Simplicity LM-09082-95

SCREW, Cap, Hex Head, 1/4-20 x 1/2

$

$

Not available

21

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

22

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available
