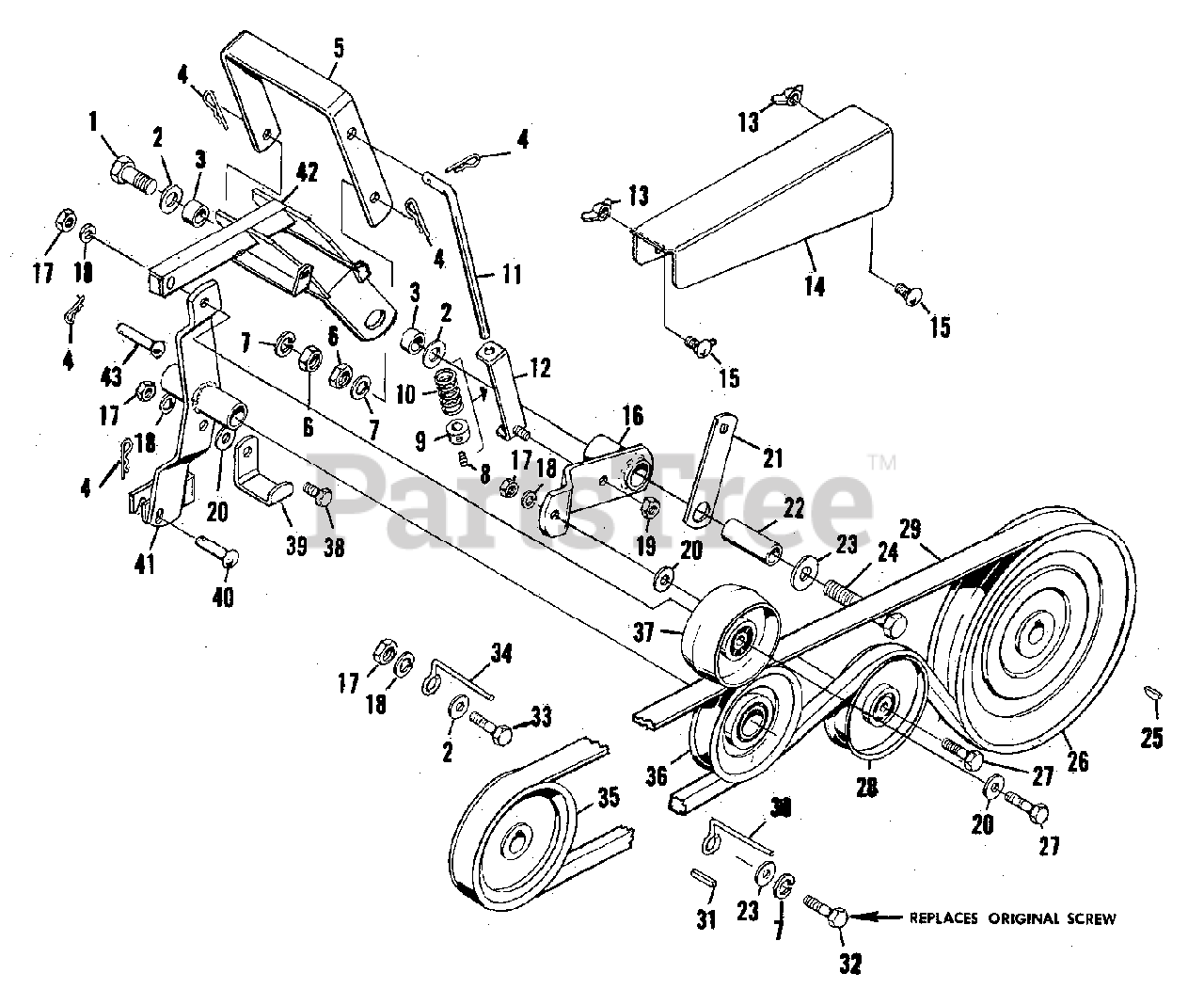

1600171 - Homelite Tiller Attachment Clutch & Belt Drive Group (3865I01) Parts Diagram

Tiller Attachment

Clutch & Belt Drive Group (3865I01) Parts Diagram

  • Title

1

Simplicity LM-09164-32

SCREW, Hex Cap, 7/16-14 x 1-1/4

$

$

Not available

2

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

3

Simplicity LM-01053-46

SPACER

$

$

Not available

4

Simplicity LM-01067-87

CLIP, Spring

$

$

Not available

5

Simplicity LM-01053-03

HANDLE, Clutch

$

$

Not available

6

Simplicity LM-09182-13

NUT, Hex Jam, 7/16-14

$

$

Not available

7

Simplicity LM-09181-99

WASHER, Lock, 7/16

$

$

Not available

8

Simplicity LM-09038-07

SCREW, Set, 1/4-20 x 3/8

$

$

Not available

9

Simplicity LM-81910-22

COLLAR, Set

$

$

Not available

10

Simplicity LM-01620-65

SPRING

$

$

Not available

11

Simplicity LM-01053-43

ROD, Clutch

$

$

Not available

12

Simplicity LM-01584-06

GUIDE ASSEMBLY, Rod

$

$

Not available

13

Simplicity LM-07180-06

NUT, Wing, 5/16-18

$

$

Not available

14

Simplicity LM-01053-26

GUARD, Belt

$

$

Not available

15

Simplicity LM-09205-62

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

16

Simplicity LM-01052-95

LEVER ASSEMBLY, Clutch

$

$

Not available

17

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

18

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

19

Simplicity LM-09233-62

NUT, Hex, 5/16-18

$

$

Not available

20

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

21

Simplicity LM-01053-59

SUPPORT, Belt Guard

$

$

Not available

22

Simplicity LM-01053-39

SPACER

$

$

Not available

23

Simplicity LM-09184-30

WASHER, Flat, 7/16

$

$

Not available

24

Simplicity LM-07150-93

SCREW, Hex Cap, 7/16-14 x 3-1/2

$

$

Not available

25

Simplicity LM-09051-23

KEY, Woodruff, #9

$

$

Not available

26

Simplicity LM-01053-02

PULLEY

$

$

Not available

27

Simplicity LM-09174-00

SCREW, Hex Cap, 3/8-16 x 1-1/4

$

$

Not available

28

Simplicity LM-01053-06

PULLEY

$

$

Not available

29

Simplicity LM-01053-40

BELT, "V", 12 HP

$

$

Not available

30

Simplicity LM-16060-14

STOP, Belt

$

$

Not available

31

Simplicity LM-80610-81

KEY

$

$

Not available

32

Simplicity LM-09234-71

SCREW, Hex Cap, 7/16-14 x 1-1/4

$

$

Not available

33

Simplicity LM-09077-31

SCREW, Hex Cap, 3/8-16 x 1

$

$

Not available

34

Simplicity LM-01670-32

STOP, Belt

$

$

Not available

35

Simplicity LM-01642-02

PULLEY

$

$

Not available

36

Simplicity LM-01053-80

PULLEY, Idler

$

$

Not available

37

Simplicity LM-01640-83

PULLEY, Idler

$

$

Not available

38

Simplicity LM-09193-57

SCREW, Hex Cap, 3/8-16 x 7/8

$

$

Not available

39

Simplicity LM-01053-51

GUARD, Belt

$

$

Not available

40

Simplicity LM-01563-06

PIN

$

$

Not available

41

Simplicity LM-01053-22

ARM ASSEMBLY, Idler

$

$

Not available

42

Simplicity LM-16074-25

BAR ASSEMBLY, Lift

$

$

Not available

43

Simplicity LM-01180-53

PIN

$

$

Not available
