1600172 - Simplicity PTO, 540 RPM PTO Group - 540 RPM (3852I01) Parts Diagram

PTO, 540 RPM

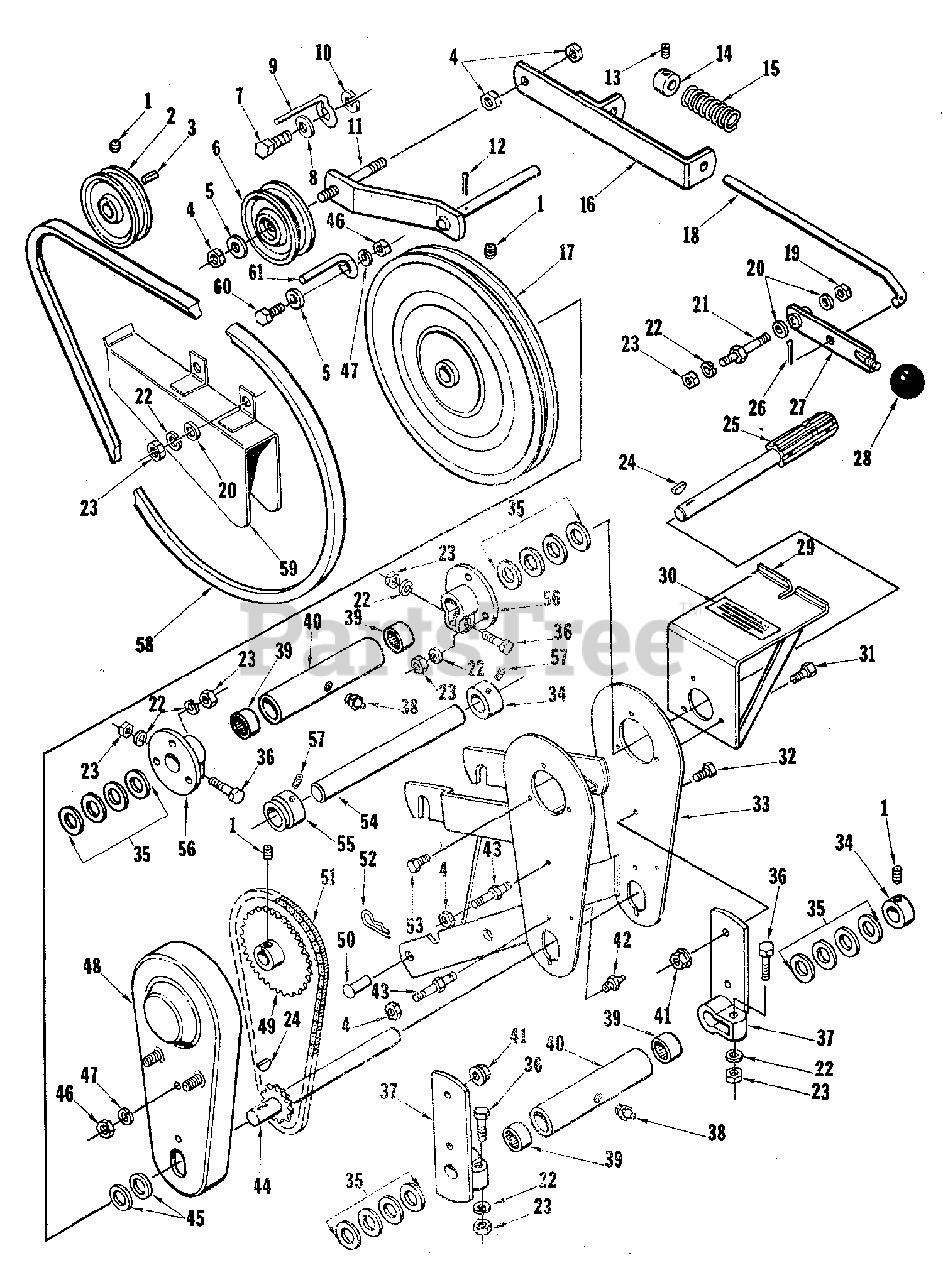

PTO Group - 540 RPM (3852I01) Parts Diagram

  • Title

1

Simplicity LM-09286-91

SCREW, Set, 5/16-18 x 5/16

$

$

Not available

2

Simplicity LM-01642-02

PULLEY

$

$

Not available

3

Simplicity LM-80610-81

KEY

$

$

Not available

4

Simplicity LM-09234-28

NUT, Hex Lock, 3/8-16

$

$

Not available

5

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

6

Simplicity LM-01052-85

PULLEY, Idler

$

$

Not available

7

Simplicity LM-09234-71

SCREW, Cap, 7/16-14 x 1-1/4

$

$

Not available

8

Simplicity LM-09184-30

WASHER, Flat, 7/16

$

$

Not available

9

Simplicity LM-16060-14

STOP, Belt

$

$

Not available

10

Simplicity LM-09181-99

WASHER, Lock, 7/16

$

$

Not available

11

Simplicity LM-01670-21

PIVOT ASSEMBLY

$

$

Not available

12

Simplicity LM-09184-52

PIN, Cotter, 1/8 x 1

$

$

Not available

13

Simplicity LM-09038-07

SCREW, Set, 1/4-20 x 3/8"

$

$

Not available

14

Simplicity LM-81910-22

COLLAR, Set

$

$

Not available

15

Simplicity LM-01631-03

SPRING

$

$

Not available

16

Simplicity LM-80815-03

GUIDE ASSEMBLY, Clutch

$

$

Not available

17

Simplicity LM-01670-20

PULLEY

$

$

Not available

18

Simplicity LM-01670-25

ROD, Clutch

$

$

Not available

19

Simplicity LM-09233-62

NUT, Hex Lock, 5/16-18

$

$

Not available

20

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

21

Simplicity LM-01620-63

STUD

$

$

Not available

22

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

23

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

24

Simplicity LM-09051-23

KEY, Woodruff

$

$

Not available

25

Simplicity LM-01670-14

SHAFT ASSEMBLY

$

$

Not available

26

Simplicity LM-09220-00

PIN, Cotter, 3/32 x 5/8

$

$

Not available

27

Simplicity LM-01670-26

HANDLE ASSEMBLY

$

$

Not available

28

Simplicity LM-80210-50

BALL, Knob

$

$

Not available

29

Simplicity LM-01670-11

GUARD ASSEMBLY, PTO

$

$

Not available

30

Simplicity LM-01670-30

DECAL, Warning

$

$

Not available

31

Simplicity LM-09173-97

SCREW, Cap, 5/16-18 x 3/4

$

$

Not available

32

Simplicity LM-09081-27

SCREW, Cap, 3/8-16 x 3/4

$

$

Not available

33

Simplicity LM-16074-59

FRAME ASSEMBLY

$

$

Not available

34

Simplicity LM-80210-10

COLLAR, Set

$

$

Not available

35

Simplicity LM-80610-12

WASHER

$

$

Not available

36

Simplicity LM-09199-33

SCREW, Cap, 5/16-18 x 1-1/2

$

$

Not available

37

Simplicity LM-01064-79

SUPPORT ASSEMBLY, Clamp

$

$

Not available

38

Simplicity LM-09128-08

FITTING, Grease

$

$

Not available

39

Simplicity LM-01542-58

BEARING, Needle

$

$

Not available

40

Simplicity LM-01670-06

HOUSING, Bearing

$

$

Not available

41

Simplicity LM-09283-52

NUT, Flange, Hex Lock, 3/8-16

$

$

Not available

42

Simplicity LM-07270-12

FITTING, Grease

$

$

Not available

43

Simplicity LM-01067-71

STUD

$

$

Not available

44

Simplicity LM-01670-07

SHAFT ASSEMBLY

$

$

Not available

45

Simplicity LM-01670-19

WASHER

$

$

Not available

46

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

47

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

48

Simplicity LM-01725-50

GUARD ASSEMBLY, Chain

$

$

Not available

49

Simplicity LM-01670-17

SPROCKET ASSEMBLY

$

$

Not available

50

Simplicity LM-01550-37

PIN

$

$

Not available

51

Simplicity LM-01060-58

CHAIN, W/Connector Link

$

$

Not available

52

Simplicity LM-01067-88

PIN, Quick

$

$

Not available

53

Simplicity LM-09193-18

SCREW, Cap, 5/16-18 x 5/8

$

$

Not available

54

Simplicity LM-01542-16

SHAFT, Lift

$

$

Not available

55

Simplicity LM-01576-95

COLLAR, Set

$

$

Not available

56

Simplicity LM-01670-09

FLANGE ASSEMBLY

$

$

Not available

57

Simplicity LM-09117-12

SCREW, Set

$

$

Not available

58

Simplicity LM-01230-73

BELT, "V"

$

$

Not available

59

Simplicity LM-01730-13

GUARD ASSEMBLY, Belt

$

$

Not available

60

Simplicity LM-09077-31

SCREW, Cap, 3/8-16 x 1

$

$

Not available

61

Simplicity LM-01670-32

STOP, Belt

$

$

Not available
