1600175 - Simplicity 16" Plow Plow Group - 16" (3853I01) Parts Diagram

16" Plow

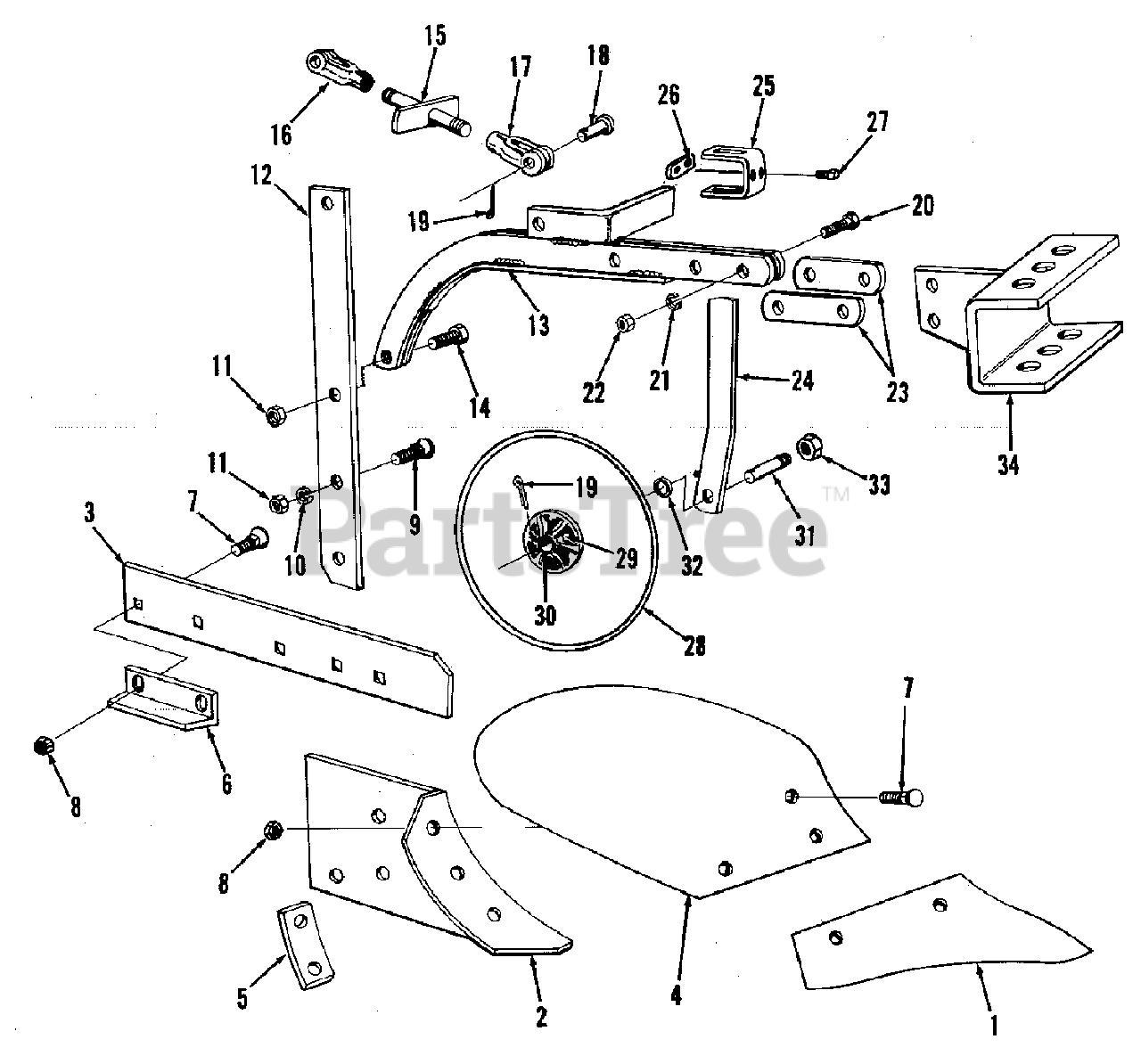

Plow Group - 16" (3853I01) Parts Diagram

  • Title

1

Simplicity LM-01120-65

SHARE

$

$

Not available

2

Simplicity LM-01120-66

SADDLE

$

$

Not available

3

Simplicity LM-01120-67

LANDSLIDE

$

$

Not available

4

Simplicity LM-01120-68

MOLDBOARD

$

$

Not available

5

Simplicity LM-01120-69

BRACE, Moldboard

$

$

Not available

6

Simplicity LM-01120-70

ANGLE, Slip Heel

$

$

Not available

7

Simplicity LM-07040-07

BOLT, Plow, 7/16-14 x 1-1/4

$

$

Not available

8

Simplicity LM-07170-25

NUT, Square

$

$

Not available

9

Simplicity LM-07040-06

BOLT, Plow, 1/2-13 x 1-1/2

$

$

Not available

10

Simplicity LM-09169-66

WASHER, Lock

$

$

Not available

11

Simplicity LM-09169-51

NUT, Full Hex

$

$

Not available

12

Simplicity LM-01120-44

STANDARD

$

$

Not available

13

Simplicity LM-01120-77

BEAM ASSEMBLY, Plow

$

$

Not available

14

Simplicity LM-07050-46

SCREW, Hex Cap, 1/2-13 x 1-3/4

$

$

Not available

15

Simplicity LM-01120-47

YOKE, Rod Assembly

$

$

Not available

16

Simplicity LM-01120-50

YOKE, L.H.

$

$

Not available

17

Simplicity LM-01120-51

YOKE, R.H.

$

$

Not available

18

Simplicity LM-01120-52

PIN, Yoke

$

$

Not available

19

Simplicity LM-09184-52

PIN, Cotter

$

$

Not available

20

Simplicity LM-09221-30

SCREW, Hex Cap

$

$

Not available

21

Simplicity LM-09169-65

WASHER, Lock

$

$

Not available

22

Simplicity LM-09169-50

NUT, Full Hex

$

$

Not available

23

Simplicity LM-01120-76

SPACER, Plow Beam

$

$

Not available

24

Simplicity LM-01120-57

STANDARD, Coulter

$

$

Not available

25

Simplicity LM-02710-23

SHANK, Clamp

$

$

Not available

26

Simplicity LM-82010-73

NUT, Special

$

$

Not available

27

Simplicity LM-16024-04

SETSCREW, Square Head

$

$

Not available

28

Simplicity LM-01120-40

COULTER ASSEMBLY, W/Bushing

$

$

Not available

29

Simplicity LM-09128-08

FITTING, Grease

$

$

Not available

30

Simplicity LM-01120-32

BUSHING

$

$

Not available

31

Simplicity LM-01120-58

SPINDLE, Coulter

$

$

Not available

32

Simplicity LM-82610-55

WASHER

$

$

Not available

33

Simplicity LM-09189-35

NUT, Hex Jam

$

$

Not available

34

Simplicity LM-16063-09

BEAM, End Assembly

$

$

Not available
