1600197 - Simplicity 57" Sickle Bar 57" Sickle Bar-Sickle Group Parts Diagram

57" Sickle Bar

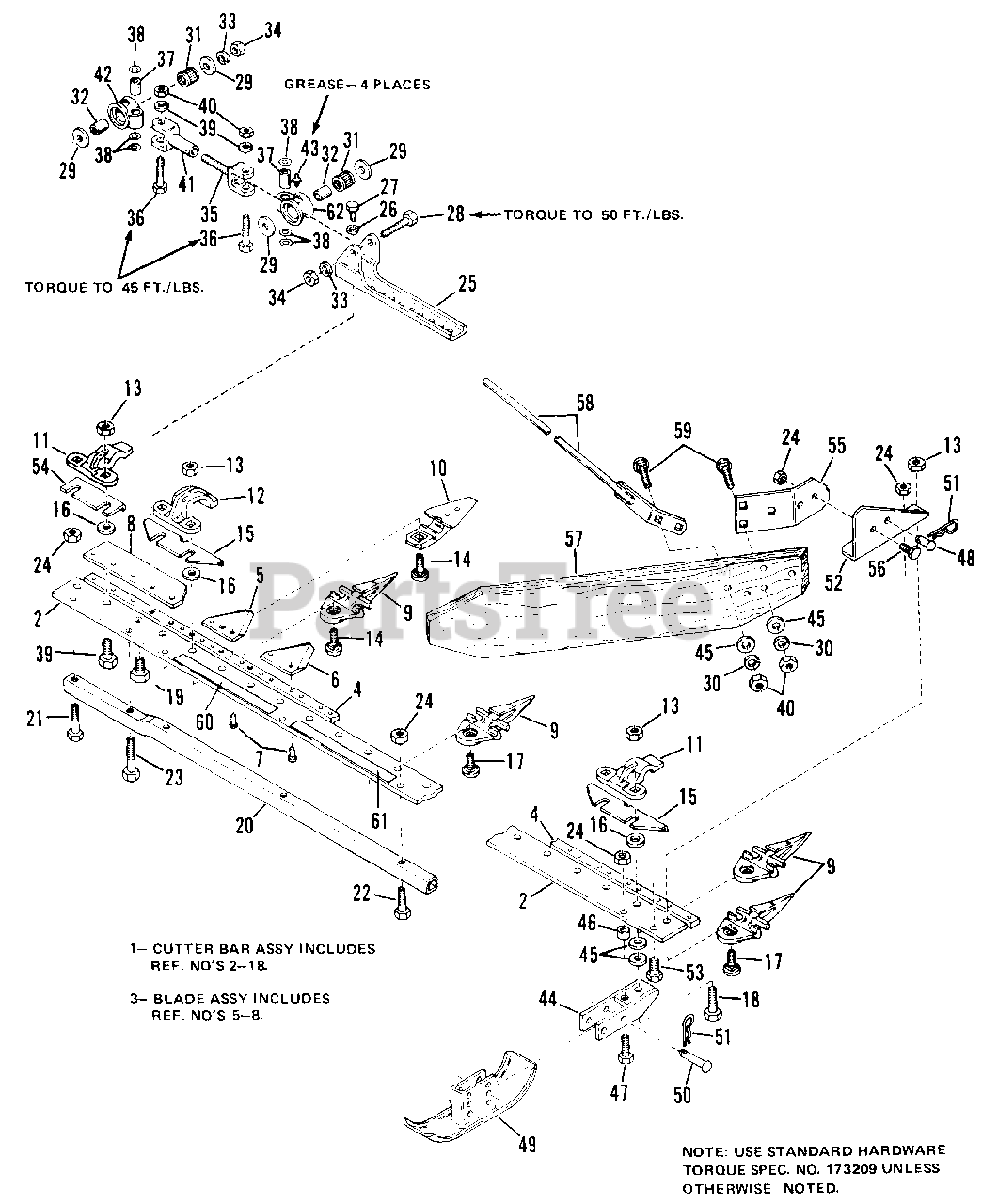

57" Sickle Bar-Sickle Group Parts Diagram

  • Title

1

Simplicity 174216

BAR ASSY, Cutter, (Includes Ref. No's 2-18)

$

$

Not available

2

Simplicity 174188

BAR, Cutter

$

$

Not available

3

Simplicity 174201

BLADE ASSY, (Includes Ref. No's 5-8)

$

$

Not available

4

Simplicity 174202

BAR

$

$

Not available

5

Simplicity 174203

SECTION, Knife

$

$

Not available

6

Simplicity 174535

SECTION, Knife

$

$

Not available

7

Simplicity 924614

RIVET, Oval Hd., No. 5-1/2 x 21/32

$

$

Not available

8

Simplicity 173559

BAR, Filler

$

$

Not available

9

Simplicity 174536

GUARD

$

$

Not available

10

Simplicity 174541

FINGER ASSY, Shear

$

$

Not available

11

Simplicity 174537

CLIP, Bar

$

$

Not available

12

Simplicity 174538

CLIP, Bar

$

$

Not available

13

Simplicity 2824058

NUT, Hex, Lock, 7/16-14

$

$

Not available

14

Simplicity 922098

BOLT, Rd. Hd., Sq. Nk., 7/16-14 x 1-1/2

$

$

Not available

15

Simplicity 174539

PLATE, Wear

$

$

Not available

16

Simplicity 174540

WASHER, Plain

$

$

Not available

17

Simplicity 924324

BOLT, Rd. Hd., Sq. Nk., 7/16-14 x 1-1/4

$

$

Not available

18

Simplicity 917403

CAPSCREW, Hex Hd., 7/16-14 x 1-1/2

$

$

Not available

19

Simplicity 2820677

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

20

Simplicity 174183

TUBE, Square

$

$

Not available

21

Simplicity 2822130

CAPSCREW, Hex Hd., 3/8-16 x 2-1/4

$

$

Not available

22

Simplicity 2819361

CAPSCREW, Hex Hd., 7/16-14 x 2

$

$

Not available

23

Simplicity 1928957SM

CAPSCREW, Hex Hd., 7/6 7/16-14 x 1/4

$6.49

$

In Stock, only 2 left!

0

24

Simplicity 2823428

NUT, Hex, Full Lock, 3/8-16

$

$

Not available

25

Simplicity 174191

HEAD, Sickle

$

$

Not available

26

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 8

0

27

Simplicity 2821515

CAPSCREW, Hex Hd., 5/16-24 x 3/4

$

$

Not available

28

Simplicity 926109

CAPSCREW, Hex Hd., 7/16-14 x 2-1/4

$

$

Not available

29

Simplicity 173141

WASHER

$

$

Not available

30

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 2157678SM

BEARING, Needle

$34.99

$

Usually ships in 2-12 days

0

32

Simplicity 173177

SPACER

$

$

Not available

33

Simplicity 2818199

LOCKWASHER, Spring, 7/16

$

$

Not available

34

Simplicity 2818213

NUT, Hex, 7/16-14

$

$

Not available

35

Simplicity 173530

CLEVIS ASSY

$

$

Not available

36

Simplicity 930583

CAPSCREW, Hex Hd., 3/8-16 x 2-1/4, Gr. 8

$

$

Not available

37

Snapper 1729273SM

BEARING, Pivot Block

$76.99

$

In Stock, only 1 left!

0

38

Simplicity 2101025SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

39

Simplicity 2821212

CAPSCREW, Hex Hd., 7/16-14 x 1-1/2

$

$

Not available

40

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 12

0

41

Simplicity 173529

CLEVIS ASSY

$

$

Not available

42

Simplicity 174322

HOUSING, Bearing Pitman

$

$

Not available

43

Simplicity 2812808SM

FITTING, Lube, 1/4-28

$4.99

$

In Stock, Qty 20+

0

44

Simplicity 174194

SUPPORT ASSY

$

$

Not available

45

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

46

Simplicity 174206

SPACER

$

$

Not available

47

Simplicity 2819360

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

48

Simplicity 1708298SM

PIN

$

$

Not available

49

Simplicity 174181

SHOE ASSY

$

$

Not available

50

Simplicity 2105249SM

PIN

$17.99

$

Usually ships in 2-12 days

0

51

Simplicity 2106787

CLIP, Spring

$

$

Not available

52

Simplicity 174393

BRACKET

$

$

Not available

53

Simplicity 2807731

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

54

Simplicity 174368

PLATE, Wear

$

$

Not available

55

Simplicity 174557

SUPPORT, Div. Brd.

$

$

Not available

56

Simplicity 108766

BOLT, Hex, Shoulder

$

$

Not available

57

Simplicity 101078

BOARD, Divider

$

$

Not available

58

Simplicity 101079

ROD ASSY, Divider

$

$

Not available

59

Simplicity 2819444

BOLT, Rd. Hd., Sq. Nk., 3/8-16 x 1-1/2

$

$

Not available

60

Simplicity 101120

DECAL, Safety First

$

$

Not available

61

Simplicity 101121

DECAL, Engine Shut-off

$

$

Not available

62

Simplicity 8161196

HOUSING, Bearing Pitman

$

$

Not available
