1600199 - Simplicity 48" Rotary Tiller Attachment 48" Rotary Tiller-Frame & Tines Group Parts Diagram

48" Rotary Tiller Attachment

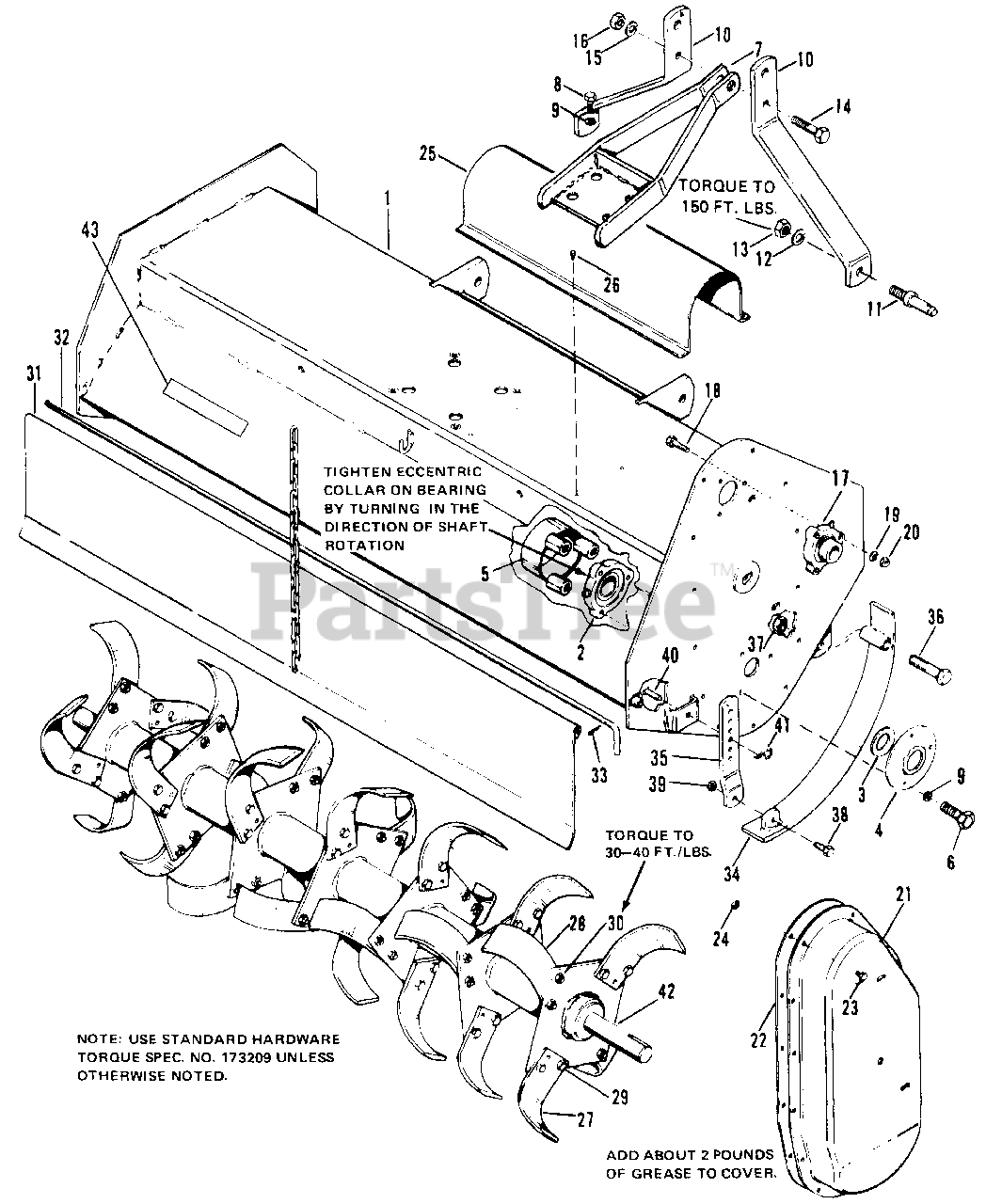

48" Rotary Tiller-Frame & Tines Group Parts Diagram

  • Title

1

Simplicity 172476

FRAME ASSY, Main

$

$

Not available

2

Simplicity 2172536

BEARING, Flange

$

$

Not available

3

Simplicity 2172458SM

SEAL

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 2172507A

SEAL, Retaining

$

$

Not available

5

Simplicity 2175138

GUARD ASSY, Trash

$

$

Not available

6

Simplicity 2822606

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4, Gr. 8

$

$

Not available

7

Simplicity 172943

BRACE ASSY

$

$

Not available

8

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

9

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

10

Simplicity 172464

MAST

$

$

Not available

11

Simplicity 172500

PIN, Hitch

$

$

Not available

12

Simplicity 2817373

LOCKWASHER, Spring, 5/8

$

$

Not available

13

Simplicity 2815726

NUT, Hex, Full, 5/8-11

$

$

Not available

14

Simplicity 927392

CAPSCREW, Hex Hd., 7/16-20 x 2-1/2

$

$

Not available

15

Simplicity 2816966

LOCKWASHER, Spring, 1/2

$

$

Not available

16

Simplicity 19423

NUT, Hex, Full, 1/2-20

$185.99

$

Usually ships in 2-12 days

0

17

Simplicity 172870

BEARING, Flange

$

$

Not available

18

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

19

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 172519

COVER ASSY

$

$

Not available

22

Simplicity 2172482SM

GASKET

$47.99

$

Usually ships in 2-12 days

0

23

Simplicity 2819318

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

24

Simplicity 2823362

NUT, Hex, Lock, 5/16-18

$

$

Not available

25

Simplicity 172859

GUARD

$

$

Not available

26

Simplicity 2827428

SCREW, Hex, Wshr. Hd, Taptite, 1/4-20 x 3/8

$

$

Not available

27

Simplicity 2172511SM

TINE BLADE, R.H.
(Superseded to 2172511ASM)

$34.99

$

In Stock, Qty 20+

0

28

Simplicity 2172512SM

TINE BLADE, L.H.
(Superseded to 2172512ASM)

$34.99

$

In Stock, Qty 20+

0

29

Simplicity 2825204

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

30

Simplicity 926933

NUT, Hex, Lock, 3/8-16

$

$

Not available

31

Simplicity 173436

DEFLECTOR ASSY

$

$

Not available

32

Simplicity 172818

ROD, Deflector

$

$

Not available

33

Simplicity 2818448

PIN, Cotter, 3/32 x 1

$

$

Not available

34

Simplicity 2172875A

SKID ASSY

$

$

Not available

35

Simplicity 2172879A

BRACKET, Adj.

$

$

Not available

36

Simplicity 2822118

CAPSCREW, Hex Hd., 5/8-11 x 3

$

$

Not available

37

Simplicity 2823353

NUT, Hex, Full Lock, 5/8-11

$

$

Not available

38

Simplicity 2807731

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

39

Simplicity 2823428

NUT, Hex, Full Lock, 3/8-16

$

$

Not available

40

Simplicity 2823087

PIN, Yoke, 3/8

$

$

Not available

41

Simplicity 1918196SM

PIN, Quick, 1 x 7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 5

0

42

Simplicity 172771

ROTOR ASSY

$

$

Not available

43

Simplicity 103031

DECAL, Safety

$

$

Not available
