1600201 - Simplicity 60" Dozer Blade 60" Dozer Blade Parts Diagram

60" Dozer Blade

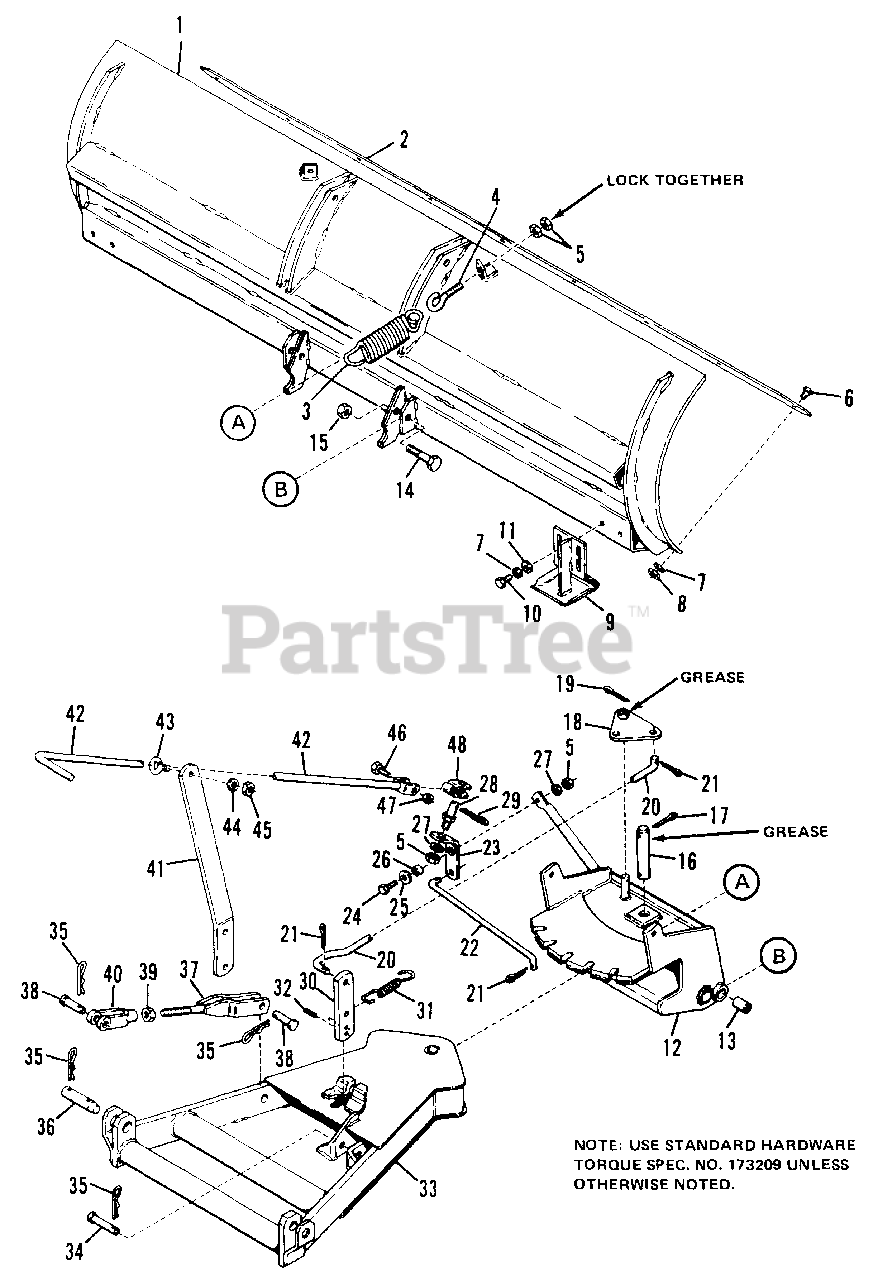

60" Dozer Blade Parts Diagram

  • Title

1

Simplicity 173355

BLADE ASSY, 60"

$

$

Not available

2

Simplicity 173428

PLATE, Wear

$

$

Not available

3

Simplicity 2101126SM

SPRING, Tension

$49.99

$

Usually ships in 2-12 days

0

4

Simplicity 2107121SM

BOLT, Eye

$15.99

$

Usually ships in 2-12 days

0

5

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 8

0

6

Simplicity 2823232

BOLT, Rd. Hd., Sq. Nk., 3/8-16 x 1

$

$

Not available

7

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 12

0

9

Simplicity 2107106SM

SHOE ASSY
(Superseded to 2107106ASM)

$68.99

$

In Stock, only 1 left!

0

10

Simplicity 2808127

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

11

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 173343

FRAME ASSY, Pivot

$

$

Not available

13

Simplicity 174061

SPACER

$

$

Not available

14

Simplicity 2827469

CAPSCREW, Hex Hd., 1/2-13 x 2-1/4, Gr. 8

$

$

Not available

15

Simplicity 2822134

NUT, Hex, Lock, 1/2-13

$

$

Not available

16

Simplicity 173571

PIN, Pivot

$

$

Not available

17

Simplicity 2819314

PIN, Cotter, 3/16 x 1-1/4

$

$

Not available

18

Simplicity 2107116SM

PLATE ASSY, Pivot

$

$

Not available

19

Simplicity 2818452

PIN, Cotter

$

$

Not available

20

Simplicity 173348

ROD, Latch

$

$

Not available

21

Simplicity 2822000

PIN, Cotter, 3/32 x 5/8

$

$

Not available

22

Simplicity 173663

ROD, Pivot

$

$

Not available

23

Simplicity 107119

ARM, Pivot

$

$

Not available

24

Simplicity 2816431

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

25

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

26

Simplicity 2156150SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

27

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 8

0

28

Simplicity 2107120SM

STUD, Pivot

$39.99

$

Usually ships in 2-12 days

0

29

Simplicity 1918196SM

PIN, Quick, 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 173347

LATCH

$

$

Not available

31

Simplicity 2107135SM

SPRING

$34.99

$

Usually ships in 2-12 days

0

32

Simplicity 2821469SM

PIN, Spring, 7/32 x 1

$3.49

$

Usually ships in 2-12 days

0

33

Simplicity 173314

FRAME ASSY

$

$

Not available

34

Simplicity 1729275SM

PIN, King

$18.99

$

Usually ships in 2-12 days

0

35

Simplicity 2106788

CLIP, Spring

$

$

Not available

36

Simplicity 173741

PIN, Hitch

$

$

Not available

37

Simplicity 174778

ROD ASSY

$

$

Not available

38

Simplicity 157194

PIN, End Adj.

$

$

Not available

39

Simplicity 2819262

NUT, Hex, Jam, 1/4-20

$

$

Not available

40

Simplicity 2157631

YOKE, End Adj.

$

$

Not available

41

Simplicity 174246

SUPPORT

$

$

Not available

42

Simplicity 173568

HANDLE ASSY

$

$

Not available

43

Simplicity 2172162SM

BOLT, Eye

$12.99

$

Usually ships in 2-12 days

0

44

Simplicity 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 5025169FS)

$4.49

$

In Stock, Qty 14

0

45

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 13

0

46

Simplicity 2819933

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

47

Simplicity 2823362

NUT, Hex, Lock, 5/16-18

$

$

Not available

48

Simplicity 2106131SM

FORK ASSY

$75.99

$

Usually ships in 2-12 days

0
