1600223 - Simplicity 54" Cultivator Attachment 54" Cultivator Parts Diagram

54" Cultivator Attachment

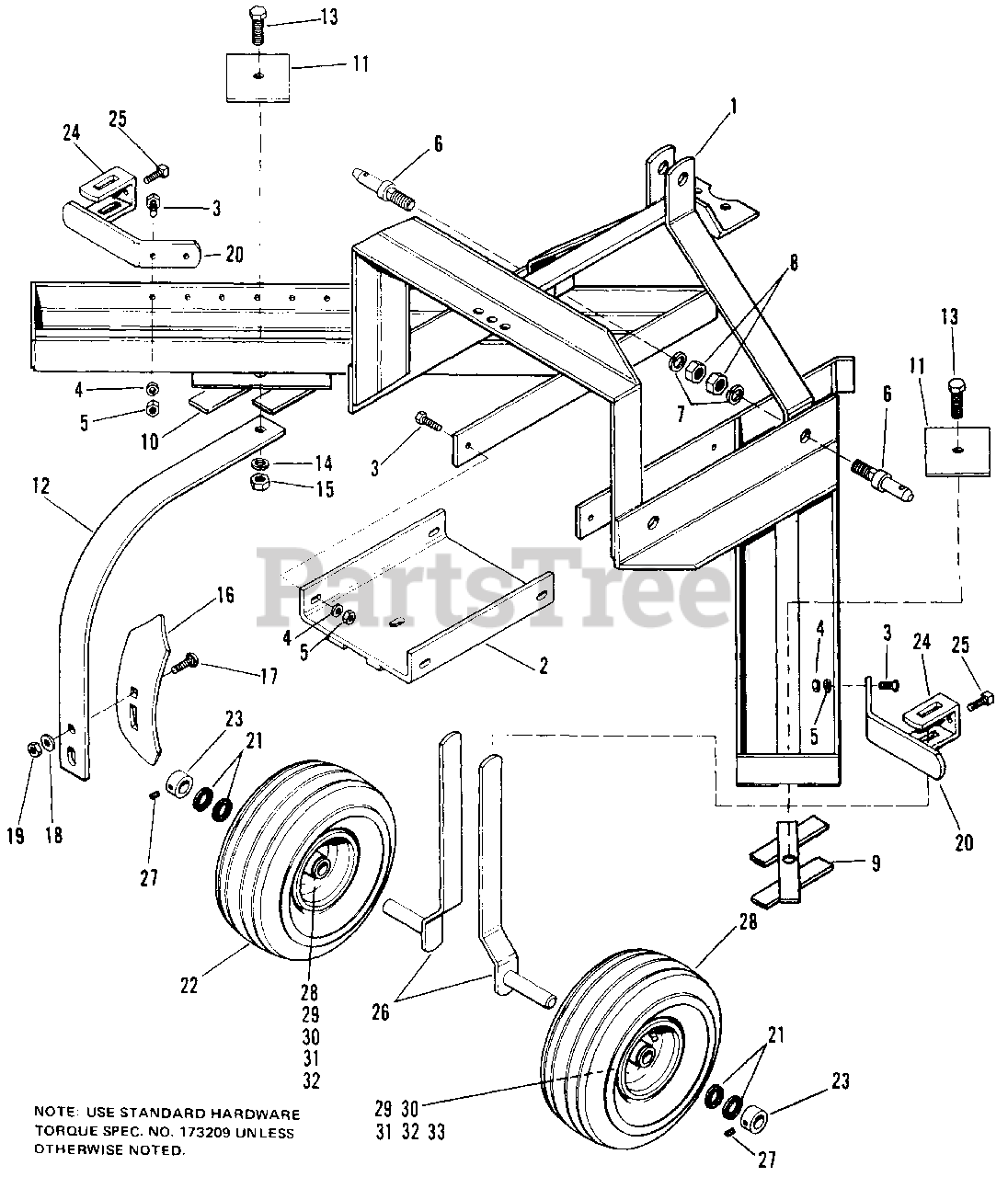

54" Cultivator Parts Diagram

  • Title

1

Simplicity 173908

FRAME, Cultivator

$

$

Not available

2

Simplicity 174666

PLATE ASSY, Support

$

$

Not available

3

Simplicity 2830579

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

5

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

6

Simplicity 172500

PIN, Hitch

$

$

Not available

7

Simplicity 2817373

LOCKWASHER, Spring, 5/8

$

$

Not available

8

Simplicity 2815726

NUT, Hex, Full, 5/8-11

$

$

Not available

9

Simplicity 173896

HOLDER ASSY, Shank, R.H.

$

$

Not available

10

Simplicity 173897

HOLDER ASSY, Shank, L.H.

$

$

Not available

11

Simplicity 173895

PLATE

$

$

Not available

12

Simplicity 174681

SHANK

$

$

Not available

13

Simplicity 923154

CAPSCREW, Hex Hd., 1/2-13 x 1-1/2

$

$

Not available

14

Simplicity 2816966

LOCKWASHER, Spring, 1/2

$

$

Not available

15

Simplicity 2816951

NUT, Hex, 1/2-13

$

$

Not available

16

Simplicity 174663

TEETH, Cultivator

$

$

Not available

17

Simplicity 922114

BOLT, Plow, No. 3, Hd. Reg., 7/16-14 x 1-1/4

$

$

Not available

18

Simplicity 818430

WASHER, Plain, 7/16

$

$

Not available

19

Simplicity 2818213

NUT, Hex, 7/16-14

$

$

Not available

20

Simplicity 174660

SHANK

$

$

Not available

21

Simplicity 174703

SEAL, Felt

$

$

Not available

22

Simplicity 1608379

WHEEL & TIRE ASSY, Front

$

$

Not available

23

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

24

Simplicity 8271023

SHANK, Clamp

$

$

Not available

25

Simplicity 2830535SM

SCREW, Set, Sq. Hd., Cup Pt., 3/8-16 x 1, Gr. 8

$7.49

$

Usually ships in 2-12 days

0

26

Simplicity 174657

STANDARD & SPINDLE ASSY

$

$

Not available

27

Simplicity 2828691

SCREW, Set, Hex, Skt., 5/16-18 x 5/16

$

$

Not available

28

Simplicity 1679712SM

WHEEL, Front

$

$

Not available

29

Simplicity 2163108

TIRE, 4.10/3.50-4

$

$

Not available

30

Simplicity 2163109

TUBE, 4.10/3.50

$

$

Not available

31

Simplicity 2163110

BEARING

$

$

Not available

32

Simplicity 2163111

BEARING, Relief

$

$

Not available

33

Simplicity 8201073

NUT, Special

$

$

Not available
