1600225 - Simplicity 52" Snow Thrower Attachment 52" Snowthrower - Drive Group Parts Diagram

52" Snow Thrower Attachment

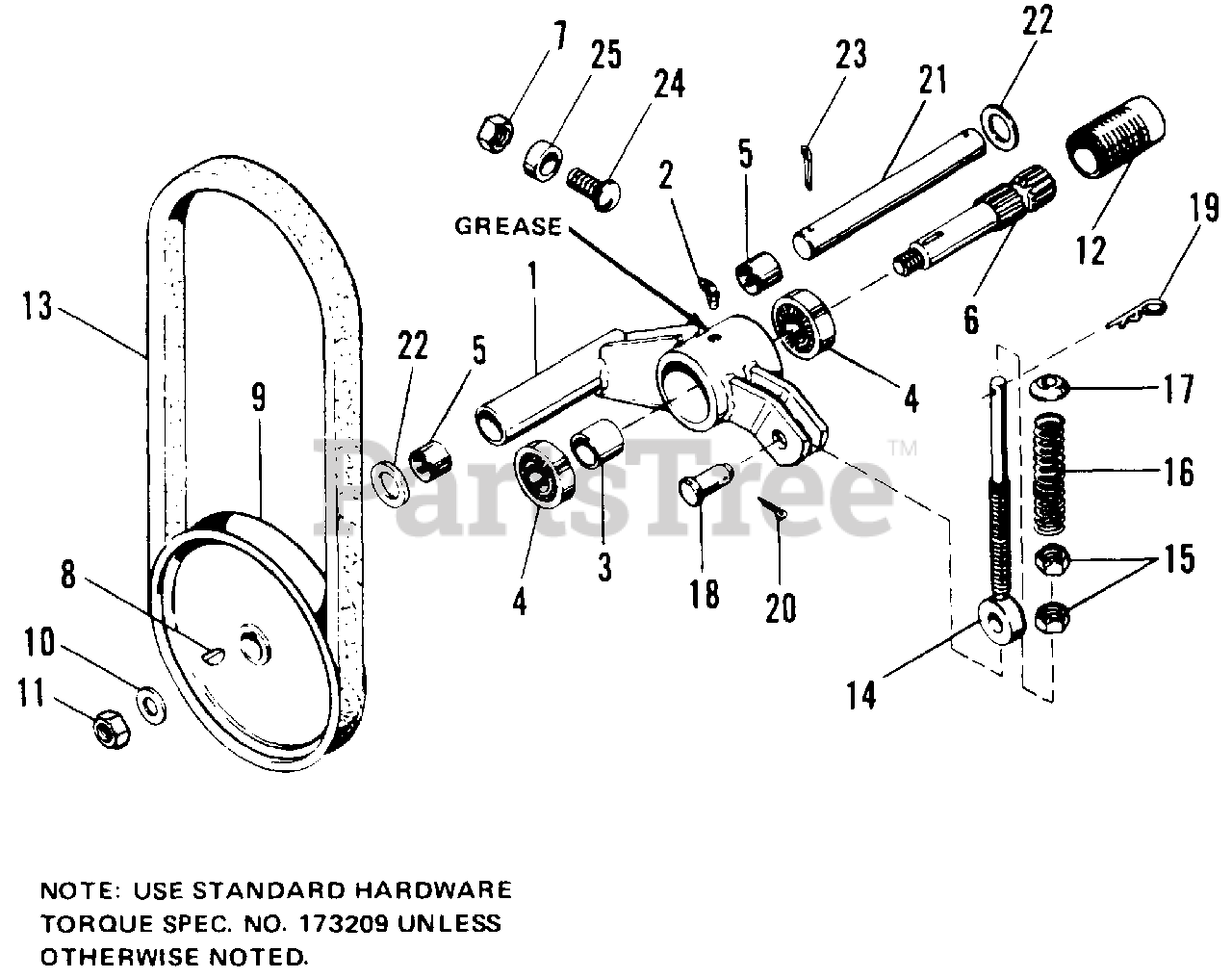

52" Snowthrower - Drive Group Parts Diagram

  • Title

1

Simplicity 174419

HOUSING ASSY, w/Bearings

$

$

Not available

2

Simplicity 2815019SM

FITTING, Lube, Elbow 90, 1/4-20

$4.49

$

In Stock, only 2 left!

0

3

Simplicity 174415

SPACER

$

$

Not available

4

Simplicity 2168078

BEARING

$

$

Not available

5

Simplicity 2154289SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

6

Simplicity 174547

SHAFT, PTO

$

$

Not available

7

Simplicity 922007

NUT, Hex, Jam, Finished, 7/16-14

$

$

Not available

8

Simplicity 2830670SM

KEY, Hi Pro, 3/16 x 3/4

$2.49

$

Usually ships in 2-12 days

0

9

Simplicity 2174371SM

PULLEY

$125.99

$

Usually ships in 2-12 days

0

10

Simplicity 2154325

WASHER

$

$

Not available

11

Simplicity 2824650

NUT, Hex, Full Lock, Jam, 1/2-13

$

$

Not available

12

Simplicity 154327

GUARD, Crankshaft, Ext.

$

$

Not available

13

Simplicity 2174486SM

BELT, "V"

$34.99

$

Usually ships in 2-12 days

0

14

Simplicity 174373

BOLT, Eye

$

$

Not available

15

Simplicity 913901

NUT, Hex, Finished, 7/16-20

$

$

Not available

16

Simplicity 2163103SM

SPRING

$8.49

$

Usually ships in 2-12 days

0

17

Simplicity 171007

SPACER, Clutch

$

$

Not available

18

Simplicity 2154305

PIN, Yolk

$

$

Not available

19

Simplicity 2106787

CLIP, Spring

$

$

Not available

20

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

21

Simplicity 174477

PIN, Clutch, Pivot

$

$

Not available

22

Simplicity 2101022

WASHER

$

$

Not available

23

Simplicity 1923500SM

PIN, Cotter, 1/8 x 1-1/2

$3.99

$

In Stock, only 1 left!

0

24

Simplicity 924801

BOLT, Rd. Hd., Sq. Nk., 7/16-14 x 1

$

$

Not available

25

Simplicity 2175647SM

SPACER

$13.99

$

Usually ships in 2-12 days

0
