1600225 - Simplicity 52" Snow Thrower Attachment 52" Snowthrower - Housing & Drive Group - Diagram 2 Parts Diagram

52" Snow Thrower Attachment

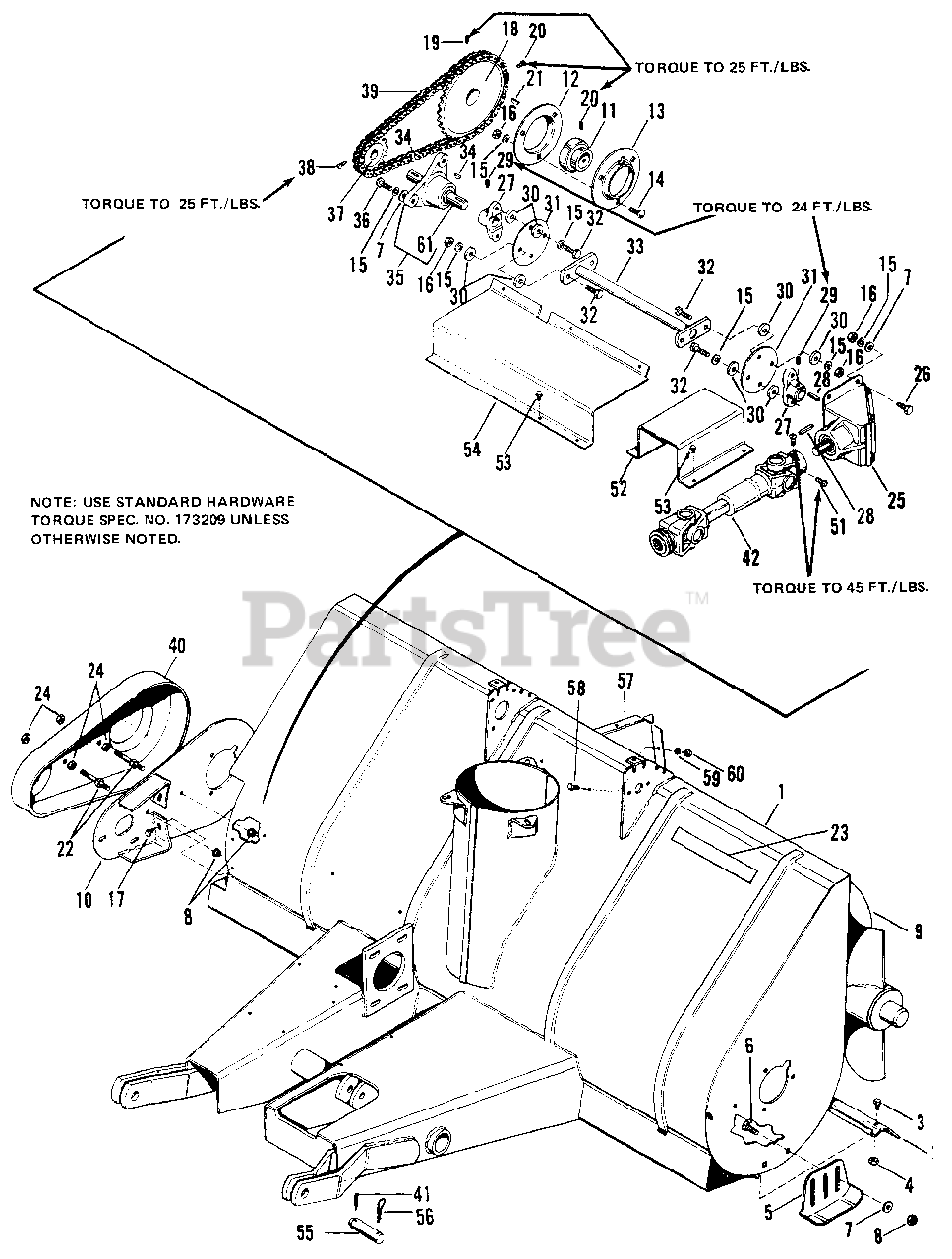

52" Snowthrower - Housing & Drive Group - Diagram 2 Parts Diagram

  • Title

31

Simplicity 2173026SM

COUPLING

$39.99

$

In Stock, only 1 left!

0

32

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

33

Simplicity 174361

SHAFT ASSY, Drive

$

$

Not available

34

Simplicity 2830670SM

KEY, Hi-Pro, 3/16 x 3/4

$2.49

$

Usually ships in 2-12 days

0

35

Simplicity 174369

SHAFT & BEARING ASSY, Flange

$

$

Not available

36

Simplicity 162053

SCREW, Special

$

$

Not available

37

Simplicity 177099

SPROCKET, 14 T

$

$

Not available

38

Simplicity 2828709

SCREW, Set, Sq. Hd., Cup Pt., 5/16-18 x 3/8, Gr. 8

$

$

Not available

39

Simplicity 173247

CHAIN, w/Conn. Link

$

$

Not available

40

Simplicity 173733

GUARD, Chain

$

$

Not available

41

Simplicity 1923500SM

PIN, Cotter, 1/8-1-1/2

$3.99

$

In Stock, only 1 left!

0

42

Simplicity 174548

SHAFT ASSY, Drive

$

$

Not available

51

Simplicity 930588

SCREW, Set. Sq. Hd., Cup Pt., 3/8-24 x 5/8, Gr. 8

$

$

Not available

52

Simplicity 174400

COVER

$

$

Not available

53

Simplicity 2827428

SCREW, Hex, Wshr. Hd., Taptite, 1/4-20 x 3/8

$

$

Not available

54

Simplicity 174401

COVER

$

$

Not available

55

Simplicity 173741

PIN, Hitch

$

$

Not available

56

Simplicity 2106788

CLIP, Spring

$

$

Not available

57

Simplicity 174491

DEFLECTOR

$

$

Not available

58

Simplicity 2819318

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

59

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

60

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

61

Simplicity 2123087SM

SHAFT & BEARING

$139.99

$

Usually ships in 2-12 days

0
