1600288 - Homelite Vacuum Collector Engine Drive Group (3843I02) Parts Diagram

Vacuum Collector

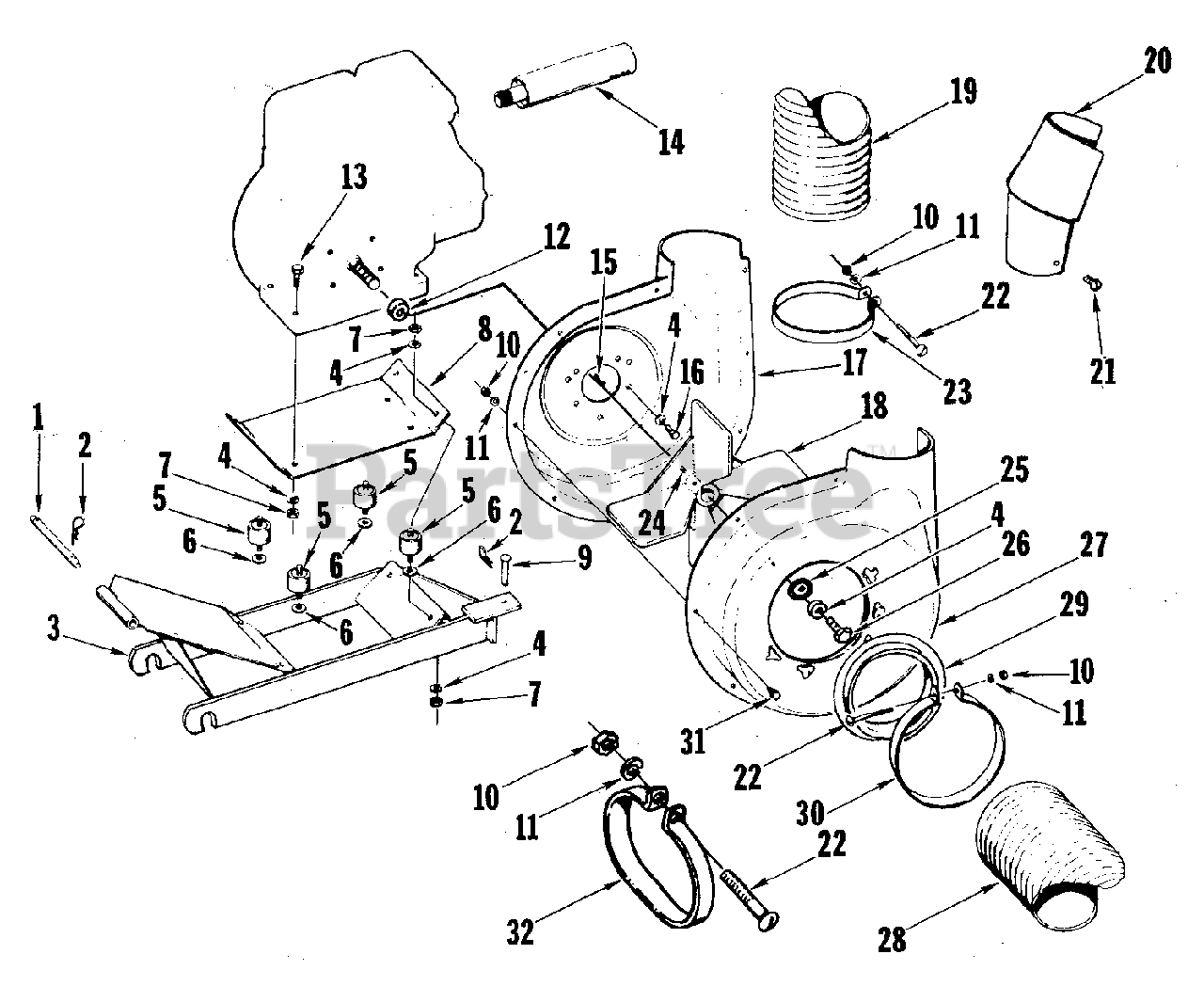

Engine Drive Group (3843I02) Parts Diagram

  • Title

1

Simplicity LM-01562-68

PIN

$

$

Not available

2

Simplicity LM-09181-96

PIN, Quick

$

$

Not available

3

Simplicity LM-16072-70

FRAME ASSEMBLY

$

$

Not available

4

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

5

Simplicity LM-01570-94

CONNECTOR, Cushion

$

$

Not available

6

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

7

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

8

Simplicity LM-01230-95

PLATE, Engine

$

$

Not available

9

Simplicity LM-01180-53

PIN

$

$

Not available

10

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

11

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

12

Simplicity LM-01231-40

SPACER

$

$

Not available

13

Simplicity LM-09199-33

SCREW, Cap, 5/16-18 x 1-1/2

$

$

Not available

14

Simplicity LM-01231-04

MUFFLER

$

$

Not available

15

Simplicity LM-82210-42

KEY

$

$

Not available

16

Simplicity LM-09221-20

SCREW, Cap, 5/16-24 x 5/8

$

$

Not available

17

Simplicity LM-01230-13

HOUSING, Blower (R.H.)

$

$

Not available

18

Simplicity LM-01230-15

FAN ASSEMBLY

$

$

Not available

19

Simplicity LM-01231-43

HOSE, Exhaust

$

$

Not available

20

Simplicity LM-01231-07

DEFLECTOR

$

$

Not available

21

Simplicity LM-09198-04

SCREW, Self Tapping, #10 x 3/8

$

$

Not available

22

Simplicity LM-09288-66

SCREW, Round Head, 1/4-20 x 3

$

$

Not available

23

Simplicity LM-01230-67

CLAMP, Hose

$

$

Not available

24

Simplicity LM-09287-21

SCREW, Set, 5/16-18 x 1/2

$

$

Not available

25

Simplicity LM-01231-44

WASHER

$

$

Not available

26

Simplicity LM-09215-15

SCREW, Cap, 5/16-24 x 3/4

$

$

Not available

27

Simplicity LM-01231-09

HOUSING, Inlet, Half

$

$

Not available

28

Simplicity LM-01231-42

HOSE, Intake

$

$

Not available

29

Simplicity LM-01231-11

FLANGE, Hose

$

$

Not available

30

Simplicity LM-01230-65

CLAMP, Hose

$

$

Not available

31

Simplicity LM-09082-95

SCREW, Cap, 1/4-20 x 1/2

$

$

Not available

32

Simplicity LM-01231-05

CLAMP, Hose

$

$

Not available
