1600288 - Homelite Vacuum Collector Vacuum Collector Adapter Group (3843I01) Parts Diagram

Vacuum Collector

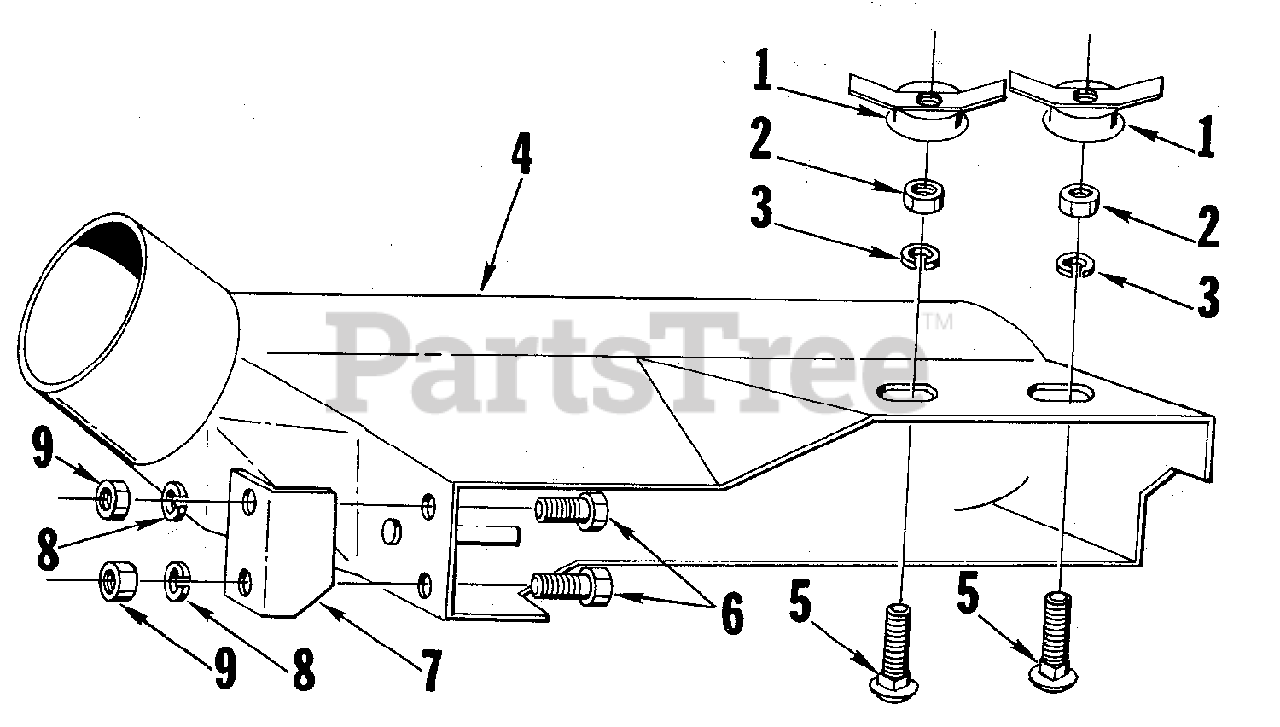

Vacuum Collector Adapter Group (3843I01) Parts Diagram

  • Title

1

Simplicity LM-01231-03

NUT ASSEMBLY

$

$

Not available

2

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

3

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

4

Simplicity LM-16073-05

ADAPTER ASSEMBLY, Vacuum Collector

$

$

Not available

5

Simplicity LM-09205-63

BOLT, Carriage, 5/16-18 x 1

$

$

Not available

6

Simplicity LM-09082-95

SCREW, Cap, 1/4-20 x 1/2

$

$

Not available

7

Simplicity LM-16073-44

PIECE, Closure (32" Mower Only)

$

$

Not available

8

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

9

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available
